ES34169 (EOL)

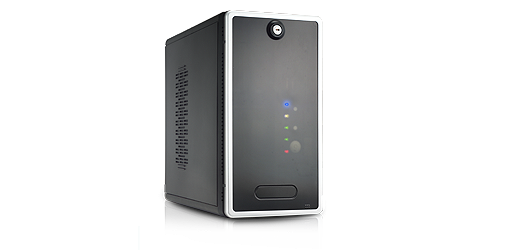

Compact High Storage Capacity Server Chassis

ES34169 is equipped with 4 x 3.5” hot-swap, 1 x internal 2.5” HDDs and slim ODD bays in compact footprint, so it is a ideal solution for either NAS or mini-server.

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

Supports M/B size up to 7"x7"
Built-in 4-port 3Gb/s SAS& SATA backplanes
Optional 4-in-1 card reader and riser card

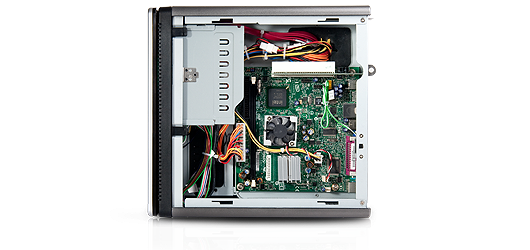

Removable motherboard tray for easy installation
Supports keylock and Kensington security slot
Built-in 120W open frame PSU

規格
下載

主機板尺寸	mini-ITX(6.7"x 6.7")
外觀尺寸 (深 x 寬 x 高)	260x140x260(mm); 10.24"x 5.51"x 10.24"
儲存媒體插槽	Internal 2.5"：1 Slim ODD：1 3.5" Hot-swap：4
電源供應器	120W Open Frame
前置指示燈	Power LED HDD Activity LED LAN Activity LED x 2 Event Warning LED x 1
前置控制鈕	Power On/Off System Reset USB2.0 x 2 Card Reader(Option)
系統安全裝置	Kensington Slot
風扇	Rear: 2x 70mm; Front: 1x 60mm(Option)
擴充槽	1x Low Profile
硬碟熱插拔背板	3Gb/s SAS& SATA
鋼材厚度	0.7mm, SECC
淨重	4.9Kg
毛重	5.9Kg
面板	Included
裝櫃數量(單包)	20': 672(Single Packing) 40': 1,344(Single Packing) 40'H: 1,512(Single Packing)
