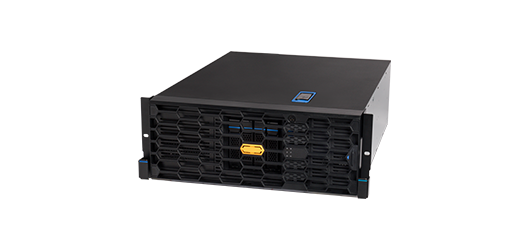

SR115LCooling

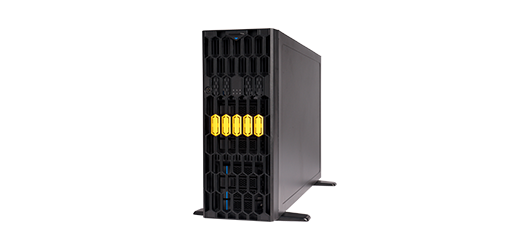

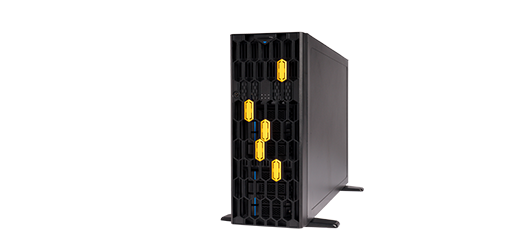

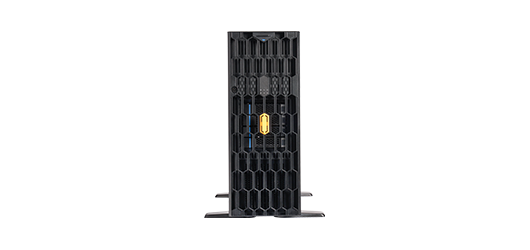

帶液體冷卻的 4U 塔式/機架式工作站伺服器機箱
SR115LCooling是滿足中小型企業工作負載需求的工作站伺服器。 選購的 12cm 液冷模組*可改善 CPU 散熱的解決方案。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • Supports M/B up to E-ATX (12” x 13”).
  • Supports 12Gb/s Mini-SAS HD Expander.
  • Eight PCIe slots support more I/O applications, including double-width GPU card.

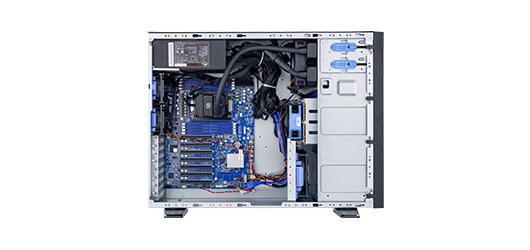

  • For SR115 LCooling, offer another 12cm close loop liquid cooling solution for CPU cooling to replace traditional air cooling solutions with better thermal and acoustic performance.
  • *Due to Chenbro SR115 being an L3 tower server, in the SR115 cooling model, the 12cm liquid cooling module will be shipped separately as a spare part.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • 主機板尺寸 EEB (12" x 13") ; ATX (12" x 9.6") ; Micro ATX (9.6” x 9.6”)
    For single socket CPUCompatible CPU:
    •Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
    •AMD: AM4 / TR4 / sTRX4 / SP3 / sWRX8 / AM5
    外觀尺寸 (深 x 寬 x 高) 602.6 x 175.0 x 438.0 (mm); 23.7" x 6.89" x 17.24"(With bezel)
    儲存媒體插槽 Internal 3.5":1

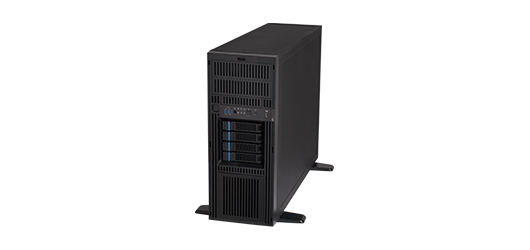

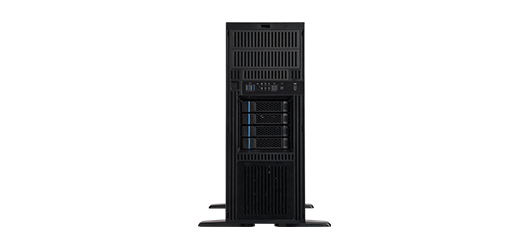

    External 3.5 HDD hot-swap module with 80mm fan, 4500RPM:4
    Internal 3.5 HDD cage with 80mm fan, 4500RPM (option):4
    電源供應器 Single ATX PSU, with liquid cooling module
    前置指示燈 1 x Power Status, 1 x HDD Activity, 2x LAN Activity
    前置控制鈕 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo, 1 x Type C (Option)
    系統安全裝置 Intrusion Switch; Key Lock on the front door

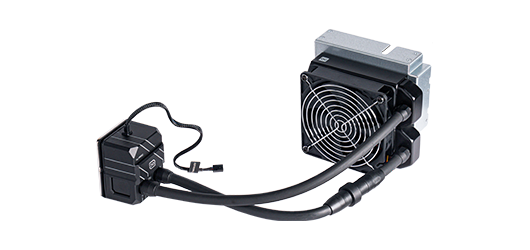

    風扇 Liquid cooling module for CPU cooling
    D34 Pump: Speed 2600RPM
    Radiator: Full Copper 120mm Radiator
    Air cooling:
    •Middle Top: 1 x 120 (T=25mm), PWM, 2700RPM, for liquid cooling radiator
    •Middle Down: 1 x 120mm (T=25mm), PWM, 2600RPM (Option fan for GPU)

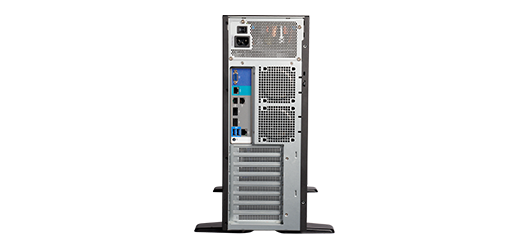

    •Rear: 2 x 80mm (T=25mm), PWM, 4500RPM
    擴充槽 8 x Full Height
    硬碟熱插拔背板 12Gb/s miniSASHD
    毛重 21.32KG
    (12cm Liquid Cooling module*(384-FAN00296S0A0): 3.52 KG)
    材積 7.456
    (12cm Liquid Cooling module*(384-FAN00296S0A0): 0.765)
    裝櫃數量(單包) 20' FCL: 126 pcs / 40' FCL: 252 pcs
    (12cm Liquid Cooling module*(384-FAN00296S0A0):20' FCL: 924 pcs / 40' FCL: 1848 pcs)
  • 類別 規格敘述 版本 大小 下載
    Datasheet SR115LCooling Datasheet v1.0 365.8 KB
  • 產品類別 料號 規格敘述 支援
    Fan
    384-FAN00296S0A0
    384-FAN00296S0A0For SR115 DLC*
    *Due to Chenbro SR115 being an L3 tower server, in the SR115 cooling model, the 12cm liquid cooling module will be shipped separately as a spare part.
    Click Part. No# to view item picture
  • 訂購碼
    384-FAN00296S0A0
