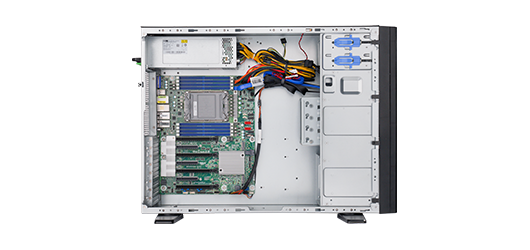

SR115
4U主流工作站機架式塔式伺服器機箱
SR115是通用服務器，也是定位作為工作站來滿足中小型企業的需求企業。 其靈活的工作站部署可以支持更多的應用程序，從低到高的工作負載。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益

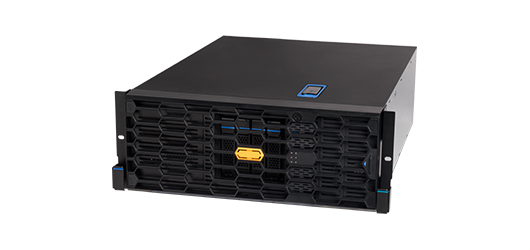

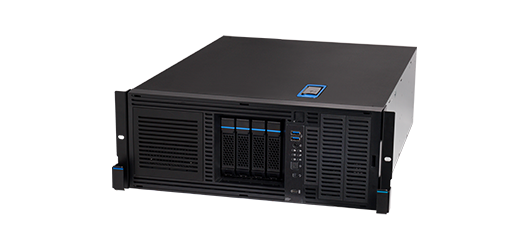

  • 4U tower and rackable supports rack kit option: ear handle, slide rail, and CMA

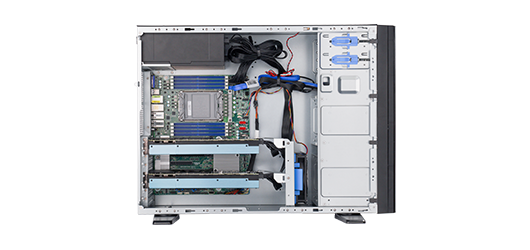

  • Eight PCIe slots support more I/O applications, including double-width GPU card
  • Flexible PSU support PS2 or CRPS
  • Multi-Storage: Internal or external storage kit support 2.5” or 3.5” HDD

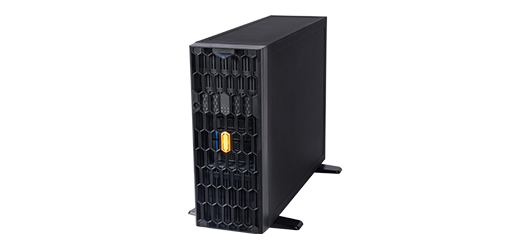

  • Security bezel and user-friendly toolless side cover
  • Coverage server and workstation applications
  • Lower acoustic
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

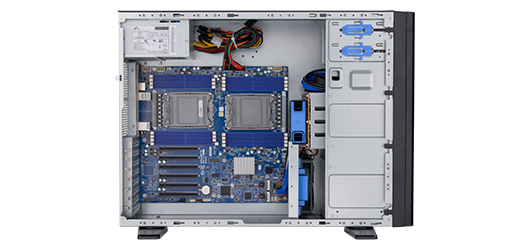

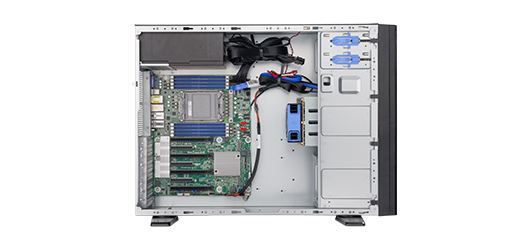

  • 主機板尺寸 EEB (12" x 13") ; ATX (12" x 9.6") ; Micro ATX (9.6” x 9.6”)
    外觀尺寸 (深 x 寬 x 高) 602.6 x 175.0 x 438.0 (mm); 23.7" x 6.89" x 17.24"(With bezel)
    儲存媒體插槽 External: 2 x 5.25” and 1 x 3.5”：
    Storage: Option, max to 2pcs：
    4-Bay internal HDD cage with 80mm fan, 4500RPM：
    4-Bay external HDD hot-swap module with 80mm fan, 4500RPM：

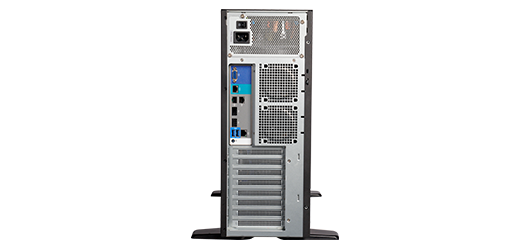

    電源供應器 Single ATX PSU

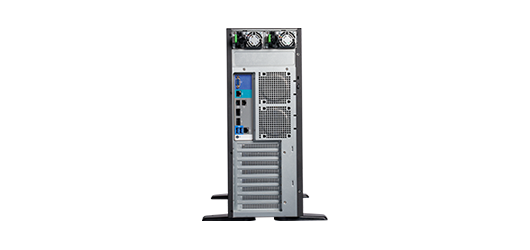

    Redundant CRPS 1+1 (* 1200W support 2 x GPU)
    前置指示燈 1 x Power Status, 1 x HDD Activity, 2x LAN Activity
    前置控制鈕 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo, 1 x Type C (Option)
    系統安全裝置 Intrusion Switch; Key Lock on the front door
    風扇 2x 80mm (T=25mm), PWM, 4500RPM, rear, option 1x 120mm (T=25mm), PWM, 2600RPM, middle, option
    擴充槽 8 x Full Height
    硬碟熱插拔背板 12Gb/s miniSAS-HD, option
    淨重 17.55KG
    毛重 21.32KG
    材積 6.934
    裝櫃數量(單包) 20' FCL: 126 pcs / 40' FCL: 252 pcs
  • 類別 規格敘述 版本 大小 下載
    Datasheet SR115 Datasheet v.1.2 v1.2 765.7 KB
  • 產品類別 料號 規格敘述 支援

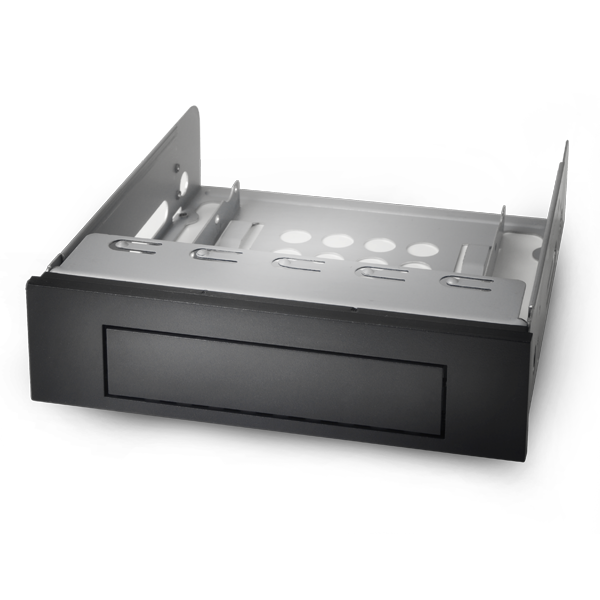

    5.25” to 3.5” Kit
    SK41101H0110879

    5.25” to 3.5” Kit: 1 x 5.25" Bay to 1 x Internal 3.5" HDD Bay, 48pcs/carton

    SK41101H01*10879
    Bracket
    384-MEC01161B0A0    		 GPU card fix bracket

    AS'Y COMPONENT,SR1156901,BRACKET,BULK,144PCS/CTN,SR1156901q015A00,GPU BRACKET

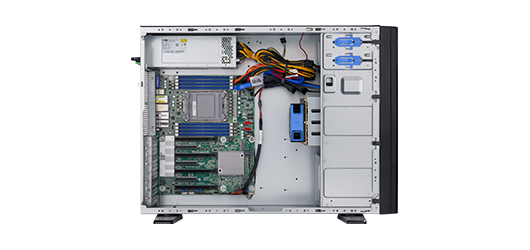

    CPU & Fan support Bracket in the middle
    384-MEC01160B0A0

    CPU & Fan support Bracket in the middle

    384-MEC01160B0A0；AS'Y COMPONENT,SR1156901,SUPPORT BRACKET,BULK,40PCS/CTN,SR1156901q019,GPU & FAN SUPPORT BRACKET
    Fan

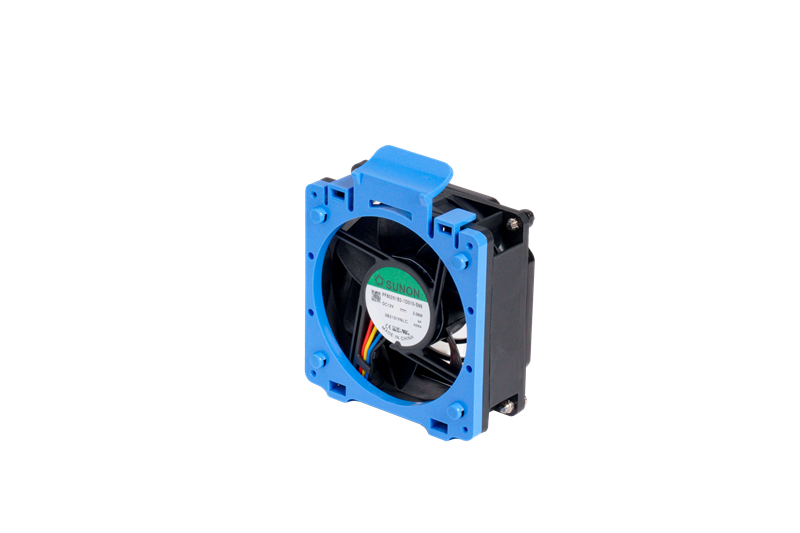

    384-FAN00114B0A0    		 80mm (T: 25mm), 4500RPM fan kit for rear (max to 2 pcs)

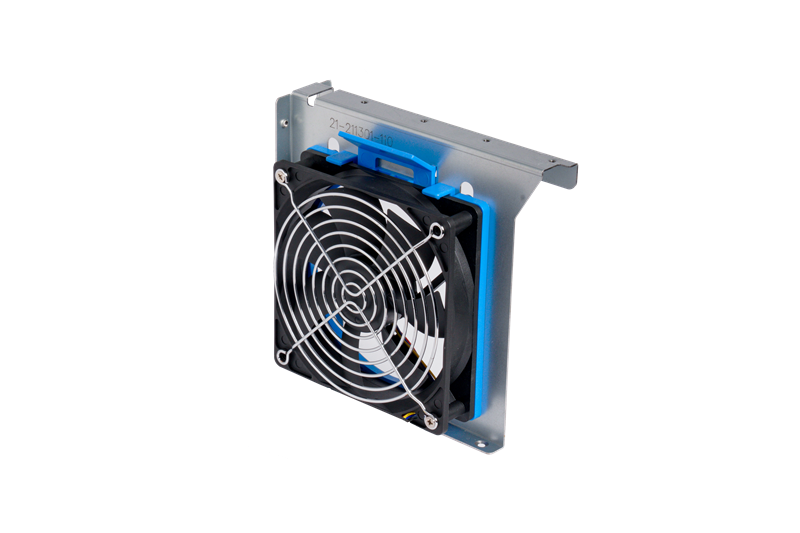

    Fan
    384-FAN00118B0A0

    120mm internal fan kit support 2600RPM

    AS'Y COMPONENT,SR1156901,FAN+FAN MODULE,BULK,48PCS/CTN,SR1156901q013A00,120FAN


    HDD Cage
    384-MIX00411B0A0    		 Internal 4-Bay HDD cage

    w/ fan： 384-MIX00411B0A0


    HDD Module
    384-PCB000001BA0

    4-Bay HDD hot-swap module， toolless HDD TRAY

    w/o fan：384-PCB000001BA0
    HDD Module
    384-PCB00045B0A0

    4-Bay HDD hot swap module，lock screw HDD TRAY

    w/o fan：384-PCB00045B0A0
    HDD Module
    384-PCB00046B0A0

    4-Bay HDD hot swap module， toolless HDD TRAY

    w/ fan： 384-PCB00046B0A0
    HDD Module
    384-PCB00047B0A0

    4-Bay HDD hot swap module，lock screw HDD TRAY

    w/ fan： 384-PCB00047B0A0

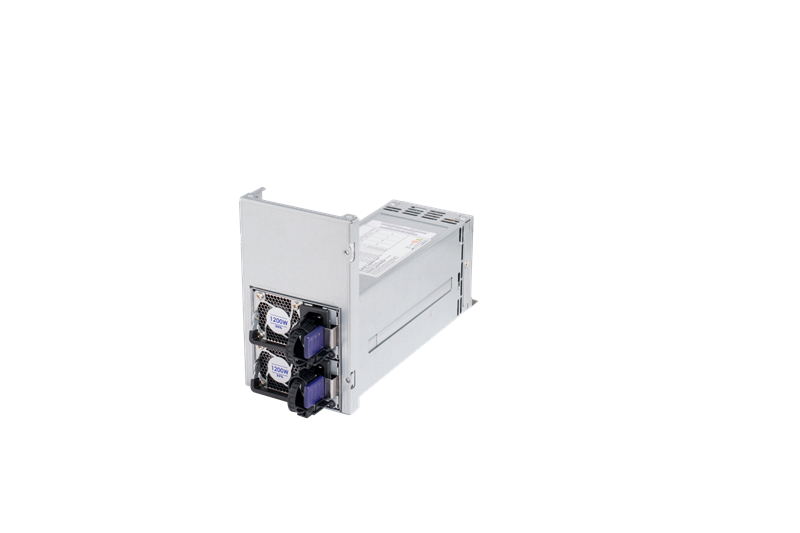

    Power Supply

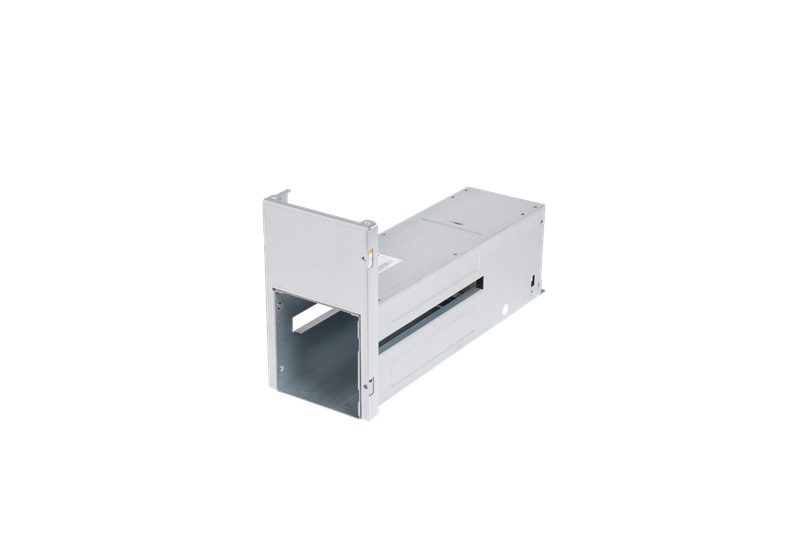

    384-PSU00016B0A0    		 FSP 2U CRPS 210mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q012A00,FSP-FC210 1200W 210MM
    Power Supply
    384-PSU00017B0A0

    FSP 2U CRPS 210mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q012A00,FSP-FC210,800W,210MM
    Power Supply
    384-PSU00018B0A0
    Acbel 2U CRPS 220mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q010A00,ACBEL,FSL026-7HBG,1200W,220MM
    Power Supply
    384-PSU00019B0A0

    Acbel 2U CRPS 220mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q010A00,ACBEL,FSL025-7HCG,800W,220MM


    Power Supply
    384-PSU00020B0A0    		 Acbel 2U CRPS 265mm support 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q011A00,ACBEL,FSG064-7HCG,1200W,265MM
    Click Part. No# to view item picture
  • 訂購碼
    SR1156901 01*929020
    SR1156901 01*929022
    SR1156901 01*929025
    SR1156901 01*929179
