Chenbro - 產品

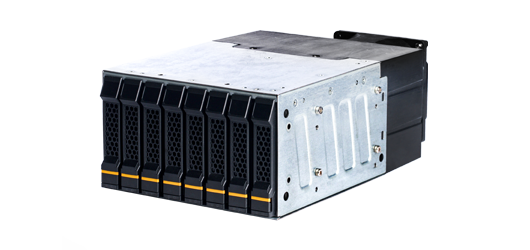

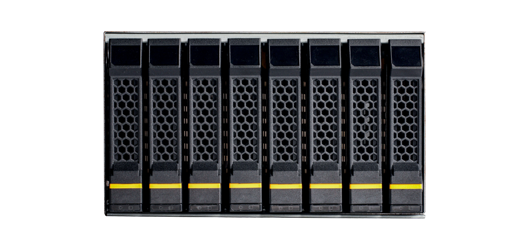

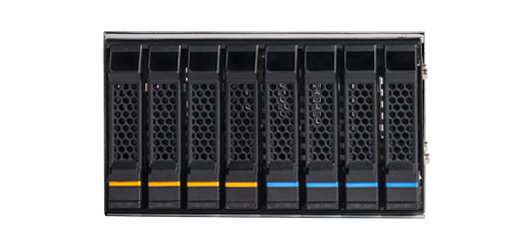

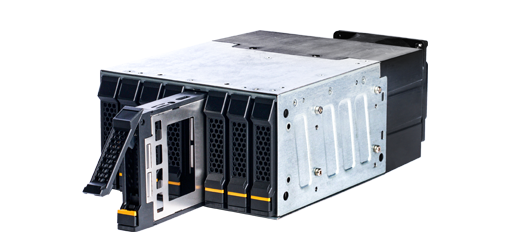

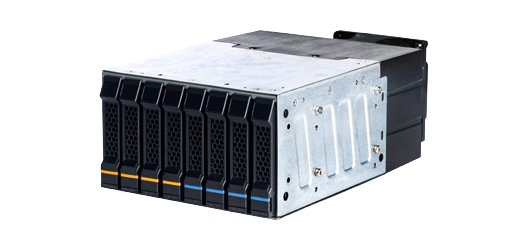

SK62801

8 bay 2.5 吋熱插拔硬碟，附 PCIE 3.0 或 5.0 背板

SK62801 設計有標準安裝孔，可將 2 x 5.25 吋硬碟tray轉換為 8 x 2.5 吋 NVMe/SATA 熱插拔硬碟Tray。

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

Support three types of backplanes: Gen3/4T4S/Gen5, enabling compatibility with different motherboards to cater to a broader range of application scenarios.
Suggest using Chenbro tower server SR113 and SR115, easy to install

Back-mounted 80mm fan to deliver optimized cooling performance
HDD failure and activity indicators on each hot-swap drive carrier
Compatible Chassis: RM41300, RM42300, SR113, SR115

Specification
Download
Accessory
Compatibility
Order Information

外觀尺寸 (深 x 寬 x 高)	250.7mm x 146mm x 84.1mm; 9.87" x 5.75" x 3.31"
儲存媒體插槽	8 x 2.5" HDD Tray
風扇	80 x 38 (1)
Material	SGCC
淨重	1.35 kg
硬碟熱插拔背板	SK62801 (NVME N8 Gen3): 8Gbps NVME Gen3 SK62801 (4T4S Gen3): 4T4S 8G NVME Gen3 + 12G SAS/SATA SK62801 (NVME N8 Gen5): 32Gbps NVMe Gen 5
接頭 (連接硬碟)	SK62801 (NVME N8 Gen3): 8 x SFF 8639 (SAS 68P) SK62801 (4T4S Gen3): 4 x SFF 8639 (SAS 68P)/ 4 x SFF 8680 (SAS 29P) SK62801 (NVME N8 Gen5): 8 x SFF 8639 (SAS 68P)
接頭 (連接控制器)	SK62801 (NVME N8 Gen3): 8 x SFF 8621 (OCulink4i) SK62801 (4T4S Gen3):4 x SFF 8621 (OCulink4i)/ 2 x SFF 8643 (Mini SAS HD 4i) SK62801 (NVME N8 Gen5): 8 x SFF-TA-1016 (MCIO 4i)
包裝內含	SK62801 (NVME N8 Gen3): 1 x SK628, 1 x Power extend Cable, 1x Screw PKG SK62801 (4T4S Gen3): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG SK62801 (NVME N8 Gen5): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG
訂購碼	SK62801
線材選項	Due to the variation in MB connector type, it will not include a cable option
