RM43736

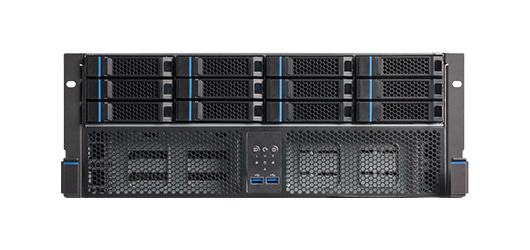

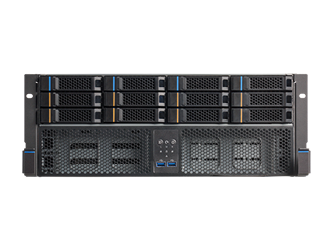

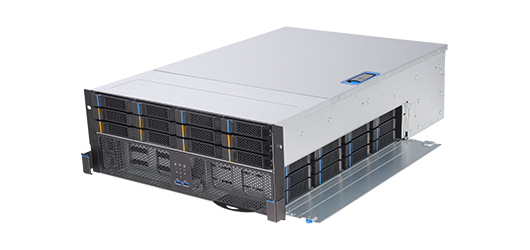

4U 36-bay高密度三載存儲伺服器機箱

4U 高密度三載存儲伺服器機箱設計，具有 24 x 3.5” 雙側邊存取和 12 x 3.5” 正面存取熱插拔 HDD 和 EEB 主板支持數據存儲和高性能應用

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

Ultra-dense 4U storage server chassis optimized for warm and cold data tiering

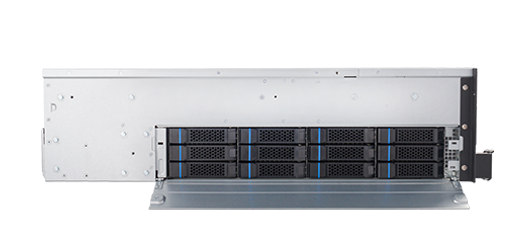

Innovative Tri-load design for 24 x 3.5” side access and 12 x 3.5” front access hot-swap HDDs
Front storage up to eight SAS/SATA/NVMe Gen 4 drives and rear optional two-bay NVMe Gen 4 SSD module

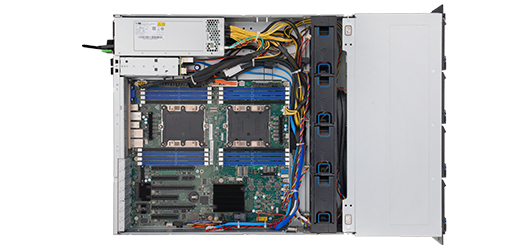

Flexible motherboard support to EATX, ATX, microATX

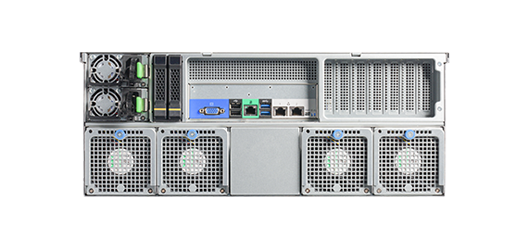

4+4 Redundant 80mm fan module support hot-swappable

Specification
Download
Accessory
Compatibility
Order Information

主機板尺寸	EATX(12" x 13 "), ATX (12" x 9.6"), mATX (9.6" x 9.6“)
外觀尺寸 (深 x 寬 x 高)	660mm x 438mm x 175mm ; 26’’ x 17.2’’ x 6.9"
儲存媒體插槽	12 Bay 3.5" HDD hot swap module, front / left / right：3 *Option: 2 Bay 2.5" HDD hot swap module, rear：
電源供應器	Redundant CRPS (1+1), 1200W or 1600W(80+Platinum)
前置指示燈	1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Activity, 3 x HDD Status (L/M/R), 1 x System Status
前置控制	1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
系統安全裝置	Intrusion Switch
風扇	Middle: 80mm (T:38mm) fan module with fan bar -Performance: 4 x 14400RPM, PWM, Hot-swap -Mainstream: 4 x 11000RPM, PWM, Hot-swap Rear: 80mm (T:38mm) fan module, 4 x 11000 RPM, PWM, Hot-swap
擴充槽	7 x Low Profile or 3 x Full Height (Option)
硬碟熱插拔背板	12 port 12Gbps SAS Expander Backplane, front / left / right 12 port 8T4S Gen 4 Backplane, front *Option: -2 Port 12Gbps SAS/SATA, rear -2 Port NVMe Gen3, rear -2 Port NVMe Gen4, rear
淨重	25KG /PCS
毛重	28.64KG/CTN
材積	5.34
裝櫃數量(單包)	20' FCL: 132pcs / 40' FCL: 276pcs (Single Packing + Pallet)

產品類別	料號	規格敘述	支援
Cable	126-14512-3021A0	Cable, Mini-SAS HD to mini-SAS HD, 850mm
Cable	126-23612-3000A0	miniSAS-HD to miniSAS-HD cable, 600mm
Cable	126-23811-3003A0	Display cable for Super Micro, 500mm
Cable	126-25112-3008A0	Slim SAS 8i to dual 4i cable
Cable	126-30000-0136A0	Slim SAS 4i to 4i cable
CMA	84H349010-006	Cable Management Arm (CMA)
Fan	384-FAN00006BA0	80mm fan module (Middle), 11000RPM, hot swap, spare
Fan	384-MIX00275B0A0	80mm fan module (Rear), 11000RPM, hot swap, spare
HDD Cage	384-23701-3116B0	2-bay 2.5" HDD Cage, w/2-port 12Gb/s SATA&SAS Backplane , w/ 2 x 2.5" HDD Tray(TOOL-LESS)
NVMe Gen4 SSD module	384-PCB00053B0A0	2-Bay NVMe Gen4 SSD module (Rear)
Power Supply	132-41200-0700A1	PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module

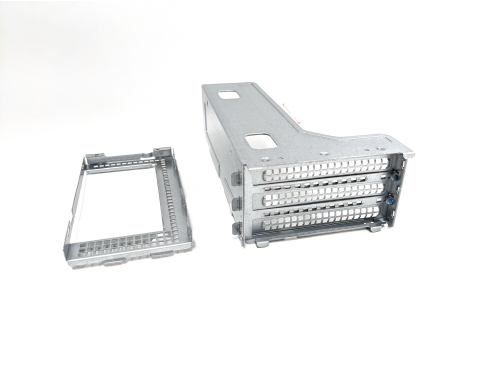

Riser Kit	384-23812-3112A0	PCIe 3.0 x16 Riser Kit (EN62368)
Slide Rail	384-RAL00001BA0	Slide rail kit can support CMA - P2P: 26" to 36.7", Traveling Distance 28.5", tool-less
