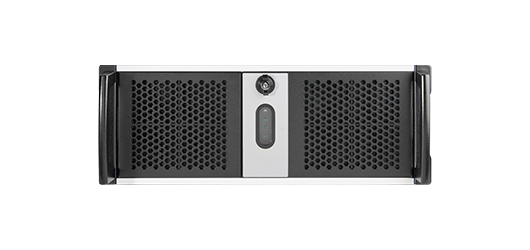

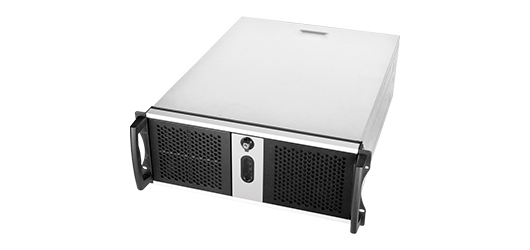

RM42300
4U高性能工業伺服器機箱
配備完全隔離的防振驅動器籠、防塵過濾器和可靠的附加卡座，使其成為高性能 IPC 的理想選擇。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益
  • Supports M/B up to 12” x 9.6”
  • Available for rackmount and stand-alone installation
  • Dedicated 80 mm fan for HDD cooling

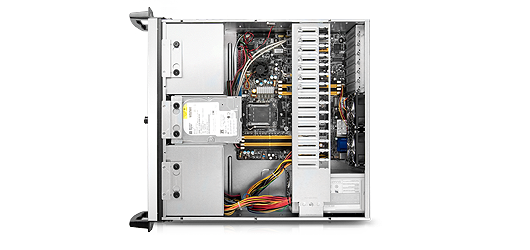

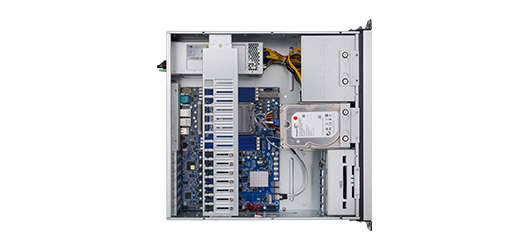

  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Card retainer to hold low profile and full height add-on cards
  • Front 120mm fan with filter for add-on card cooling
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Supports 1-door or 2-door front bezel configuration
  • Supports 1200W (1+1) 2U CRPS module (w/ housing and PDB)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • 主機板尺寸 ATX (12” x 9.6”)
    外觀尺寸 (深 x 寬 x 高) 465.2 x 430.0 x 176.0 (mm)
    18.32” x 16.93” x 6.93”
    儲存媒體插槽 External 3.5"：1
    External 5.25"：3
    Internal 3.5"：4
    Slim ODD：1
    電源供應器 -PS/2 single
    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    前置控制 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    系統安全裝置 Intrusion Switch (Option)
    Key Lock on Front Door
    風扇 Front: 1 x 120 mm (T=25 mm), PWM,
    Rear: 2 x 80 mm (T=25 mm) (Option)

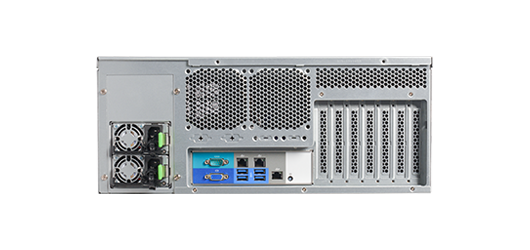

    擴充槽 7 x Full Height
    硬碟熱插拔背板 N/A
    淨重 9.5 kg/20.93 lb
    毛重 12.3 kg/27.09 lb
    面板 Option
    材積 3.44
    裝櫃數量(單包) 20': 192 ,
    40': 432 ,
    40'H: 504 (Single + Pallet)
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM42300 datasheet v1.4 v1.4 709.5 KB
    Datasheet RM42300 Datasheet V1.3 7.4 MB
    User Manual RM42300 Quick Installation Guide V1.1 443.4 KB
  • 產品類別 料號 規格敘述 支援
    Bezel
    84H341310-004    		 Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel
    84H341310-005    		 Front Bezel, 4U, 2-door, RM41300/RM42300
    Bracket

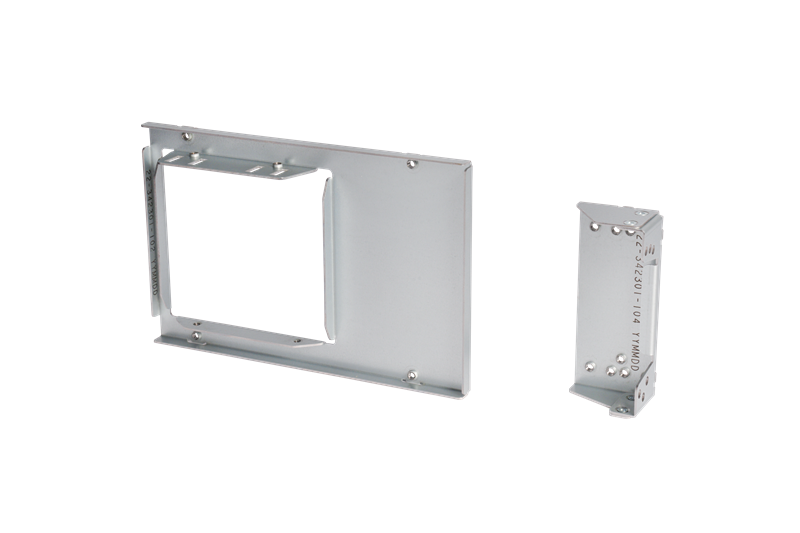

    384-MIX00438B0A0    		 PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    Drive Cage
    84H342310-003    		 Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012    		 Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058    		 80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws
    Fan
    84H342310-004    		 FAN Module, 120x25mm,AVC
    Foot Stand
    84H342210-002    		 Foot stand, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101    		 Foot stand, 4pcs/set, w/cabinet ear, for RM41300/RM42300
    PCB

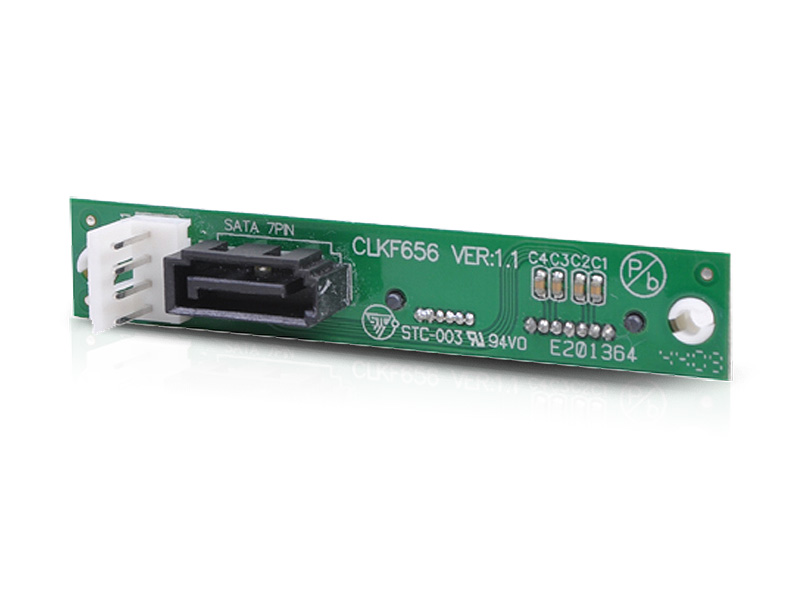

    66H243131-001    		 Adapter, SATA to SATA, For Slim ODD
    PCB

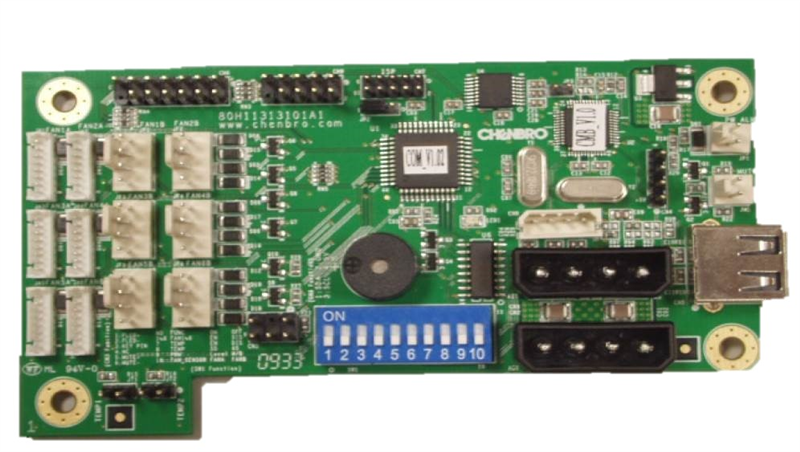

    84H331410-025    		 6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PCBA
    84H331410-025    		 6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PSU module+bracket
    384-PSU00024B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 800W FSL025-7HCG
    PSU module+bracket
    384-PSU00028B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 550W FSK011-7HHG
    Rear Window
    84H342310-005    		 Rear window, 15-slot, w/slot brackets, RM41300/RM42300
    Slide Rail
    84H323610-034    		 26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
