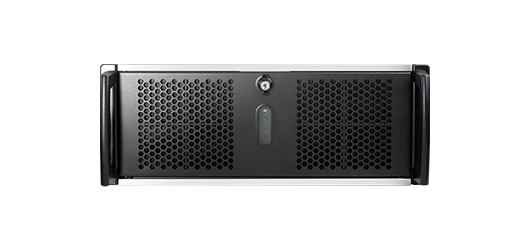

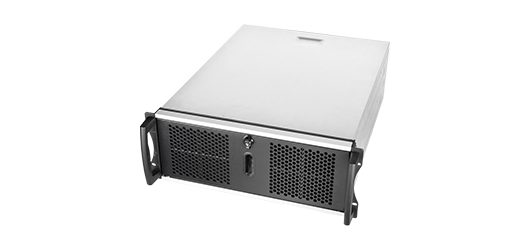

RM41300
4U高性能工業伺服器機箱
配備完全隔離的防振驅動器籠、防塵過濾器和可靠的附加卡座，使其成為高性能 IPC 的理想選擇。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益
  • RM41300 8-Slot upgrade to support CRPS & 2 GPU*

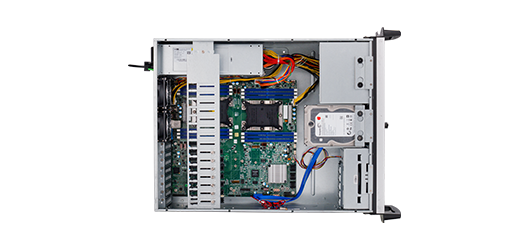

  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Dedicated 80mm fan for HDD cooling
  • Card retainer to hold low profile and full-height add-on cards (RM41300)
  • Supports stand-alone installation via an optional kit (RM41300)
  • Supports 1-door or 2-door front bezel configuration (RM41300)
  • *With an 8-slot rear window, if you want to install a GPU card whose TDP is up to 320W, please give a space between each card for better thermal performance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • 主機板尺寸 EATX (12" x 13")
    外觀尺寸 (深 x 寬 x 高) With front bezel: 563.7 x 430.0 x 176.0 (mm)
    Without front bezel: 543.7 x 430.0 x 176.0 (mm)
    儲存媒體插槽 External 5.25"：3
    External 3.5"：1
    Internal 3.5"：4
    Slim ODD：1
    電源供應器 -PS/2 single
    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    前置控制 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    系統安全裝置 Intrusion Switch (Option)
    Key Lock on Front Panel
    風扇 Front: 1 x 120 mm (120 x 25 mm), PWM
    Rear: 2 x 80 mm (Option)

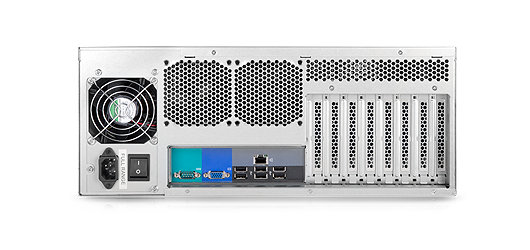

    擴充槽 7 x Full Height and Full Length (*RM41300)
    8 x Full Height and Full Length (*RM41300G)
    硬碟熱插拔背板 N/A
    淨重 12.5 kg/27.53 lb
    毛重 15.5 kg/34.14 lb
    面板 Option
    材積 4.03
    裝櫃數量(單包) 20’: 245, 40’: 524, 40’H: 592(single packing)
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM41300 Datasheet V1.2 11.5 MB
    User Manual RM41300 Quick Installation Guide V1.1 454.3 KB
    User Manual RM41300G Quick Installation Guide V1.1 290.8 KB
  • 產品類別 料號 規格敘述 支援
    Adapter

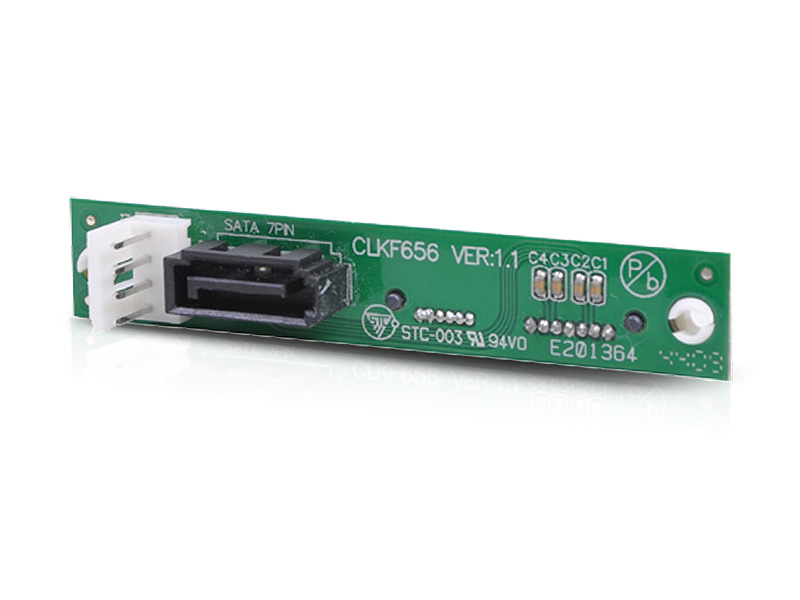

    66H243131-001    		 Adapter, SATA to SATA, For Slim ODD
    Bezel

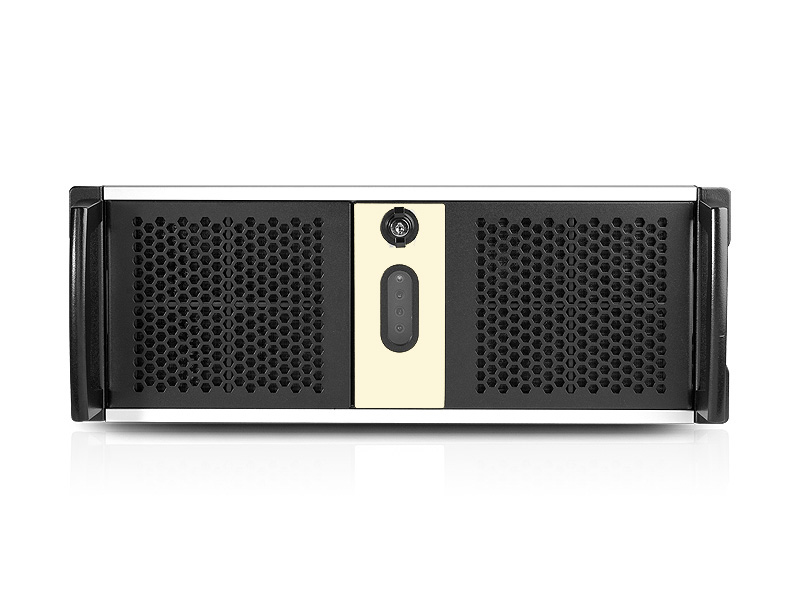

    84H341310-004    		 Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel

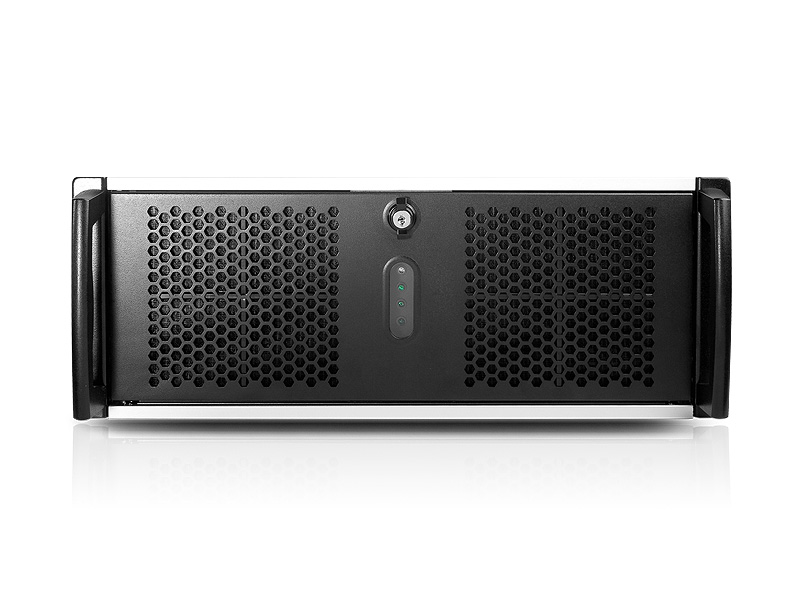

    84H341310-005    		 Front Bezel, 4U, 2-door, RM41300/RM42300

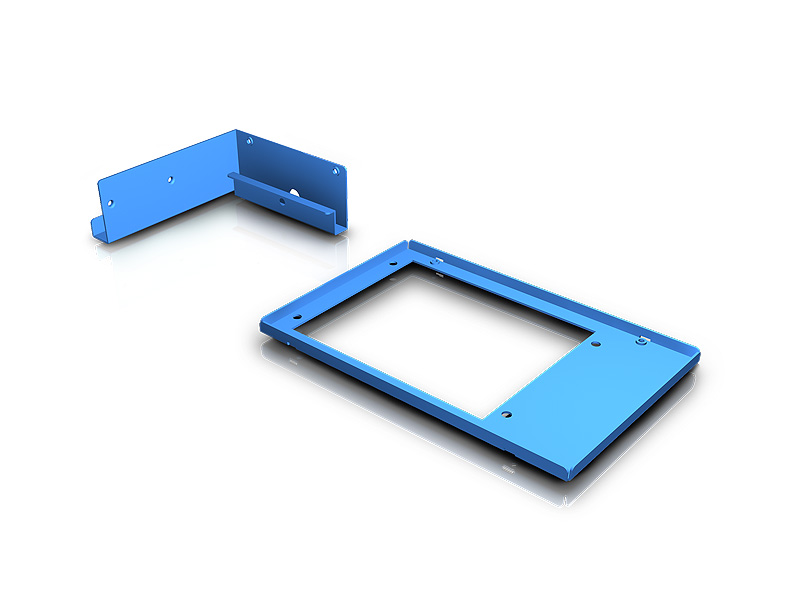

    Bracket
    84H341310-011    		 Bracket, PSU, 4U,  For C2W-5620V / C2W-5820V
    Bracket
    84H341310-027    		 Bracket, PSU, 4U, For R2IS7651A-G/R21S7871A-G
    Drive Cage

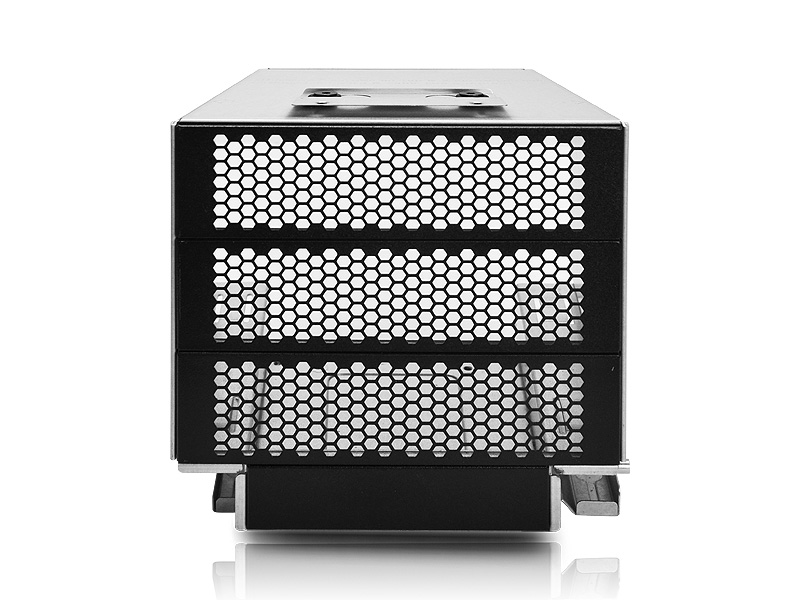

    84H342310-003    		 Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012    		 Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058    		 80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws

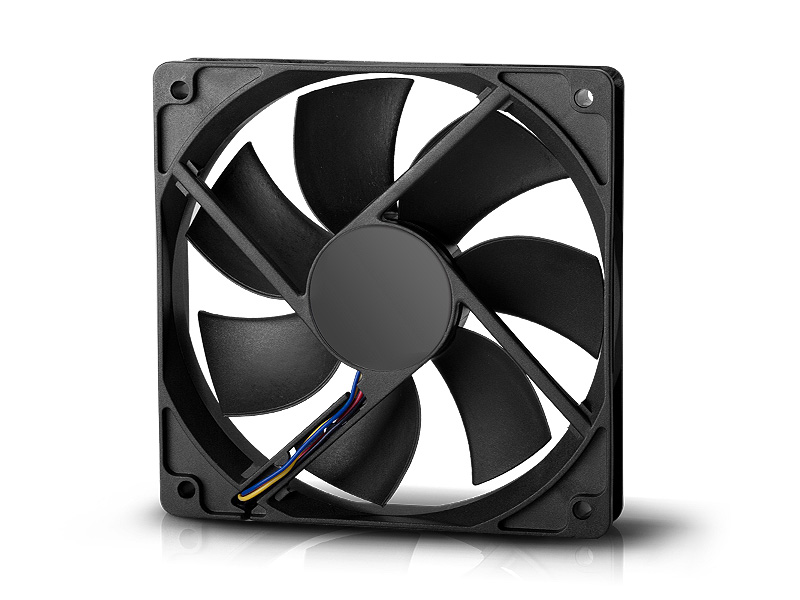

    Fan
    84H342310-004    		 FAN Module, 120x25mm,AVC

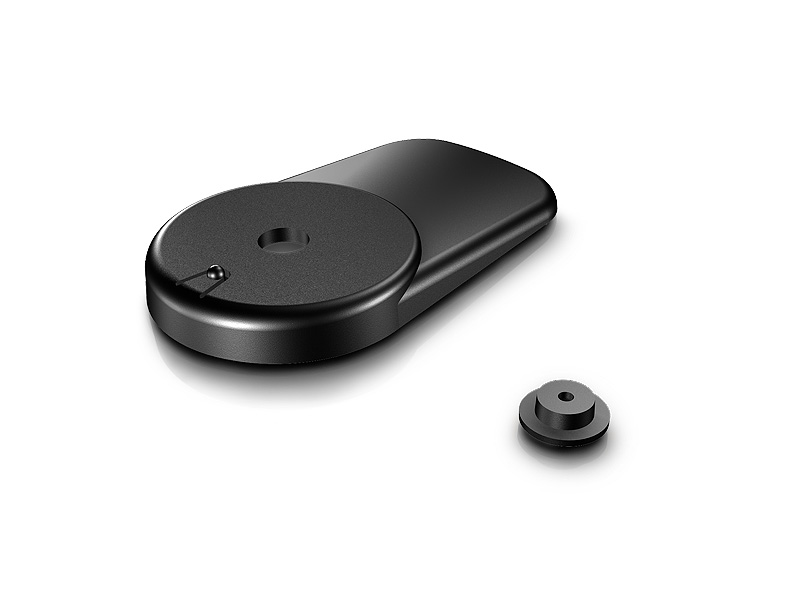

    Foot Stand
    84H342210-002    		 Foot stand, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101    		 Foot stand, 4pcs/set, w/cabinet ear, for RM41300/RM42300

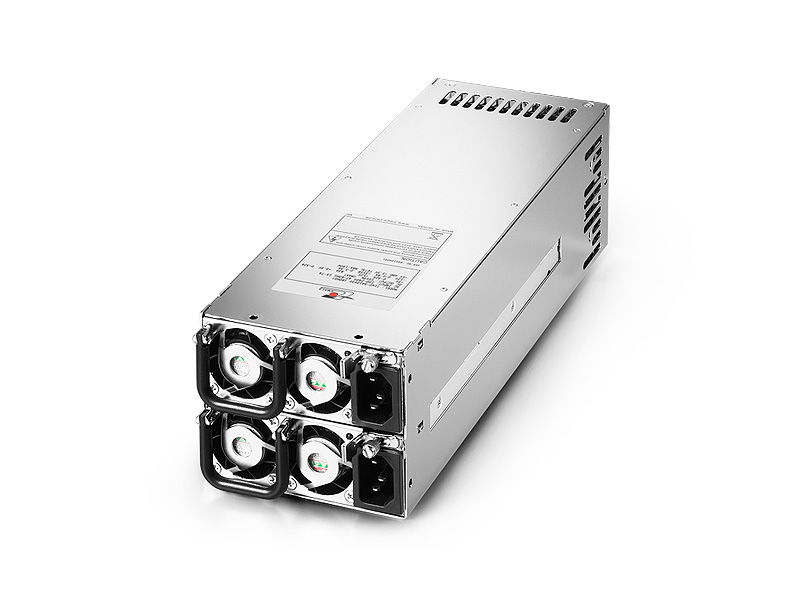

    Power Supply
    132-20650-0701C1    		 PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply
    32H2062000202    		 PSU, 620W,1+1 Redundant, C2W-5620V, PM Bus V1.1
    Power Supply
    32H2065001101    		 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000205    		 PSU, 820w, 1+1 Redundant, C2W-5820V, PM Bus V1.1
    PSU bracket
    384-MIX00430B0A0    		 PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    PSU module+bracket
    384-PSU00025B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 1200W short version FSL026-7HBG
    PSU module+bracket
    384-PSU00026B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 1200W long version R2CU5122A
    Rear Window

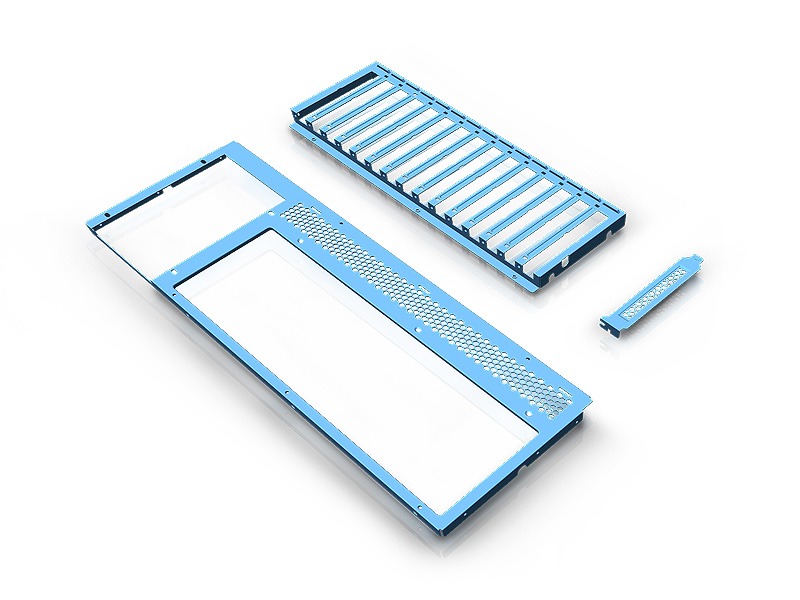

    84H342310-005    		 Rear window, 15-slot, w/slot brackets, RM41300/RM42300
    Slide Rail
    84H323610-034    		 26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
    Click Part. No# to view item picture
