RM25324

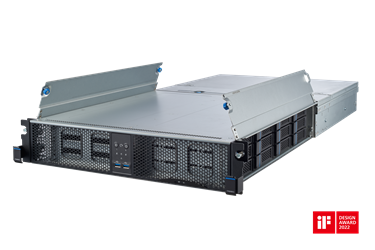

2U 24-Bay高密度雙載儲存伺服器機箱
2U 側邊存取之雙載高密度儲存伺服器機箱，支援24個3.5吋側邊存取硬碟抽取槽及ATX主機板，適合佈署在資料儲存、分享或備援等應用上。
比較
特點與利益
- Ultra-dense 2U storage server optimized for warm and cold data tiering

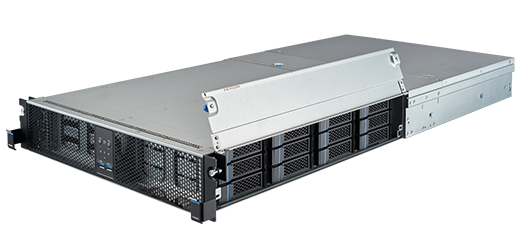

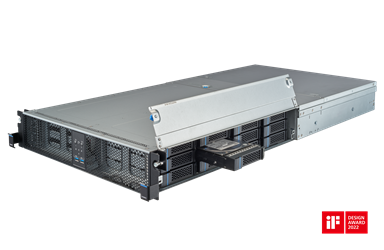

- Innovative Dual-load design for side access 24 x 3.5” hot-swap HDD
- 5+1 redundant cooling

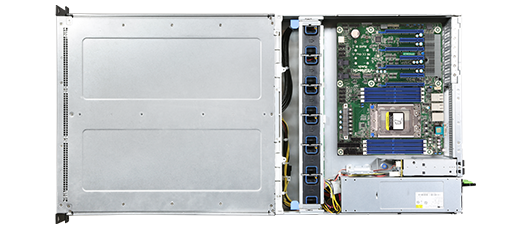

- Flexible ATX single/dual socket M/B support
- Full I/O expansion slot support
- Specification
- Download
- Accessory
- Compatibility
- Order Information
- Order Information
-
主機板尺寸 ATX (12" x 9.6") 外觀尺寸 (深 x 寬 x 高) 880.0 x 438.0 x 87.0 mm; 34.65” x 17.24” x 3.43” 儲存媒體插槽 3.5" Hot-swap：24
2.5" Hot-swap (Option)：2

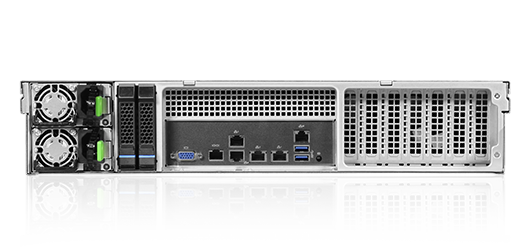

電源供應器 2U Redundant CRPS 1+1, 800W (80+, Platinum) 前置指示燈 1 x Power Status, 1 x UID, 2 x LAN Activity

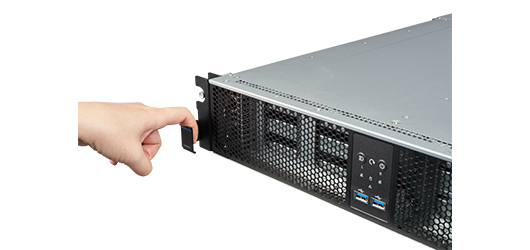

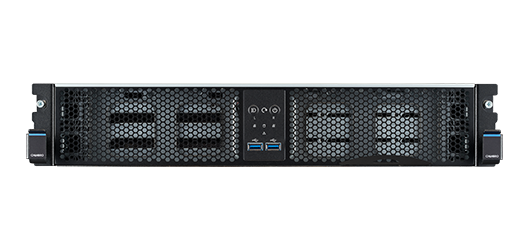

1 x HDD Status, 2 x HDD Failure, 1 x System Alarm前置控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0 風扇 Middle: 6 x 60 mm, PWM, 23000 RPM, Hot-swap 擴充槽 7 x Low Profile or 3 x Full Height (Option) 硬碟熱插拔背板 2 x 3.5” 12-port 12Gbps SAS Expander
1 x 2.5" 2-port 12Gbps SAS/SATA or NVMe Gen 3 (Option)淨重 21 KG/PCS 毛重 26 KG/CTN 材積 5.60 裝櫃數量(單包) 20' FCL: 128 PCS / 40’ FCL: 320 PCS -
類別 規格敘述 版本 大小 下載 Datasheet RM25324 Datasheet V1.2 V1.2 1.4 MB
User Manual RM25324 User Manual v1.0 3.2 MB
-
產品類別 料號 規格敘述 支援 Click Part. No# to view item picture Support -
訂購碼 RM25324H01*15682 : 2U 24-Bay 3.5” Sideloaded Storage with PSU RM25324H01*15683 : 2U 24-Bay 3.5” Sideloaded Storage without PSU Part Category Part No. Qty. Description -
- Ultra-dense 2U storage server optimized for warm and cold data tiering
- Innovative Dual-load design for side access 24 x 3.5” hot-swap HDD
- 5+1 redundant cooling
- Flexible ATX single/dual socket M/B support
- Full I/O expansion slot support
