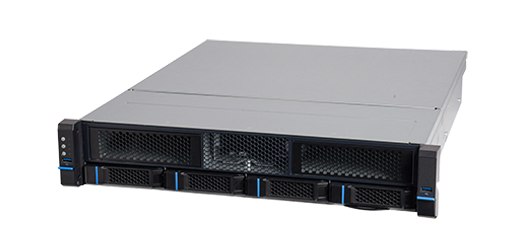

RM245 GPU
2U高彈性存儲伺服器機箱
選擇既有的模組化零件到系统中以提供更為靈活彈性的解決方案以滿足多樣企業需求。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益

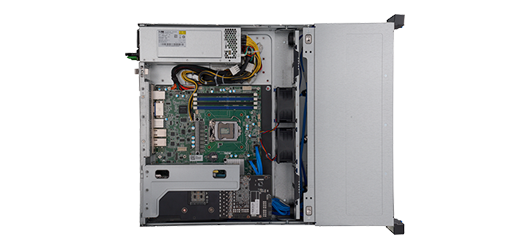

  • Supports MB size up to 12” x 10.5”
  • Features tool-less 3.5" HDD tray
  • Supports 8-bay or 12-bay 3.5" HDD cage for different applications
  • Supports 12Gb/s backplane w/ or w/o Expander

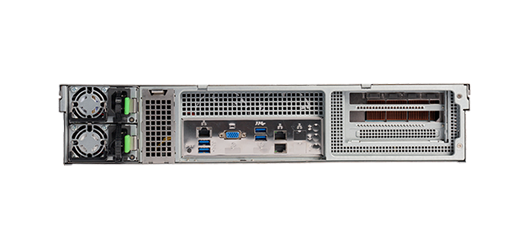

  • Easy-swap rear window for 3-slot or 7-slot configuration
  • Optional rear 2-bay 2.5" HDD cage for OS drive security
  • Supports 1 + 1 CRPS or 2U single PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • 主機板尺寸 ATX (12" x 9.6") or Micro-ATX (9.6" x 9.6")
    外觀尺寸 (深 x 寬 x 高) 559 x 438 x 87 (mm), 22" x 17.2" x 3.5"
    儲存媒體插槽 RM24500 GPU: 1 x 3.5” (Internal)+ 1 x2.5” (Internal), 2 x Open Bay:
    RM24504 GPU: 4 x 3.5" (Hot-swap), 2 x Open Bay:
    Optional 2 x 2.5" for OS (Hot-swap, 1+1 CRPS SKU only):
    電源供應器 - SKU1 : Redundant CRPS 1+1, 800W
    - SKU2 : 1 CRPS + PDB, 800W

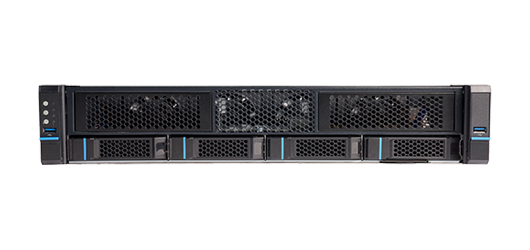

    前置指示燈 Front Panel: 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Status, 1 x System Status
    前置控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0
    系統安全裝置 Intrusion Switch (Option)
    擴充槽 3 x Full Height and Full Length (Right), support 1x double Wide GPU(Default: PCIe bracket w/o riser card)
    硬碟熱插拔背板 - RM24504: 3.5" 4-port 12Gbps, Mini-SAS HD
    - 2.5” 2-port 12Gbps SAS/SATA (Option)
  • 類別 規格敘述 版本 大小 下載
    Datasheet Datasheet RM245 GPU v1.0 865.4 KB
  • 產品類別 料號 規格敘述 支援
    Riser Card
    384-PCB00066B0A0
    For 2U, 1-Slot, PCI-e x16 riser Gen4
    Click Part. No# to view item picture
