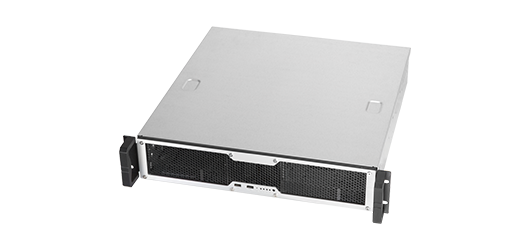

RM24100 CRPS/FLEX
2U 功能高級工業伺服器機箱
RM24100 升級為支持 CRPS 冗餘 1+1 或 Flex ATX PSU 和抗振驅動器籠； 它為工業應用提供了一個值得信賴的平台。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益
  • Depth 18” of chassis for space-sensitive applications

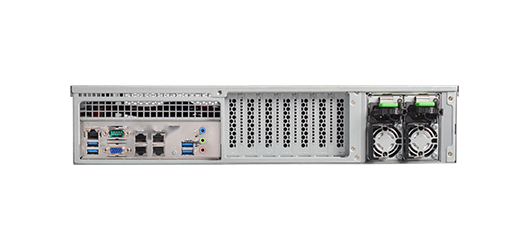

  • 7-slot low profile rear window
  • The cushion on drive cages to depress HDD & ODD vibration
  • Supports more drives, 2 x 5.25", 2 x 3.5" and 2 x 2.5" on the front side

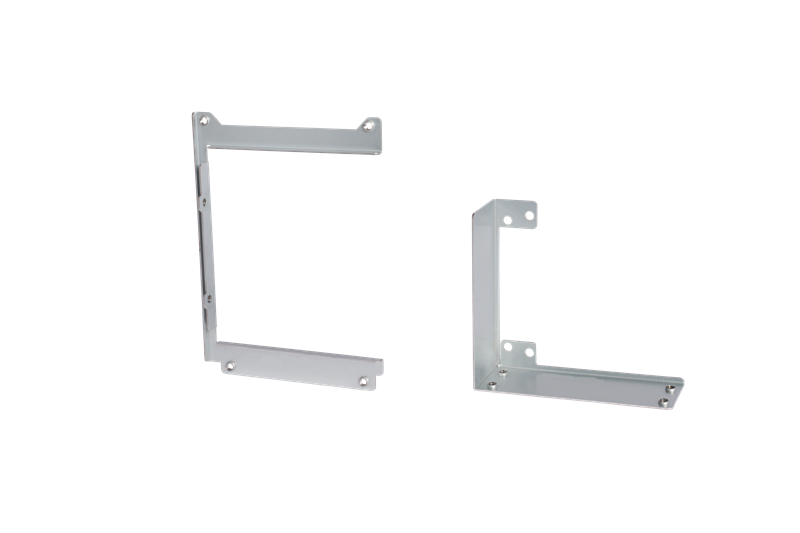

  • Removable drive cages for easy installation
  • Supports 1+1 CRPS or Flex ATX PSU, which is standard and easy to get in the market
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • 主機板尺寸 ATX (12" x 9.6")
    外觀尺寸 (深 x 寬 x 高) 457.0 x 430.0 x 88.1 (mm) 18.00" x 16.93" x 3.47"
    儲存媒體插槽 External 5.25"：2
    External 3.5"：2
    Internal 3.5"：2
    電源供應器 Flex ATX single or 1+1 CRPS redundant
    Option:
    -Flex ATX, 500W (80+, Gold)
    -2U Redundant CRPS 1+1, 550W (80+, Platinum)

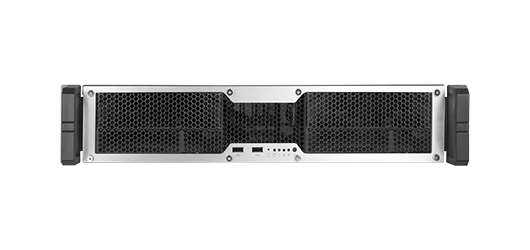

    前置指示燈 1 x Power Status, 2 x LAN Activity, 1 x HDD Status
    前置控制 1 x Power On/Off, 1 x System Reset , 2 x USB 3.0
    系統安全裝置 Intrusion switch (Option)
    風扇 1 x 80mm (T=32mm) , PWM , 5000 RPM, non hot swap, front
    2 x 40mm (T=28mm) , PWM , 14500 RPM, non hot swap, rear (Option)
    擴充槽 7 x Low Profile
    硬碟熱插拔背板 N/A
    淨重 6.9 KG
    毛重 9.4 KG
    材積 2.50
    裝櫃數量(單包) 20' FCL: 388 pcs, 40' FCL: 252 pcs
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM24100 CRPS/FLEX datasheet v1.1 v1.1 473.6 KB
  • 產品類別 料號 規格敘述 支援

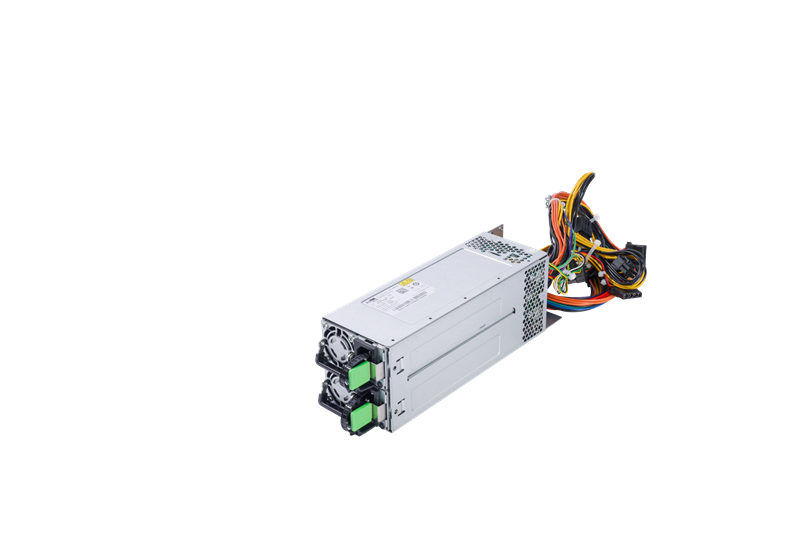

    CRPS module
    384-PCB00049B0A0

    FSP 550W (1+1) 2U Redundant CRPS module
    CRPS module
    384-PCB00050B0A0    		 Acbel 550W (1+1) 2U Redundant CRPS module
    Fan
    384-24111-3102A0

    Fan, NMB 40 x 28 Ball, L500MM (4P4C), w/Fan Guard For Rear Window
    Flex ATX 500W PSU
    384-PCB00051B0A0    		 Flex ATX 500W PSU, 80+ Gold, Acble FSD059-7HCG

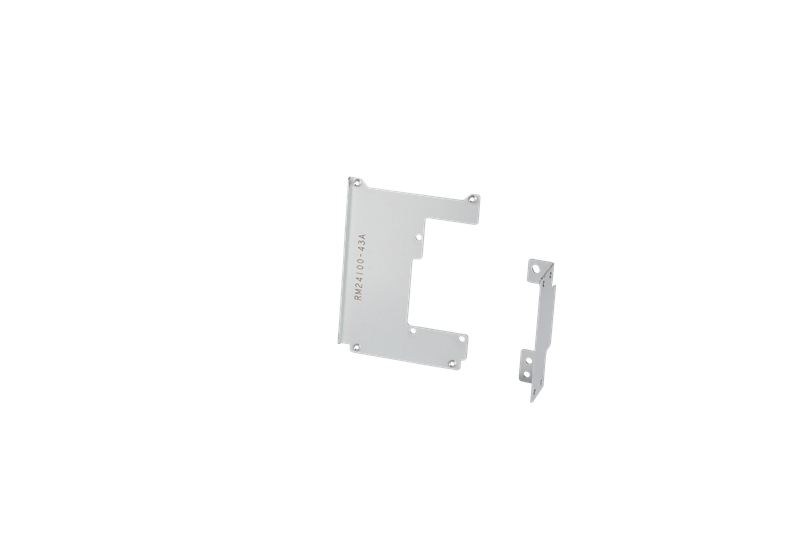

    PSU bracket
    384-24104-3201A0    		 Power bracket to support flex ATX
    PSU bracket
    384-PSU00015B0A0    		 Power bracket to support CRPS for FSP or Acbel
    Slide Rail
    84H323610-034    		 26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
    Click Part. No# to view item picture
  • 訂購碼 電源供應器
    RM24100H11*15911 CRPS
    RM24100H11*15912 FLEX
