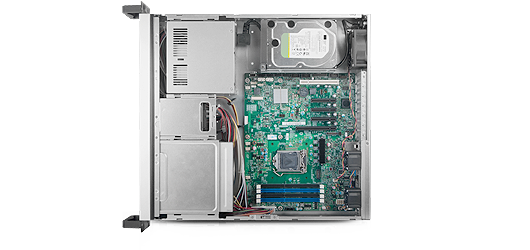

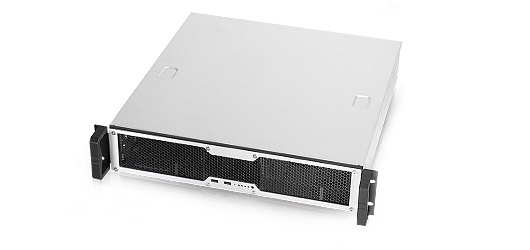

RM24100
2U 功能先進工業電腦機殼
RM24100設計是採用標準、主流規格的元件，並捨棄部分不常使用的工控機箱規格，而使常用功能做到更極致，讓產品更實用。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益
  • Depth 18” of chassis for space-sensitive applications

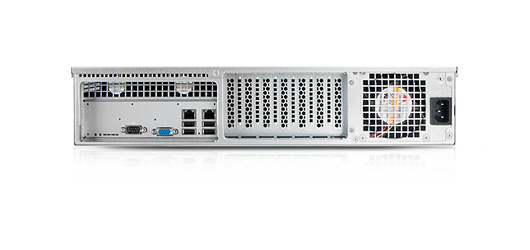

  • Modular 3-slot riser or 7-slot low profile rear window for flexible configuration
  • Cushion on 3.5” and 2.5” HDD cages to depress HDD vibration
  • Removable drive cages for easy installation
  • Supports PS/2 PSU and other standard components to lower TCO
  • Specification
  • Download
  • Accessory
  • Compatibility
  • 主機板尺寸 ATX (12” x 9.6”)
    外觀尺寸 (深 x 寬 x 高) 457.0 x 430.0 x 88.1 (mm)
    18.00” x 16.93” x 3.47”
    儲存媒體插槽 External 5.25"：1
    External 3.5"：1
    Internal 3.5"：2
    Internal 2.5"：2
    電源供應器 PS/2 Single (Front)
    前置指示燈 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    前置控制 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    系統安全裝置 Intrusion Switch (Option)
    風扇 Middle: 80 x 32 mm (1), Option
    Rear: 80 x 32 mm (1),
    40 x 28 mm (2), Option
    擴充槽 3 x Full Height or 7 x Low Profile
    硬碟熱插拔背板 N/A
    淨重 6.9 kg/15.2 lb
    毛重 9.4 kg/20.70 lb

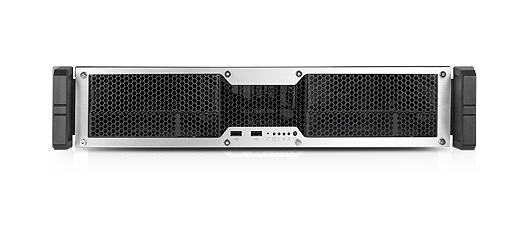

    面板 Aluminum bezel frame or two-door bezel with air filter
    材積 2.50
    裝櫃數量(單包) 20’: 388, 40’: 788, 40’H: 940
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM24100 Datasheet V1.3 1.1 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM24100 Quick Installation Guide V1.1 574.7 KB
  • 產品類別 料號 規格敘述 支援
    Cable

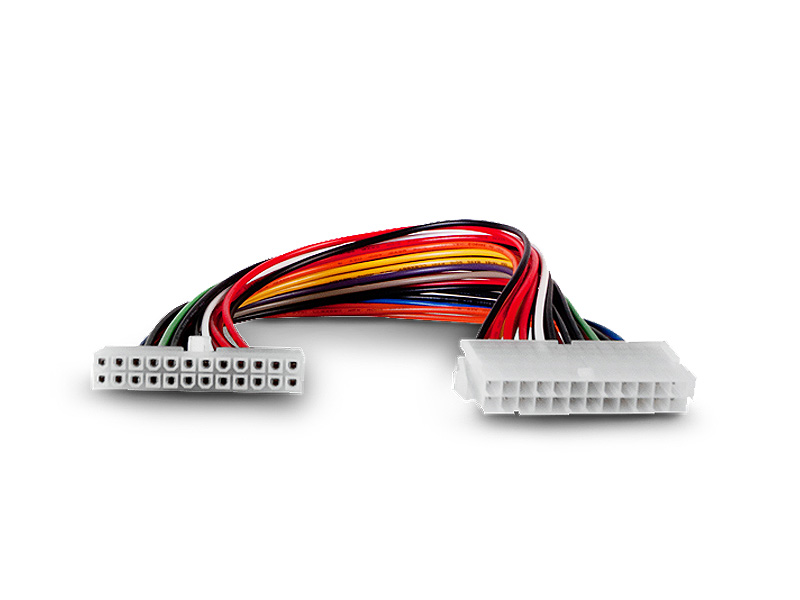

    26H11324102A0    		 Cable, PSU, Wire Extension, 24P to 24P, 250mm
    Cable

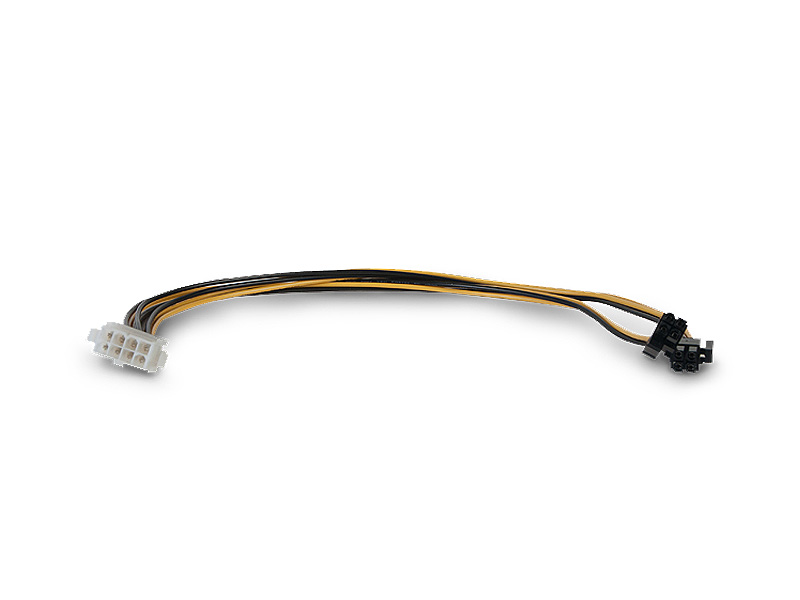

    26H11324103A0    		 Cable, PSU, Wire Extension, 8P to 4P+4P, 400mm
    Cable

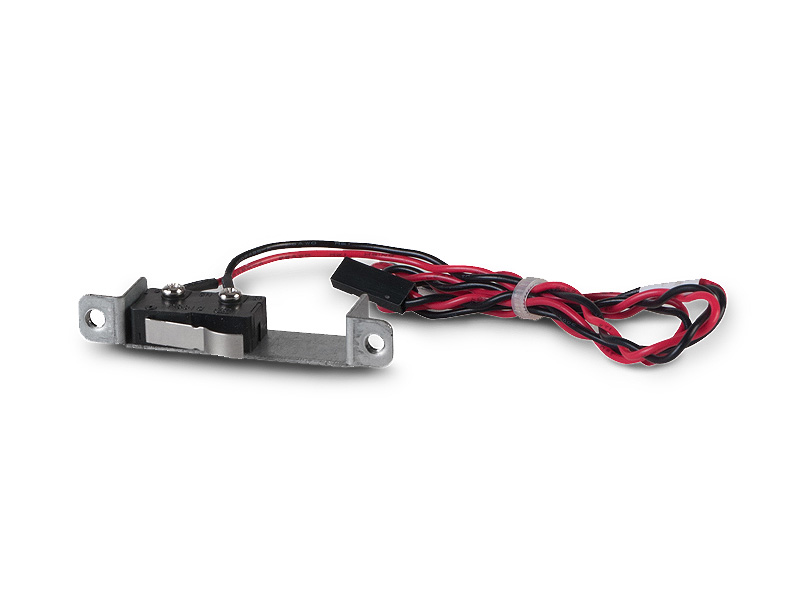

    84H324110-010    		 Cable, Intrusion, 2-Pin, 500mm

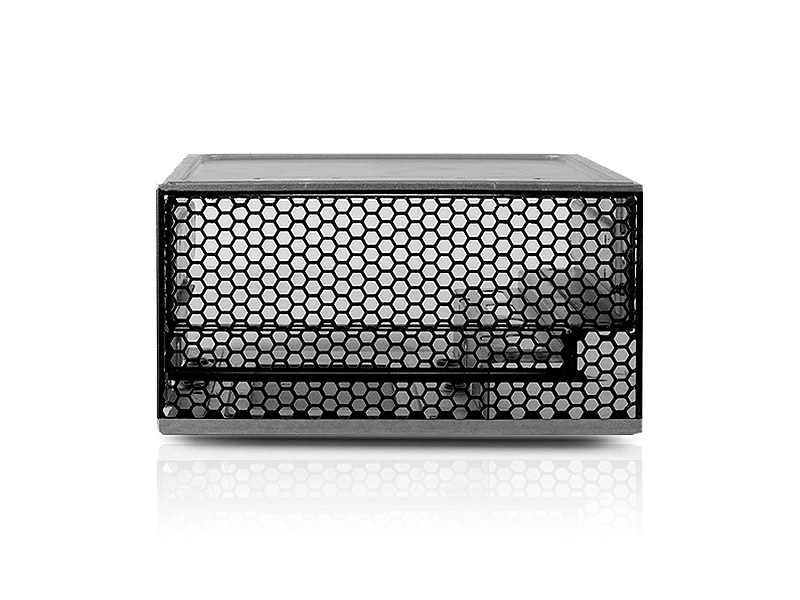

    Drive Cage

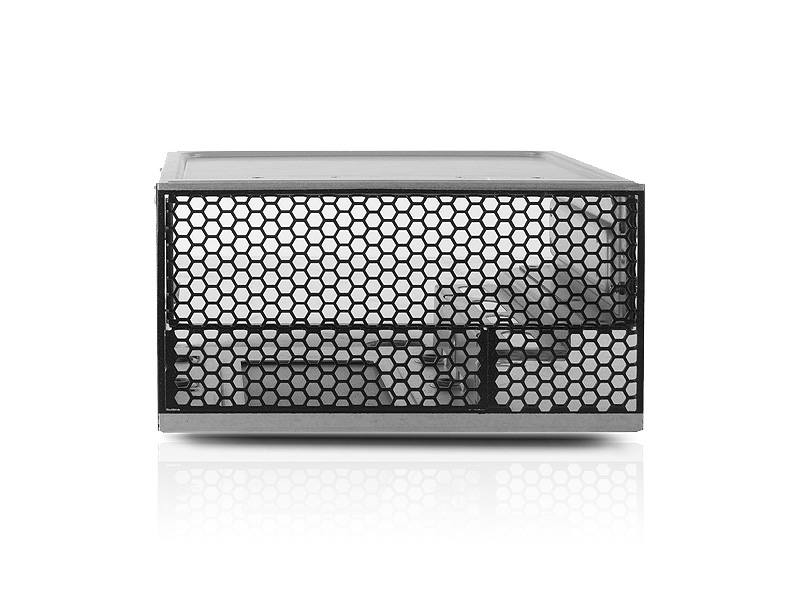

    84H324110-007    		 Drive cage, 1x5.25"+1x slim ODD bays, exposed
    Drive Cage
    84H324110-008    		 Drive cage, 1x5.25"+1x3.5" bays, exposed
    Fan

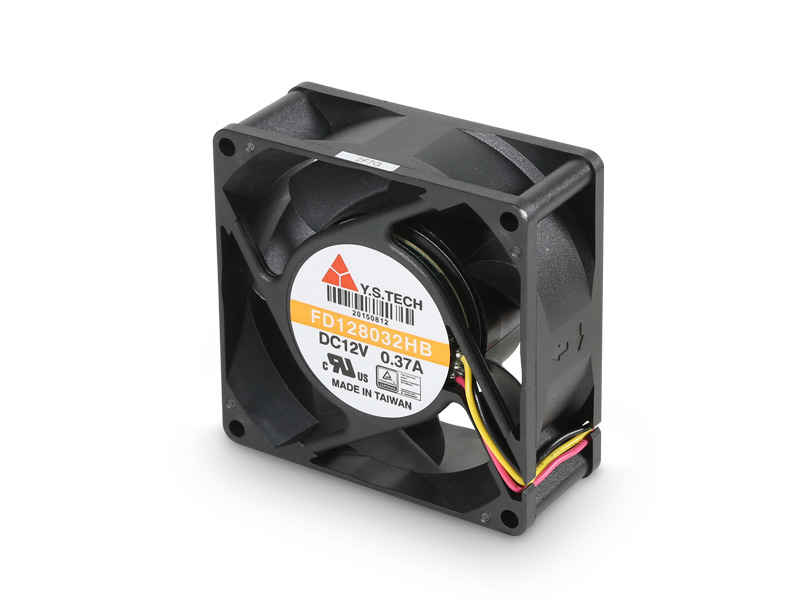

    30H080032-101    		 FAN, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), For Rear Window
    Fan
    30H080032-112    		 FAN, 1pcs YS 80x32 Ball Bering , L300mm (4P4C),For Rear Window
    Fan
    84H324110-009    		 FAN, 1pcs AVC 40x28 Ball Bering, L310mm (4P4C), w/ fan guard For Rear Window
    Fan
    84H324210-004    		 Fan, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), for Rear Window
    Power Supply

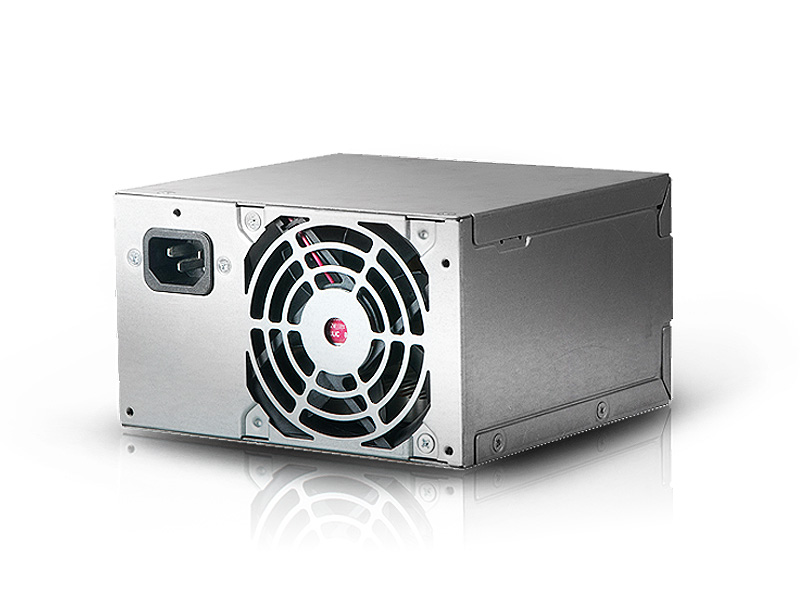

    32H1030000706    		 PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan
    Power Supply
    32H1030001104    		 PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan
    Rear Window
    84H323610-006    		 Rear Window, 3-slot, Full Height
    Slide Rail
    84H323610-034    		 26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
