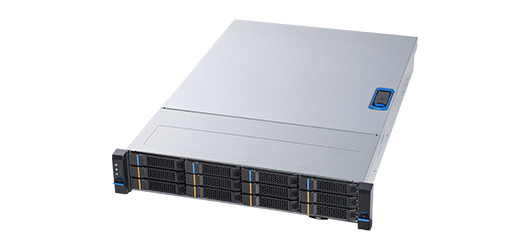

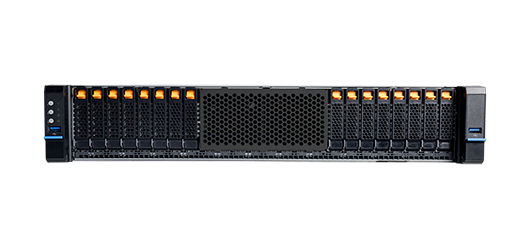

RM238 NVMe Gen4

2U 通用 NVMe Gen 4 伺服器機箱

RM238 NVMe Gen4伺服器機箱可最大限度地提高計算性能或分佈和開放式 IT 基礎架構。

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

Rackmount 2U supports M/B size up to 12” x13”.

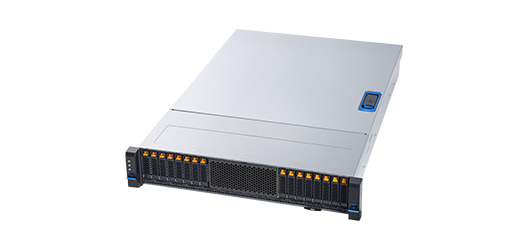

16 port 2.5" (2pcs x 8 port) 16G PCIe Gen 4 NVMe SSD Backplane, or 12 port 3.5", 8 Tri-mode (SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane, and 2 Bay 2.5" OS option module on the rear.
Easy service toolless 2.5" / 3.5" HDD trays.

Supports 12-bay or 16-bay 2.5"/3.5" HDD cage for wide workload use.
Optional rear two-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache ( NVMe) buffer use.
Built-in up to two front access USB 3.0 ports.

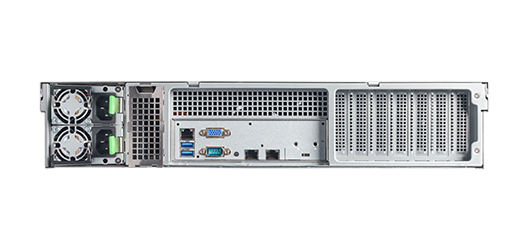

Easy conversion three-slot / 7-slot rear window.
Supports 2U CRPS 1+1.

Specification
Download
Accessory
Compatibility
Order Information

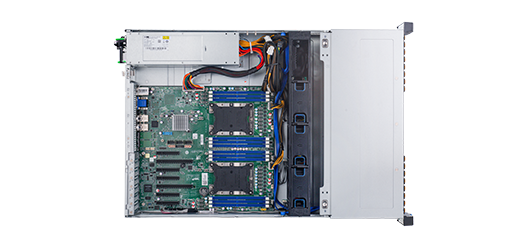

主機板尺寸	Extended ATX (12” x 13”)
外觀尺寸 (深 x 寬 x 高)	658.6 x 438.0 x 87.0 (mm), 25.93” x 17.24” x 3.43”

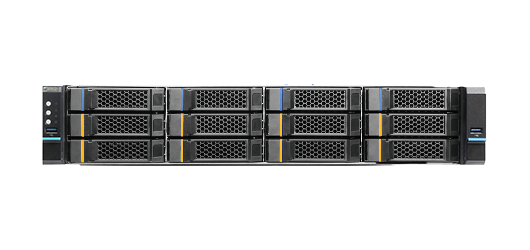

儲存媒體插槽	3.5" Hot-swap：12 2.5" Hot-swap：16
電源供應器	1+1 CRPS, 1200W 80 Plus Platinum
前置指示燈	1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x HDD Status, 1 x System Status
前置控制	1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB3.0
系統安全裝置	Intrusion Switch(Option)
風扇	3 x 80 x 38 mm, 11000RPM, Hot-swap
擴充槽	7 x Low Profile or 3 x Full Height (Option)
硬碟熱插拔背板	-16 port 2.5" (2pcs x 8 -port) 16G PCIe Gen 4 NVMe SSD Backplane, -12- port 3.5”, 8 Tri-mode(SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane
淨重	11.5 kg
毛重	14.0 kg
材積	3.3
裝櫃數量(單包)	20': 200, 40': 460, 40'H: 506 (Single Packing)

產品類別	料號	規格敘述	支援

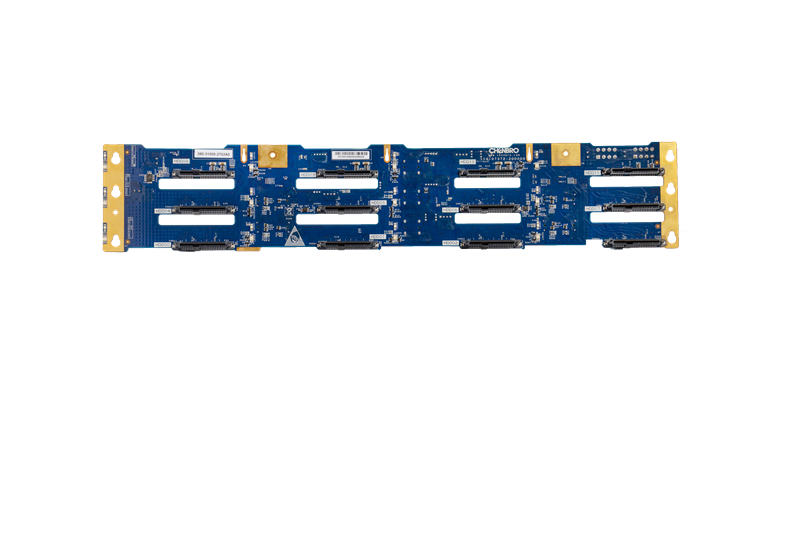

Backplane	380-31000-2702A0	RM2381202-01_934159_BP (380-31000-2702A0)

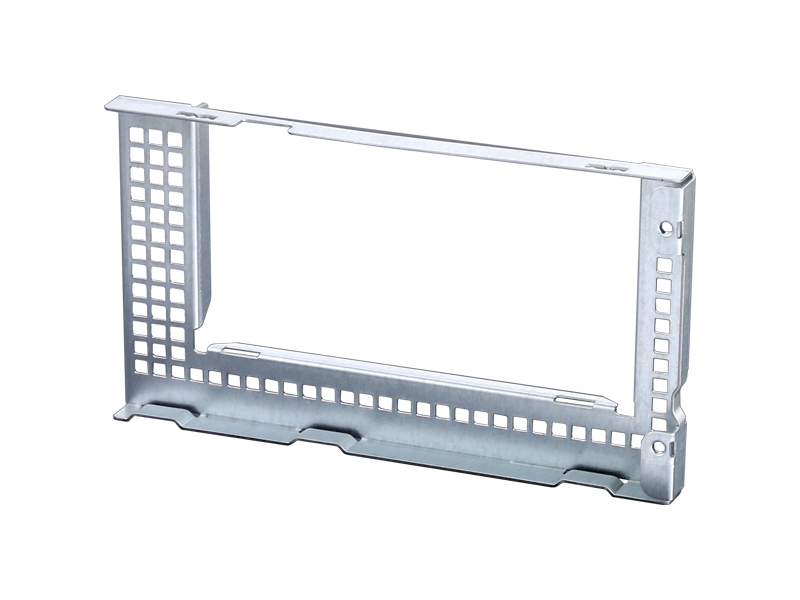

Bracket	384-23808-3100A0	PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder
Bracket	55H073219A004	Dummy Cover, for CRPS Module Opening
Cable	126-23712-3004A0	Cable, Oculink to Oculink R/A, 2 in 1, 300mm

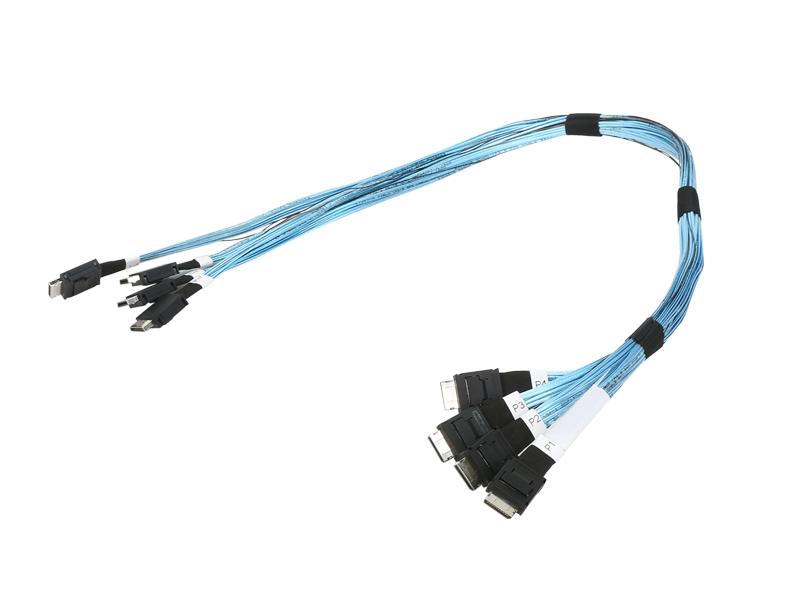

Cable	126-23712-3005A1	Cable, OCuLink Vertical to OCuLink Vertical, 4-in-1, 650mm/600mm
Cable	26H11313705A0	I2C, 4-pin to 4-pin, 800mm, M/B to LED Board
Cable	26H12314604A0	SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
Cable	26H12314607A0	Cable, Mini SAS HD, HDD Backplane to Motherboard/HBA Card, 550 mm
Fan	384-FAN00129B0A0	3 x 80 x 38 mm, 11000RPM, Hot swap
Fan module(Spare Parts)	384-23811-3106A0	3 x 80 x 38 mm, 11000RPM, Hot-swap
HDD Cage	384-23701-3116B0	2-bay 2.5" HDD Cage, w/2-port 12Gb/s SATA&SAS Backplane , w/ 2 x 2.5" HDD Tray(TOOL-LESS)

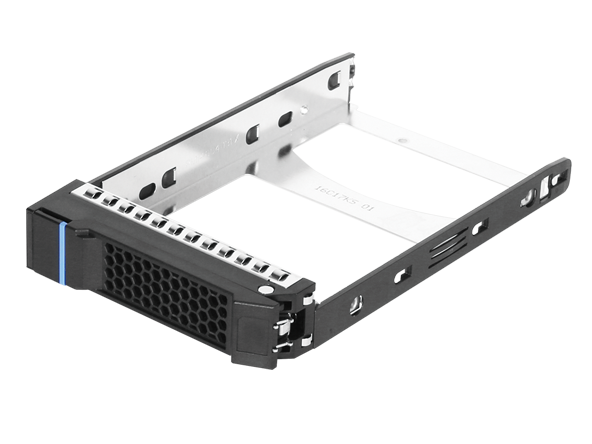

HDD Tray	84H314610-004	3.5" HDD Tray, Tool-less
Holder	384-23712-3102A0	PCIe Card Holder, 3-slot, Full Height
NVMe Gen4 SSD module	384-PCB00053B0A0	2-Bay NVMe Gen4 SSD module (Rear)
Panel	384-23705-3106B0	PANEL,RM23708,18BOX/12CTN/PALLET,FOR OTS
PCIe Card	384-23820-3101A0	Low Profile Quad-Port NVMe Internal Host Bus Adapter, 20PCS/CTN
Power Supply	132-41200-0700A1	PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module
PSU Cage	380-23807-3002A1	PSU Cage w/PDB & Cable

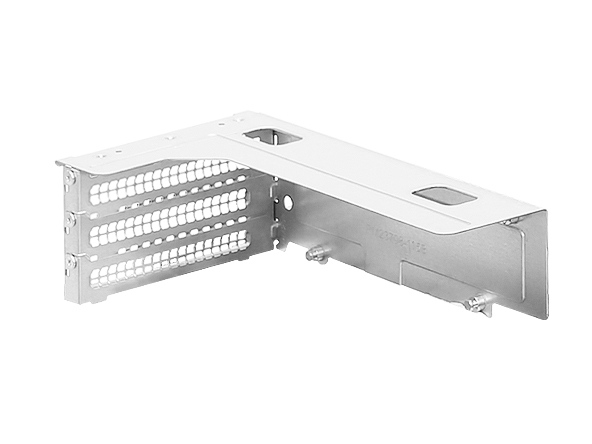

Riser Bracket	384-23812-3110A0	PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder.
Riser Card	384-23812-3101A0	Riser Card, PCBA, 2 x PCI-ex8
Slide Rail	384-14303-3102A0	AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,8BOX/16CTN/PALLET
Slide Rail	384-23803-3300C0	32.8“ slide rail, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
Slide Rail	384-23803-3300D0	Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
Upgrade Kits	384-23801-3103A0	2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane and Mylar Air Duct
Upgrade Kits	384-23801-3104A0	2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane, Oculink Cable, and Mylar Air Duct
Click Part. No# to view item picture

電源供應器


主機板


RAID 陣列卡


硬碟

類別	規格敘述	版本	大小	下載
Datasheet	RM238 NVMe Gen4 Datasheet	v1.0	346.7 KB
