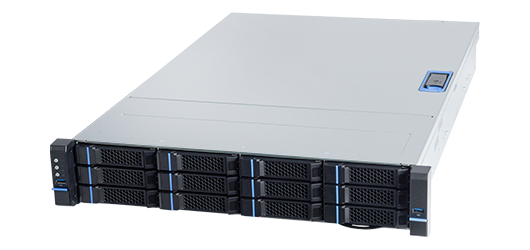

RM23812MR

2U通用WIO伺服器機箱

新的 RM23812 提供多種 I/O 選項，為特定要求提供真正優化的系統，並完全支持 SMC H12SSW-NTR (WIO)。

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

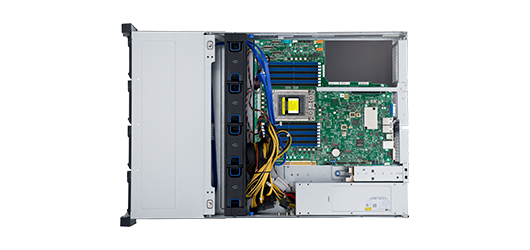

Rackmount 2U supports Supermicro proprietary ( 13.4" x 12.29") H12SSW NTR, AMD single stock by Milan series.

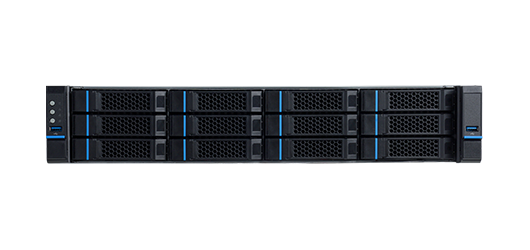

12 Bay 3.5" hot-swappable storage with miniSAS HD expander backplane support SAS/SATA HDD, and 2 Bay 2.5" OS option module on the rear.
4 x FHHL and 3 x LP of PCIe riser bracket support a wide variety of PCIe 4.0 add-in card.

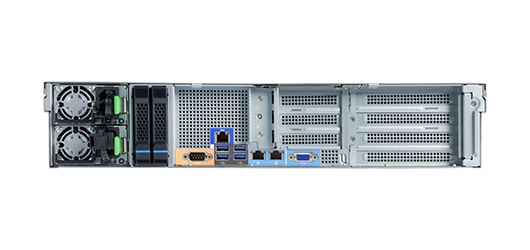

One-piece formed rear window with IO holes: RJ45 x3, USB x3, VGA port, series port.
1200W (1+1) redundant power supply, 80+ Platinum6. 26" slide rail support.

Specification
Download
Accessory
Compatibility

主機板尺寸	Proprietary (13.4” x 12.29”): SMC H12SSW-NTR
外觀尺寸 (深 x 寬 x 高)	660.0 x 438.0 x 87.0 (mm)
儲存媒體插槽	Front: 3.5” HDD, Hot-swap：12 Rear: 2.5” HDD, Hot-swap (Option)：2
電源供應器	1200W CRPS 1+1
前置指示燈	1 x Power Status, 2 x LAN Activity, 1 x UID 1 x HDD Status, 1 x System Alarm
前置控制	1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
系統安全裝置	Intrusion Switch & Security Bezel (Option)
風扇	4 x 80mm (T:38mm), 11000 RPM, PWM, Hot-swap 1 x Air Duct (Option)
Expander Controller	4 x Full Height and Full Length (Right), Supports SMC RSC-W2-66G4 2x PCIe 4.0 x16 3 x Low Profile (Left), Supports SMC RSC-W2R-88G4 2x PCIe 4.0 x8 (Default: PCIe Bracket w/o Riser Card)
硬碟熱插拔背板	12-Port 12Gb/s miniSAS HD, Expander 2-Port SAS/SATA or NVMe (Option)
