RM151 Series L-shaped
RM151 Series L-shaped(Genoa platform)
基於AMD Zen4 EPYC™(Genoa)、EPYC 9004系列處理器的最新一U機架式伺服器,旨在滿足高性能運算和雲應用的需求。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • Supports M/B size up to 18.8 " x 16.8".

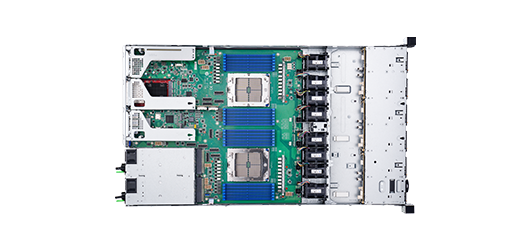

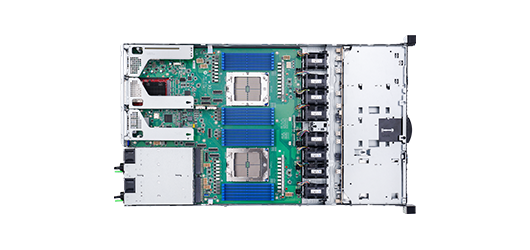

  • 4TH GEN AMD EPYC™Processor, EPYC 9004 series (Genoa), 2-socket server configurations.
  • High-performance SAS/SATA/NVMeGen 4 storage, equipped with 12 port 2.5" (3pcs x 4-port) Backplane, or 4-port 3.5" (1pcs x 4-port) SAS/SATA 3 Backplane.

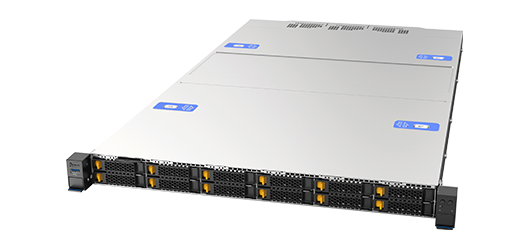

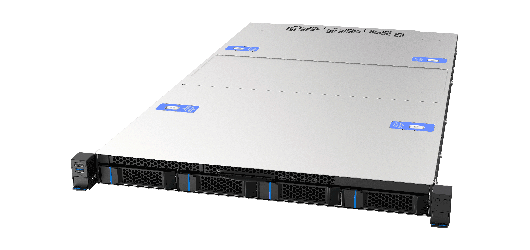

  • Easy service tray-less 2.5" HDD (up to 12 bays) / 3.5 HDD trays (up to 4 bays.)
  • Built-in front access USB 2.0 and USB 3.0 ports.
  • Supports 3 HHHL PCIe slots up to PCIe 5.0 and OCP 3.0 module.
  • Supports 1+1 redundant CRPS, 1600W.
  • Sliding rail supported for easy maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • 主機板尺寸 MSI® Server Board S3121 (18.8" x 16.8")
    外觀尺寸 (深 x 寬 x 高) 770 x 438.5 x 43.0 mm; 30.3” x 17.26” x 1.7”

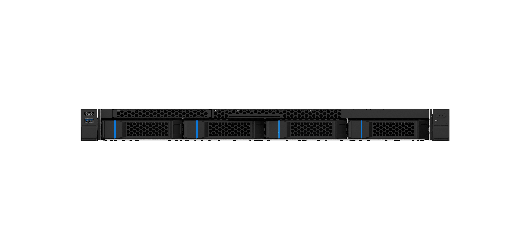

    儲存媒體插槽 3.5" bays, Hot-swap; supports SAS/SATA3:4

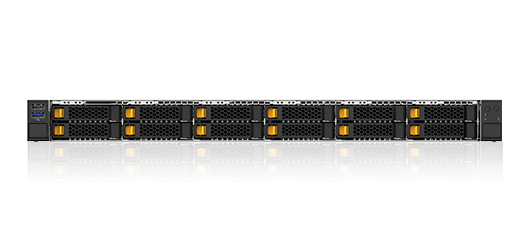

    2.5" Tray-less, Hot-swap; supports NVMe Gen 4:12

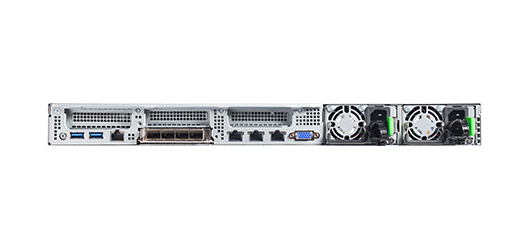

    電源供應器 1+1 CRPS 1600W (80+ Platinum,) redundant power supply
    前置指示燈 1 x Power Status, 1 x UID, 1 x HDD Activity, 1 x System Status
    前置控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0, 1 x USB 2.0
    系統安全裝置 N/A
    擴充槽 3 x half-height and half-length (1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16 supported.)
    硬碟熱插拔背板 2.5" SKU: 3 x 4-port 16 Gb/s NVMe Gen 4 supported
    3.5" SKU: 1 x 4-port 12 Gb/s SAS/SATA3 supported
    淨重 20.25 KG/PCS
    毛重 24.25 KG/PCS
    材積 4.55 ft3
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM151 Series L-shaped Datasheet v1.0 660.4 KB
  • 產品類別 料號 規格敘述 支援
    CMA
    384-23703-3300A0
    AS'Y COMPONENT, CABLE MANAGEMENT ARM
    Fan
    130-04056-3116A0
    FAN,40*40*56,22900/23200RPM,PWM,L40MM,8P8C
    Power Supply
    132-41600-0701A0
    CRPS,1600W,FULL RANGE,80PLUS(PLATINUM),ACTIVE PFC
    Slide Rail
    384-15103-3301A0
    SLIDE RAIL,TRAVEL:820MM,CHASSIS
    Slide rail(two-section)
    384-15103-3300A0

    AS'Y COMPONENT,TRAVEL:560MM,TOOLLESS,NON-AUTO LOCK

    Click Part. No# to view item picture
  • 訂購碼
    RM1510403-001000
    RM1511204-001000
