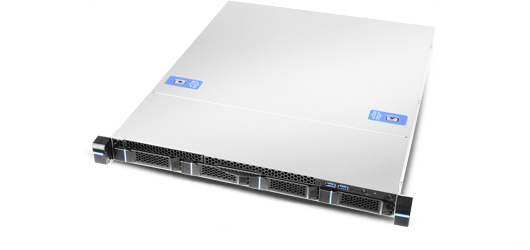

RM146 Plus Series
1U 簡易安裝緊湊型伺服器機殼
緊湊型機殼設計，深度僅 550mm； 模組化以及免工具設計，靈活支援各種電源，硬碟，主機板及系統散熱要求，滿足性能/價格/運維成本的均衡配置，是中小型企業的理想選擇
比較
特點與利益

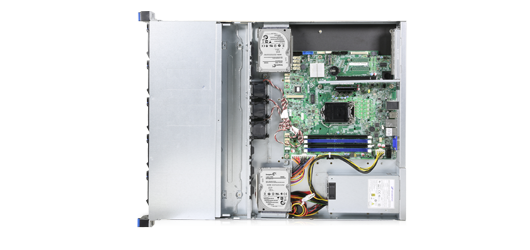

- 支援主機板尺寸至 12” x 9.6”
- 模組化硬碟籠設計，搭載 4 x 3.5" 或 10 x 2.5" SAS/SATA 12Gb/s 直連背板
- 免工具安裝 3.5'' 硬碟托架和 2.5'' 熱插拔硬碟托架
- 配置 3 顆 4028 風扇，可彈性支援 28/48/56 不同厚度規格，最多可安裝 6 顆風扇
- 前置訊號標籤，便於伺服器管理
- 支援 1U 單電 和 1+1 冗餘電源
- 可選配免工具安裝滑軌或高性價比簡易型滑軌
- 可選配內置 2 x 2.5" 硬碟 (厚度 9.5mm)
- 規格
- 下載
- 選配件
- 相容列表
-
主機板尺寸 ATX (12" x 9.6")
外觀尺寸 (深 x 寬 x 高) 547.6 x 438.5 x 43.5 (mm)
21.56" x 17.26" x 1.71"儲存媒體插槽 RM14604 Plus (3.5" Hot-swap)：4
RM14604 Plus (2.5" Internal)：2
RM14604 Plus (Slim ODD, 9.5mm)：1
Optional 2.5" (Internal) for OS：2

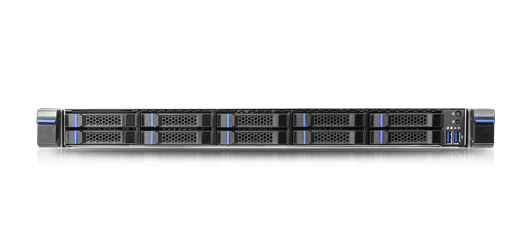

RM14610 Plus (2.5" Hot-swap)：10
RM14610 Plus (2.5" Internal)：2

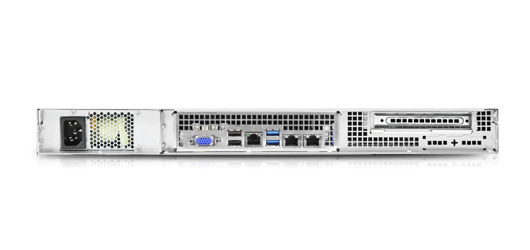

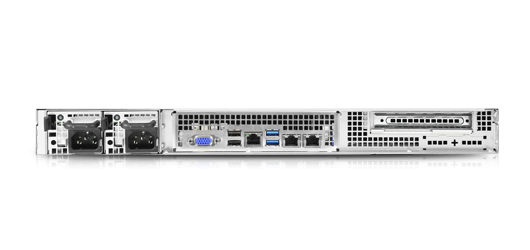

電源供應器 1U Single or 1U 1+1 Redundant 前置指示燈 1 x Power Status
2 x Lan Activity
1 x UID
1 x System Alarm
1 x HDD Status (RM14604 Plus Only)前置控制 1 x Power On/Off
1 x UID
2 x USB3.0系統安全裝置 N/A 風扇 Middle : 3 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)
擴充槽 1 x Full Height & Half Length 硬碟熱插拔背板 RM14604 Plus : 3.5" 4-port 12Gbps, SATA 7pin
RM14610 Plus : 2.5" 10-port 12Gbps, Mini-SAS HD淨重 7.5 kg/16.52 lb 毛重 10.0 kg/22.03 lb 面板 Option 材積 1.84 裝櫃數量(單包) 20': 480, 40': 960 -
類別 規格敘述 版本 大小 下載 Datasheet RM146 Plus Series Datasheet V1.5 858.1 KB
User Manual RM146 Plus Series User Manual V1.5 2.3 MB
-

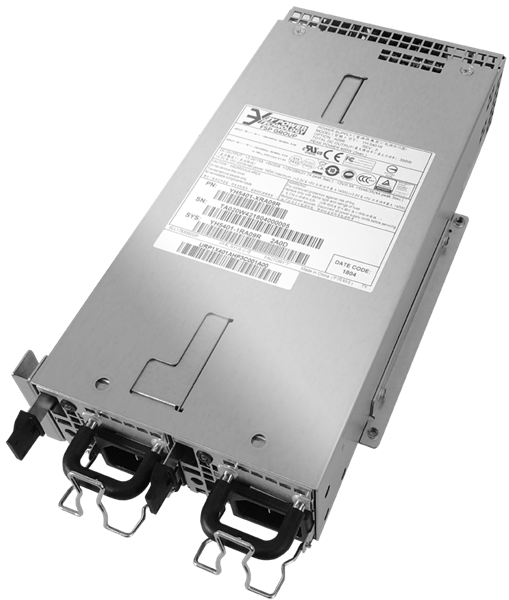

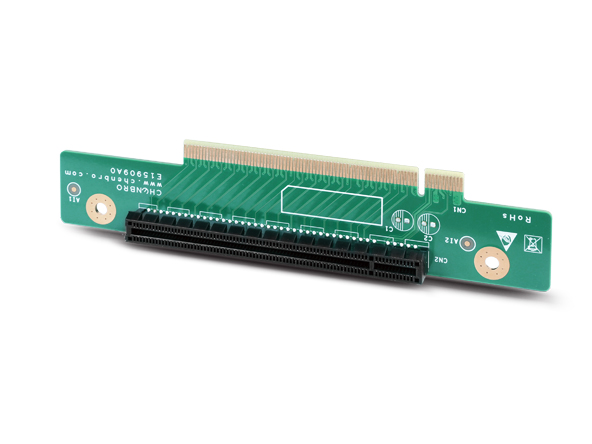

產品類別 料號 規格敘述 支援 Bezel 384-14605-3100A0 Front Bezel, 1U, Metal, Black Cable 126-13311-3000A0 Cable, Display, 900mm, w/I2C, Discrete pins Cable 126-23612-3005A0 Mini-SAS HD to mini-SAS HD,600mm Cable 26H03313601A0 USB3.0, 20P to Type A plug, 750 mm Cable 384-14620-3307A0 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment Cable 384-14620-3311A0 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment HDD Tray 383-14655-3034B0 2.5" HDD Tray, screw-on I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS I/O Shield 84H314610-018 1U, For Asrock D1541D4U-2T8R Power Supply 132-20350-1201B0 PSU, 1+1 redundant, 350w Power Supply 84H314610-020 PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket Rack Handle 384-14609-3100A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left Rack Handle 384-14609-3101A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right Rack Handle 84H314610-025 Latch-type Rack Handle (Right) Riser Card 84H314610-023 Riser card with bracket, PCI-e 16x, Gen 3, Rev.A0 Slide Rail 384-14303-3100A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX Slide Rail 384-14303-3101A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX 拉柄 84H314610-025 Latch-type Rack Handle (Right) Click Part. No# to view item picture Support
