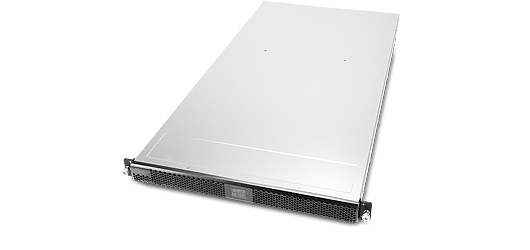

RM14500
1U 12槽位高密度儲存伺服器機殼

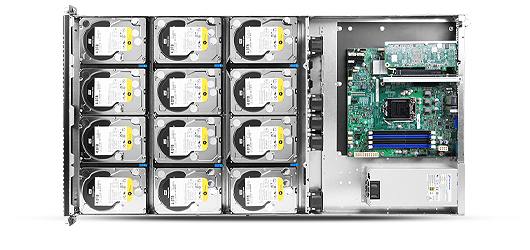

勤誠專利研發的硬碟支架，將1U伺服器機殼的儲存能力最大化，推升至可支援18顆硬碟，適用於物件儲存與冷資料儲存的應用，是款高CP值的伺服器機殼。
比較
特點與利益
- 採用專利的硬碟裝置槽設計，可同時置放3.5"與2.5"硬碟，無須工具即可輕鬆拆裝硬碟
- 免工具安裝的硬碟槽位，利於硬碟的維護工作
- 易於安裝且具防震設計的風扇裝置
- 特殊整線用的檔片兼具防止氣體迴流的功能

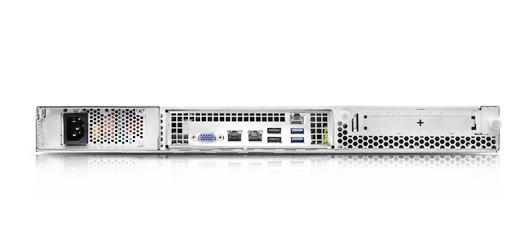

- 前後窗採用蜂巢式通風口設計以提高通風率
- 機箱底部特殊凸槽設計，強化機箱強度防止下陷或扭曲變形
- 規格
- 下載
- 選配件
- 相容列表
-
主機板尺寸 ATX (12" x 9.6") 外觀尺寸 (深 x 寬 x 高) 877.0 x 438.5 x 43.5 (mm)
34.53" x 17.26" x 1.71"儲存媒體插槽 Internal 3.5"：12
Internal 2.5"：6
電源供應器 1U Single or 1+1 Redundant 前置指示燈 1 x Power Status
1 x LAN Activity
1 x HDD Status
1 x System Alarm
1 x UID前置控制 1 x Power On/Off
1 x System Reset
1 x UID系統安全裝置 N/A 風扇 Middle: 5 x 40 mm (T=28 mm), PWM (Up to 7) 擴充槽 1 x Full Height and Half Length 硬碟熱插拔背板 N/A 淨重 8.6 kg/18.94 lb 毛重 12.3 kg/27.09 lb 材積 3.31 裝櫃數量(單包) 20': 314, 40': 647 -
類別 規格敘述 版本 大小 下載 Configuration Guide Configuration Guide_RM14500 V1.0 422.8 KB
Product Brief Product Brief_RM14500 V1.0 395.8 KB
Technical Product Specification (TPS) TPS_RM14500 V1.0 2.0 MB
User Manual RM14500_QIG V1.1 14.8 MB
-

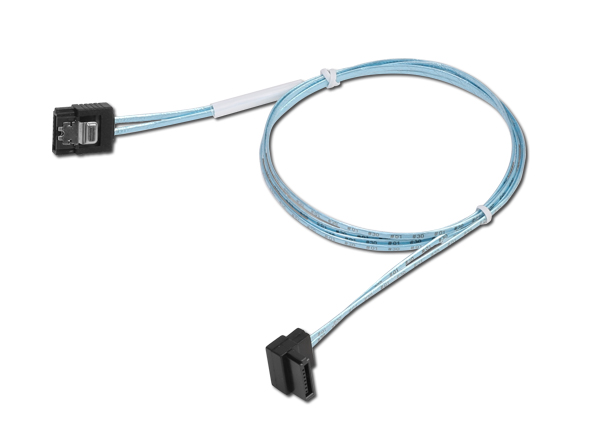

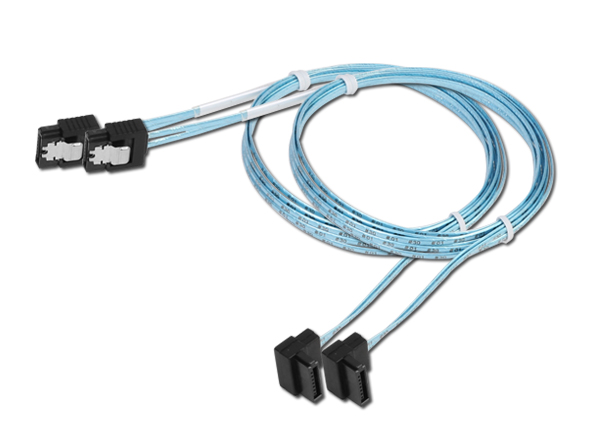

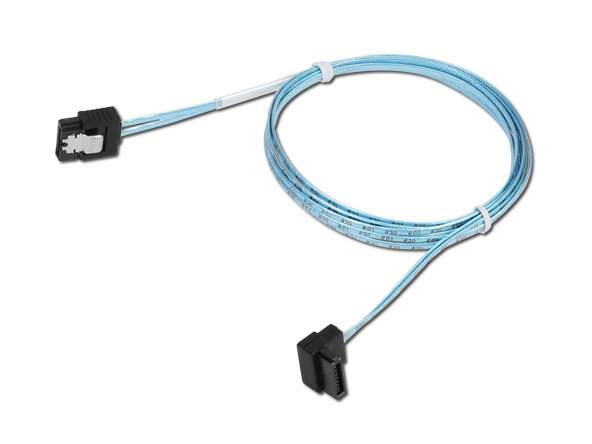

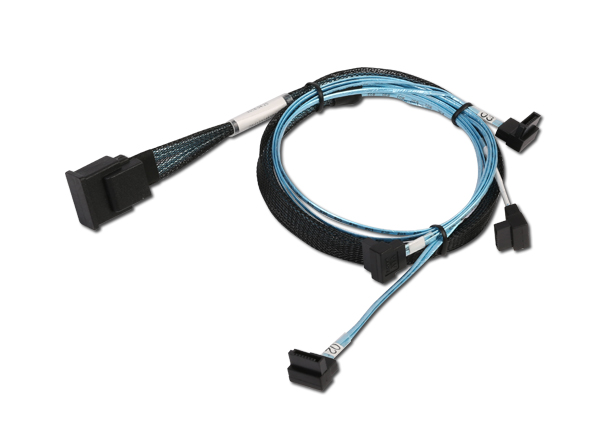

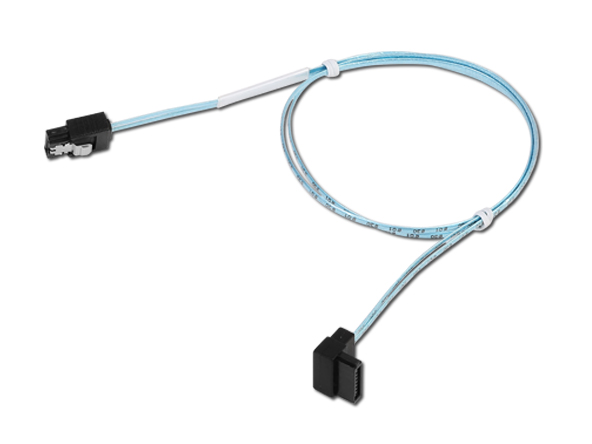

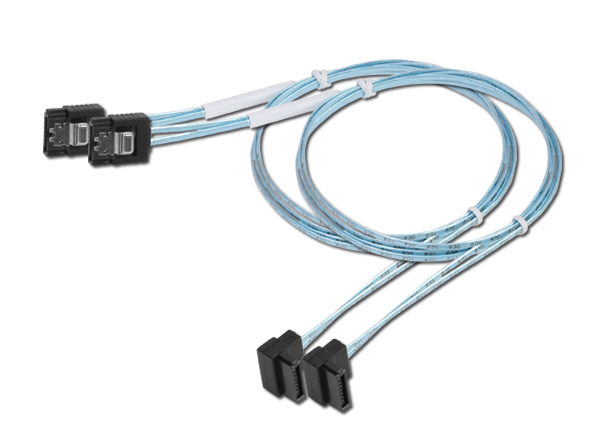

產品類別 料號 規格敘述 支援 Cable 26H12314501A0 SATA (Host) to SATA, 500 mm (for 2.5”/ 3.5" HDD) Cable 26H12314502A0 SATA (Host) to SATA, 600 mm (for 2.5”/ 3.5" HDD) Cable 26H12314503A0 2 pcs, SATA (Host) to SATA, 700 mm (for 2.5”/ 3.5" HDD) Cable 26H12314504A0 2 pcs, SATA (Host) to SATA, 800 mm (for 2.5”/ 3.5" HDD) Cable 26H12314505A0 SATA (Host) to SATA, 900 mm (for 2.5”/ 3.5" HDD) Cable 26H12314506A0 SATA (Host) to SATA, 1000 mm (for 2.5”/ 3.5" HDD) Cable 26H12314507A0 SATA (Host) to SATA, 350 mm (for 2.5”/ 3.5" HDD) Cable 26H12314508A0 SATA (Host) to SATA, 450 mm (for 2.5”/ 3.5" HDD) Cable 26H12314509A0 SATA (Host) to SATA, 550 mm (for 2.5”/ 3.5" HDD) Cable 26H12314510A0 SATA (Host) to SATA, 650 mm (for 2.5”/ 3.5" HDD) Cable 26H12314511A0 Mini-SAS to SATA, 4 pcs, 350/450/550/650 mm (Only for 3.5” HDD) Cable 26H12314512A0 Mini-SAS to SATA, 4 pcs, 500/600/700/800 mm (Only for 3.5” HDD) Cable 26H12314513A0 Mini-SAS to SATA, 4 pcs, 700/800/900/1000 mm (Only for 3.5” HDD) Heat Sink 384-14619-3300A0 Heat Sink I/O Shield 84H313610-022 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH I/O Shield 84H313610-056 I/O GASKET, Gigabyte MX31-BS0 I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS Power Supply 384-14504-3300A0 PSU, 350W, 1U Redundant, YH5401-1RA02R(32H2035002201) ,80+ Silver, w/Bracket Power Supply 84H314510-011 PSU, 400W, 1U Single, FSP400-70LQ( 32H1040000702), 80+ Gold, w/Bracket Riser Card 84H314310-005 1-slot, PCI-e x8, Short Version Riser Card 84H314310-006 1-Slot, PCI-e 16x (80H09319001C0), w/ bracket Slide Rail 84H314510-003 Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 21.4", Loading Weight 18.8 Kg, tool-less Slide Rail 84H323710-002 34“, P2P:28.4" to 37.8", Traveling Distance 35.4", Loading Weight 22.7 Kg, tool-less Click Part. No# to view item picture Support
