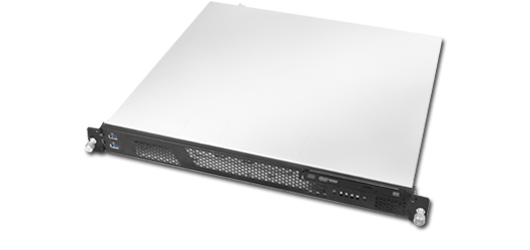

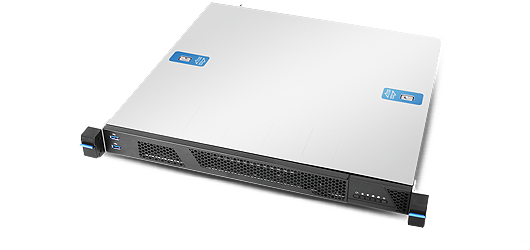

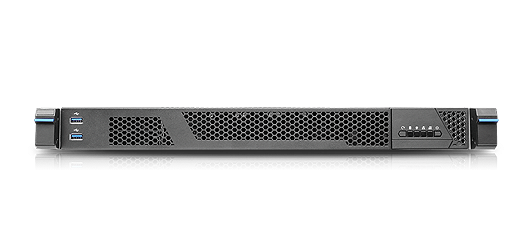

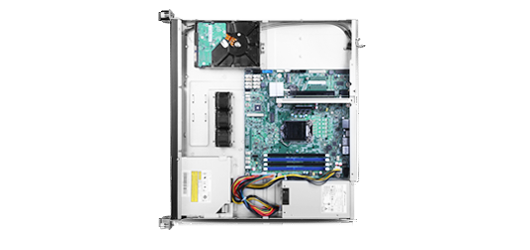

RM14300
1U 可採前置與後置I/O的精簡型伺服器機殼

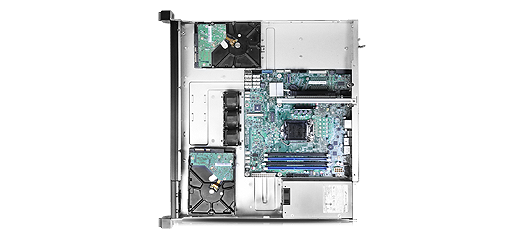

在16吋機箱內，可安裝多達六顆2.5"固態硬碟或三顆3.5" SATA硬碟加三顆2.5"固態硬碟，高儲存容量使應用更廣泛。高度模組化且支援前方I/O與後方I/O，提供彈性化的組態，協助降低庫存積壓及銷售成本。
比較
清除 執行
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
搜尋
比較
特點與利益

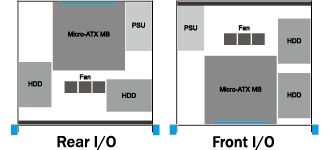

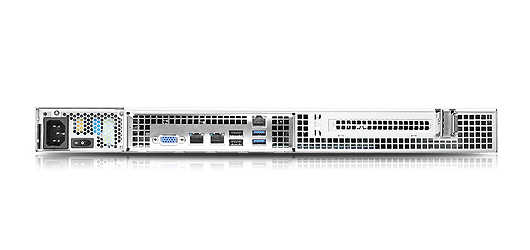

  • 支援前窗及後窗主機板 I/O 插槽任意調換
  • 可選擇免工具安裝(RM14300-EZ)或鎖螺絲安裝(RM14300)的3.5" 硬碟合併2.5"固態硬碟支架
  • 選配硬碟支架，可彈性化配置機箱內部硬碟組態
  • 具防震功能的4公分 PWM 風扇(可支援至4.8公分厚)
  • 支援 Flex ATX 電源
  • 規格
  • 下載
  • 選配件
  • 相容列表
  • 主機板尺寸 uATX (9.6" x 9.6")
    外觀尺寸 (深 x 寬 x 高) 409.0 x 438.5 x 43.2 (mm)
    16.10" x 17.26" x 1.70"
    儲存媒體插槽 Internal 3.5"：2
    Internal 2.5"：2
    Slim ODD：option
    電源供應器 Flex ATX
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    前置控制 1 x Power On/Off
    1 x System Reset
    2 x USB3.0
    系統安全裝置 N/A
    風扇 3x 40mm(T=28mm, up to 48mm), PWM
    擴充槽 1 x Full Height & Half Length
    硬碟熱插拔背板 N/A
    淨重 4.2 kg/9.25 lb
    毛重 6.2 kg/13.66 lb
    材積 1.21
    裝櫃數量(單包) 20': 720, 40': 1512
  • 類別 規格敘述 版本 大小 下載
    Configuration Guide RM14300 Configuration Guide V1.0 441.1 KB
    Quick Installation Guide RM14300_Quick Installation Guide V1.1 7.9 MB
    Technical Product Specification (TPS) RM14300 TPS V1.0 3.0 MB
  • 產品類別 料號 規格敘述 支援

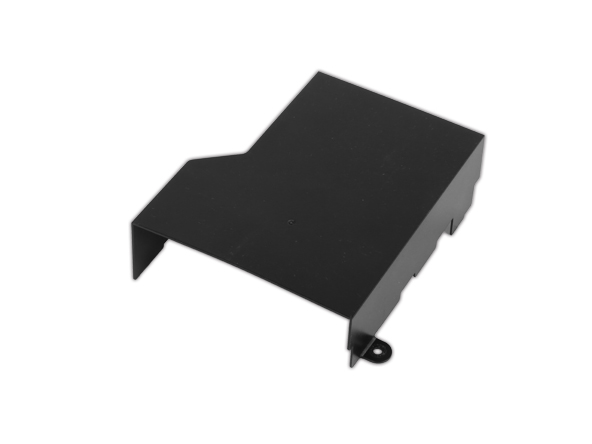

    Air Duct
    84H314910-080    		 Air Duct, For Intel S1200SPS , S1200SPO , S1200SPL
    Cable

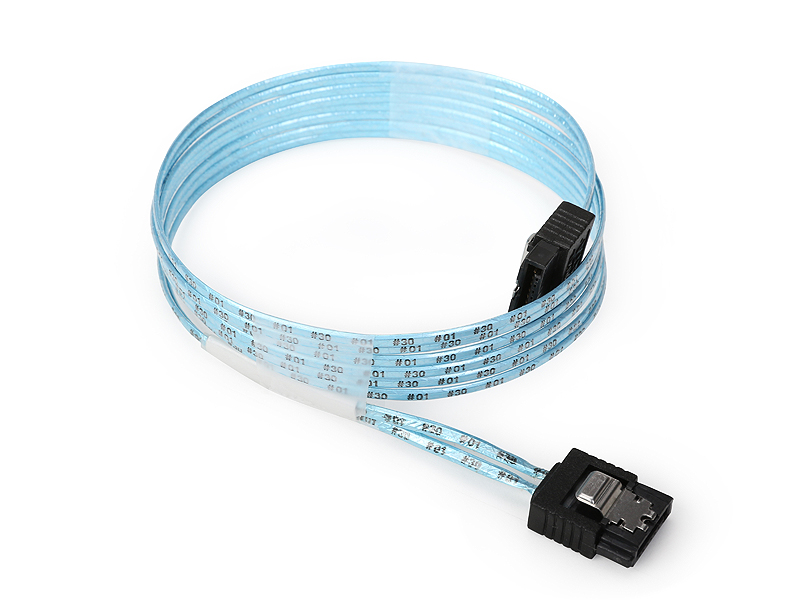

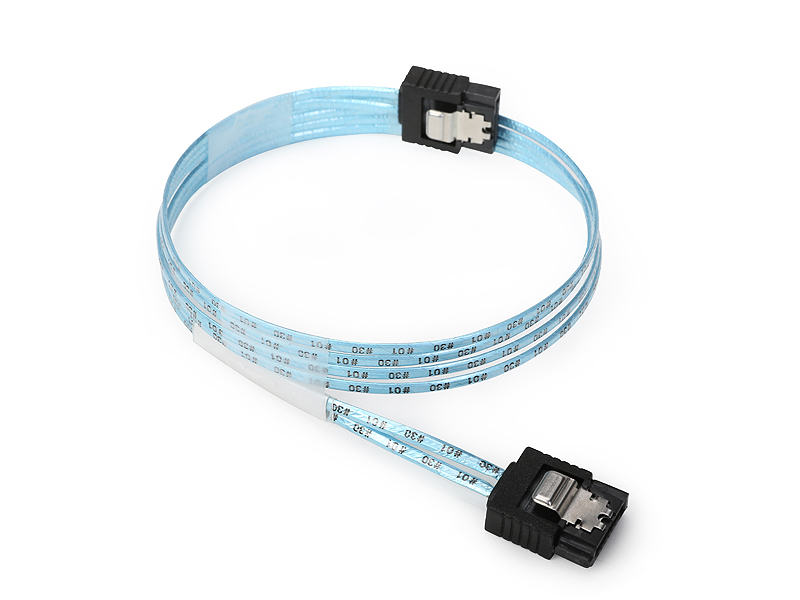

    384-14620-3304A0    		 Cable, SATAIII, 600mm, w/Lock
    Cable

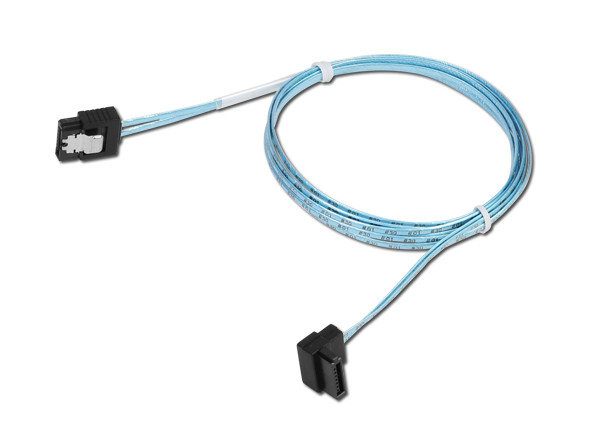

    384-14620-3307A0    		 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment
    Cable

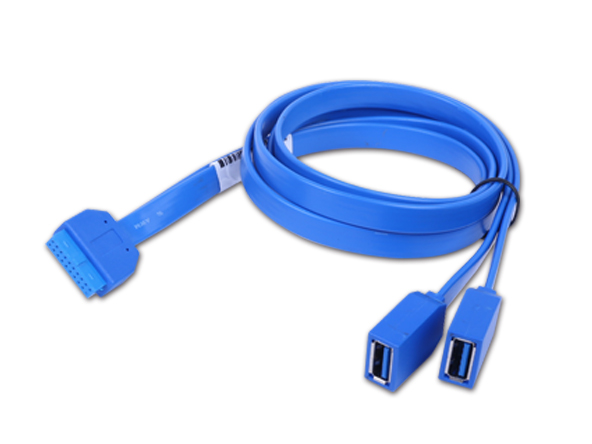

    384-14620-3308A0    		 USB3.0, 2 x Type A Port(26H03342203A0), 750mm
    Cable

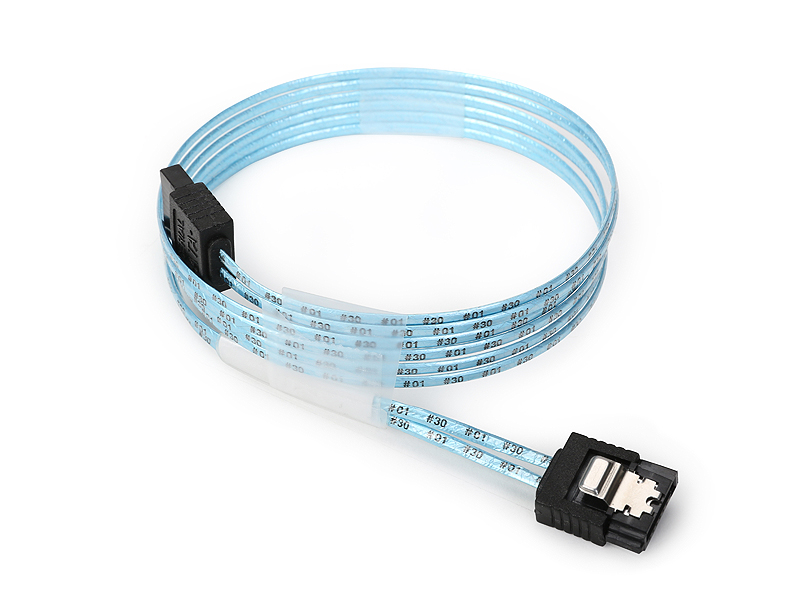

    384-14620-3309A0    		 Cable, SATA III, 350mm, w/Lock
    Cable
    384-14620-3310A0    		 Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment
    Cable
    384-14620-3311A0    		 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment
    HDD Carrier

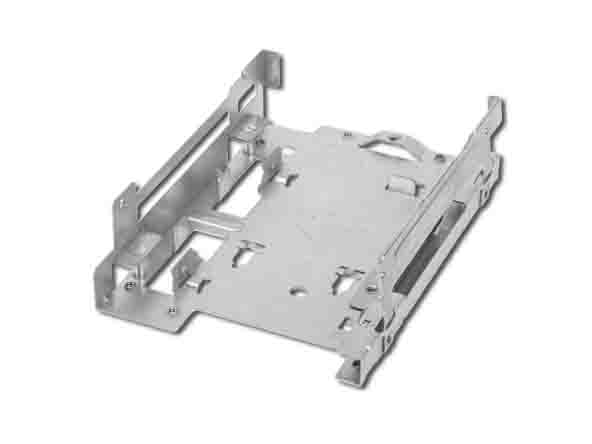

    84H314310-007    		 Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    HDD Carrier

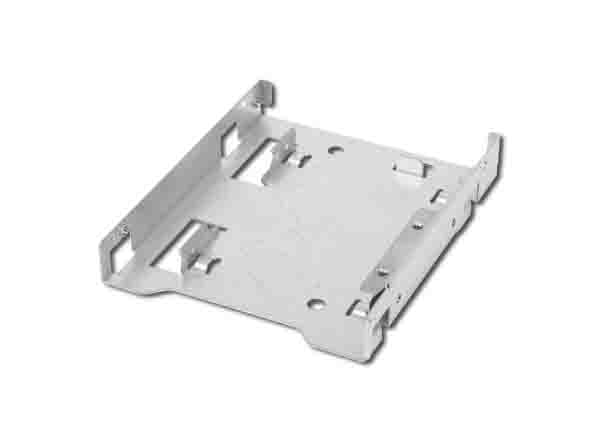

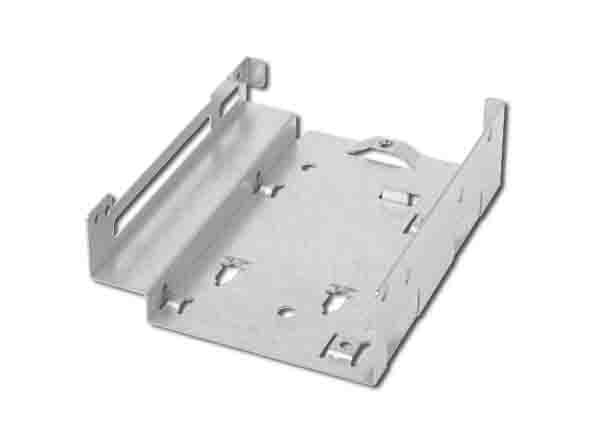

    84H314310-008    		 HDD Bracket, 1 x 2.5" bay, Non Tool-less Installation (3.5" to  2.5")
    HDD Carrier
    84H314910-092    		 Non Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD

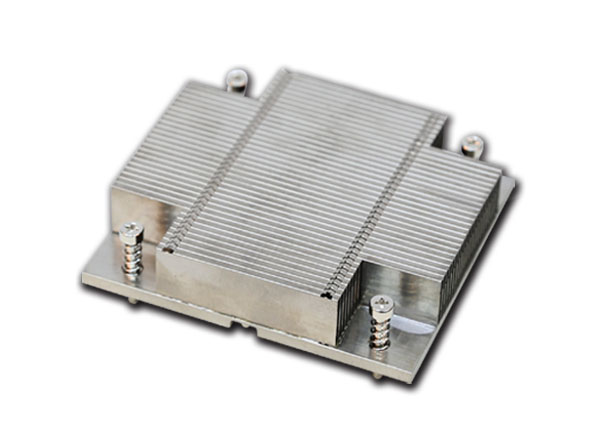

    Heat Sink
    384-14619-3300A0    		 Heat Sink

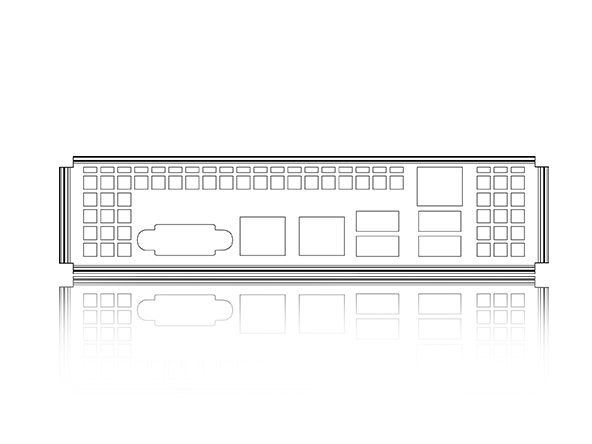

    I/O Shield
    84H313610-022    		 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH
    I/O Shield
    84H313610-056    		 I/O GASKET, Gigabyte MX31-BS0
    I/O Shield
    84H314610-009    		 1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    Power Supply

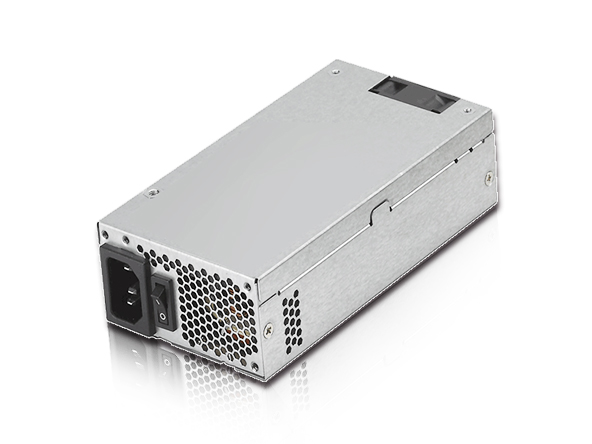

    84H314310-013    		 PSU, 200W, Full Range, w/PFC, FSP200-50LG(32H1022000702)
    Rack Handle

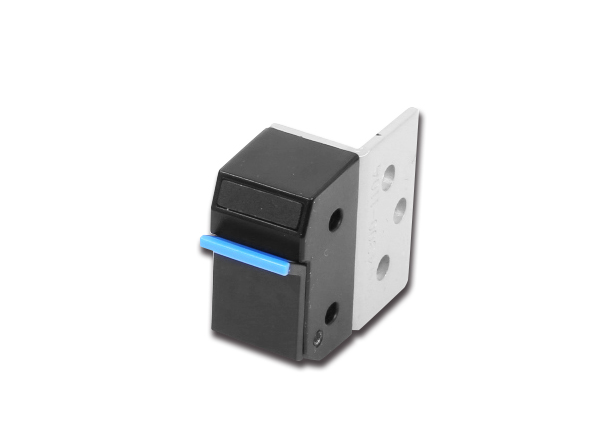

    384-14309-3011A0    		 Latch-type Rack Handle, Black (Left)
    Rack Handle
    384-14309-3012A0    		 Latch-type Rack Handle, Black (Right)
    Rack Handle

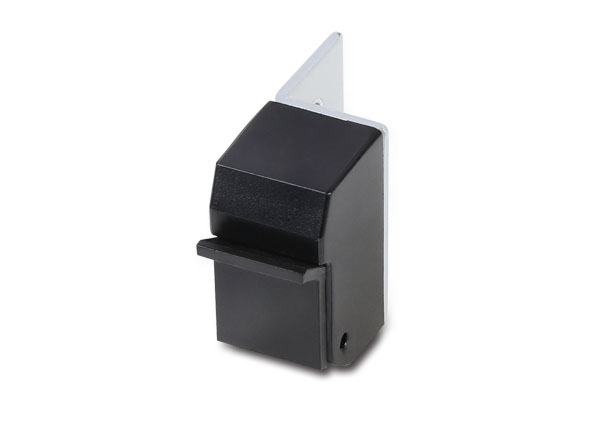

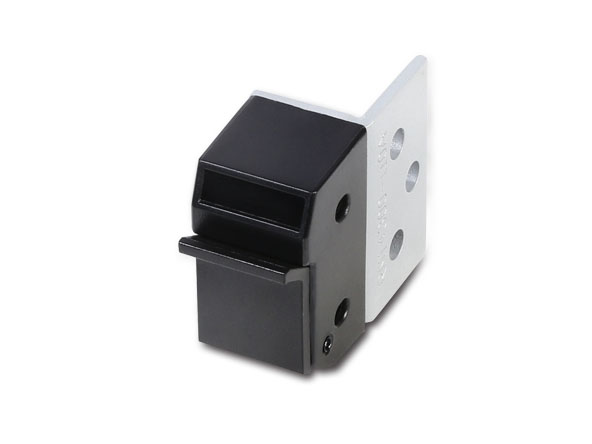

    84H314310-009    		 Latch-type Rack Handle (Left)
    Rack Handle
    84H314310-010    		 Latch-type Rack Handle (Right)

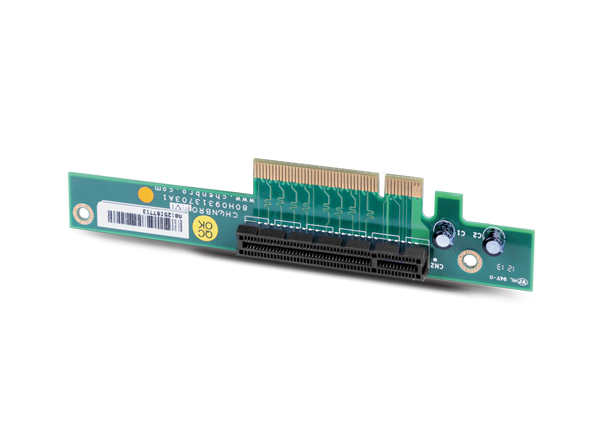

    Riser Card
    84H314310-005    		 1-slot, PCI-e x8, Short Version
    Riser Card

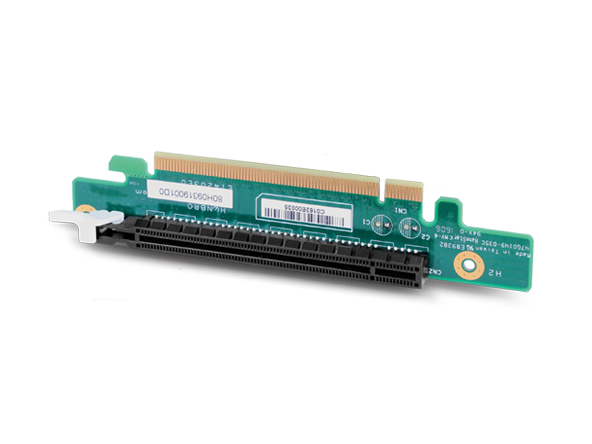

    84H314310-006    		 1-Slot, PCI-e 16x (80H09319001C0),  w/ bracket
    Slide Rail

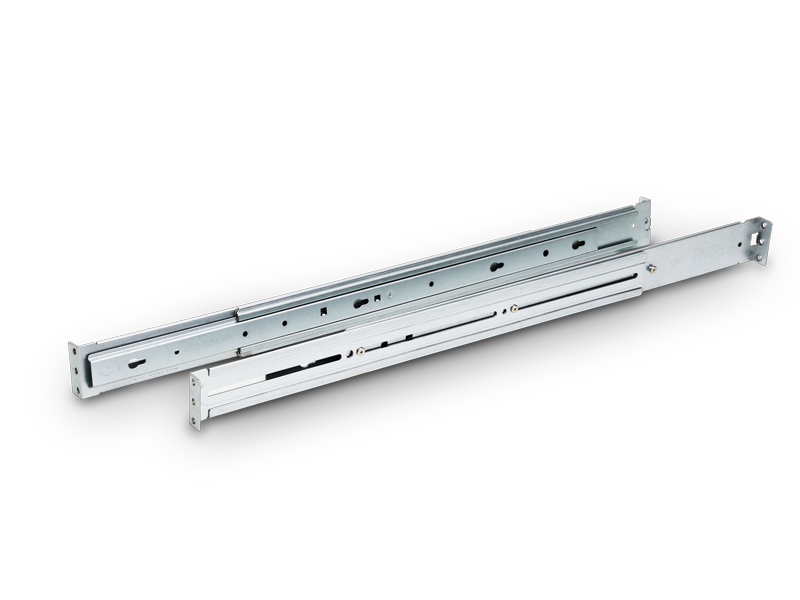

    384-14303-3100A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-14303-3101A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    拉柄

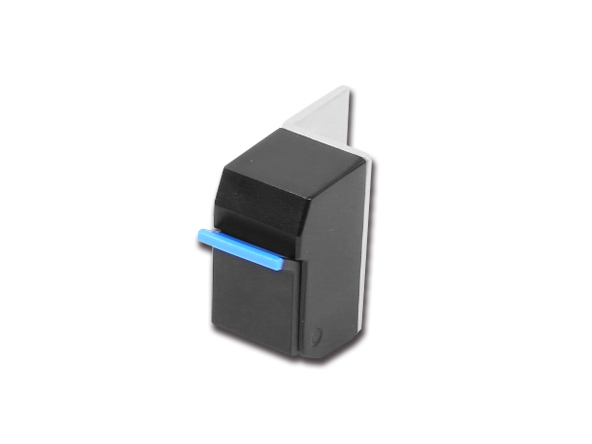

    84H314310-009    		 Cabinet Mounting Bracket, plastic part with latch, Black/Blue, Left
    拉柄
    84H314310-010    		 Cabinet Mounting Bracket, plastic part with latch, Black/Blue, Right
