比較
特點與利益
- 支援MB尺寸高達16.7“x 17”(自定義)

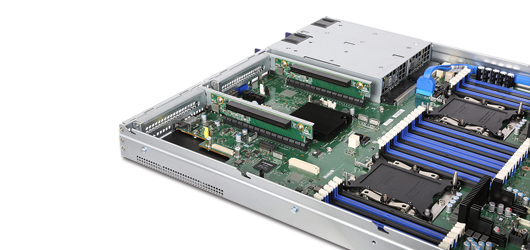

- 支援Intel S2600WT和S2600WF系列主板
- 硬盤盒的模塊化設計
- 免工具2.5“/ 3.5”硬盤托盤
- 多樣化的12Gb / s HDD背板,可實現靈活的存儲配置
- 支援兩個全高PCI-e插槽
- 支援1 + 1冗餘CRPS PSU
- 規格
- 下載
- 選配件
- 相容列表
-
主機板尺寸 16.7" x 17" (Custom) 外觀尺寸 (深 x 寬 x 高) 735.0 x 438.5 x 43.2 (mm)
28.94" x 17.26" x 1.70"儲存媒體插槽 RM13804 (3.5" Hot-swap):4
RM13804 (2.5" Internal):2
RM13804 (Slim ODD):1

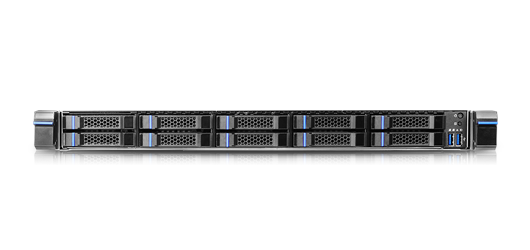

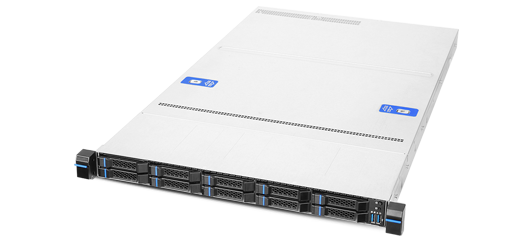

RM13810 (2.5" Hot-swap):10
電源供應器 1+1 CRPS 前置指示燈 1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x UID
1 x System Alarm前置控制 1 x Power On/Off
1 x UID
2 x USB3.0系統安全裝置 Intrusion Switch (Option) 風扇 RM13804 Middle : 6 x 40mm (T=28mm) (Maximum to T=56mm, Up to 8 units)
RM13810 Middle : 6 x 40mm (T=28mm) (Maximum to T=56mm, Up to 8 units)擴充槽 2 x Full Height & Half Length 硬碟熱插拔背板 RM13804 : 3.5" 4-port 12Gbps, Mini-SAS HD
RM13810 : 2.5" 10-port 12Gbps, Mini-SAS HD淨重 11.6 kg/25.55 lb 毛重 15.3 kg/33.70 lb 面板 Option 材積 3.48 裝櫃數量(單包) 20': 200, 40': 380 -
類別 規格敘述 版本 大小 下載 Datasheet RM138 Series Datasheet V1.3 V.1.3 2.9 MB User Manual RM138 Series User Manual V1.1 V1.1 3.0 MB -

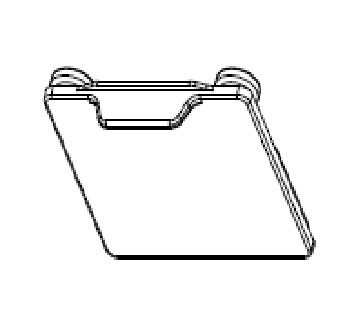

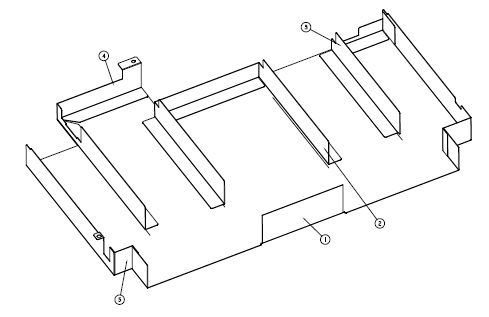

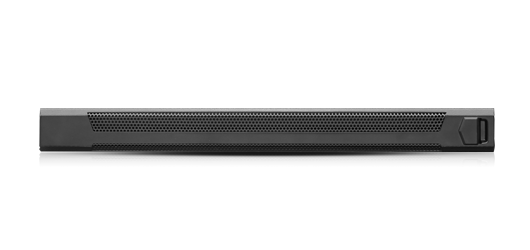

產品類別 料號 規格敘述 支援 Air Duct 384-13815-3100A0 Air duct, Plastic, RM13804-307A, PC mylar, 94V-0, BK, for Fan 4056 Bezel 384-14605-3100A0 Front Bezel, 1U, Metal, Black Bracket 55H073219A004 Dummy Cover, for CRPS Module Opening

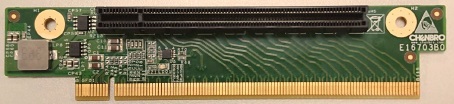

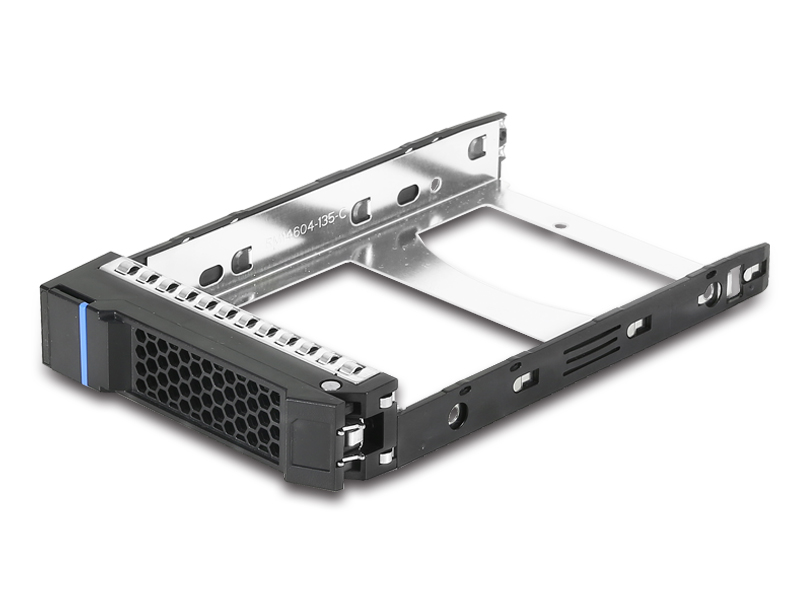

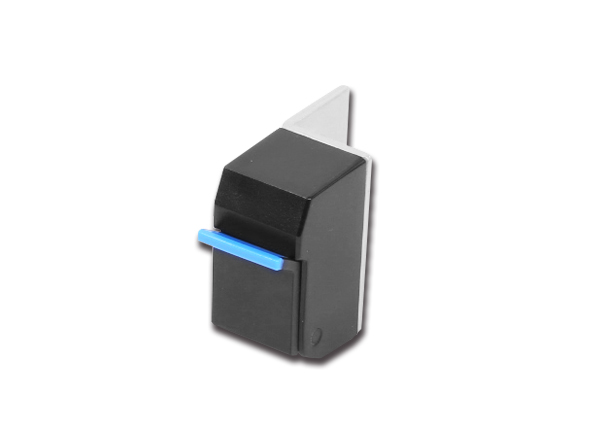

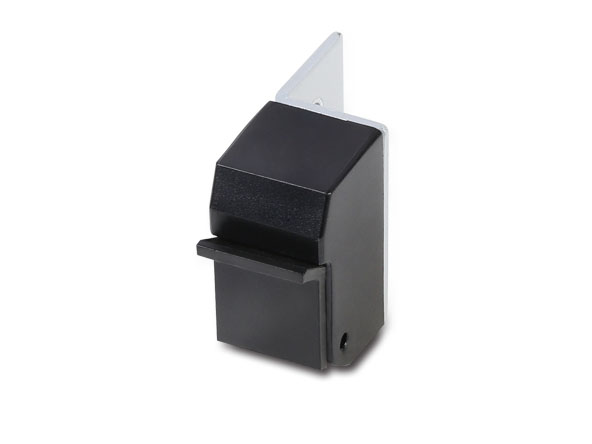

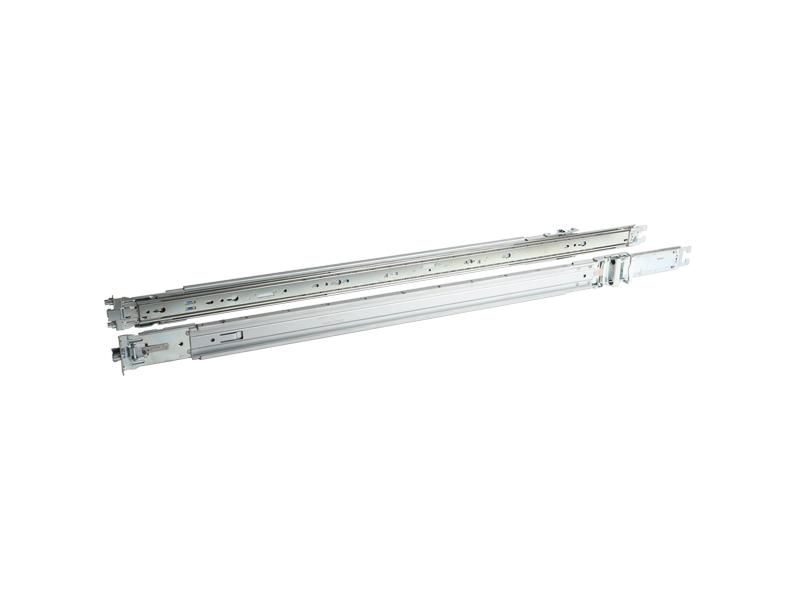

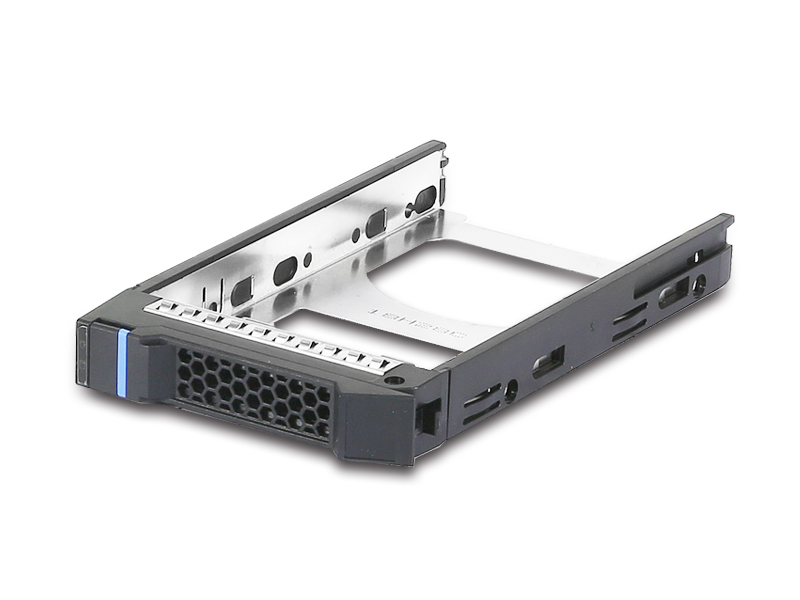

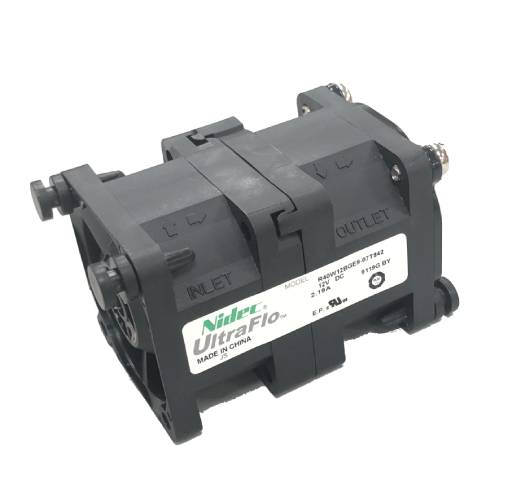

Cover 50H033137B006 Cover Fan, plastic, RM13704-50B, ABS 94V-0, BK CC1012 Fan 383-13830-3004A0 AS'Y MISC., Fan (4056), Nidec, RM13804, w/Fan guard & screw HDD Kit 370-13310-3005A0 HDD Kit, screw packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS, for screw-on HDD tray HDD Kit 370-13310-3006A0 HDD Kit, screw packing, 3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS, for screw-on HDD tray HDD Tray 383-14655-3034B0 2.5" HDD Tray, screw-on HDD Tray 84H314610-005 3.5" HDD Tray, panel BK, screw-type Rack Handle 384-14609-3100A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left Rack Handle 384-14609-3101A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right Rack Handle 84H314610-025 Latch-type Rack Handle (Right) Riser Card 380-13809-3000A0 Riser Card, 1-slot, PCI-e 16x(RM13804b002), w/o PCIe holder, for RM138 series (for Intel 2600 MB Only) Riser Card 384-14612-3101A0 Riser card, 1-slot, PCIe 16x (RM13804b002), with PCIe holder and packing, for RM138 series (for Intel 2600 MB Only) Slide Rail 384-23903-3300B0 32.8“ slide rail, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less 拉柄 84H314610-025 Latch-type Rack Handle (Right) Click Part. No# to view item picture Support
