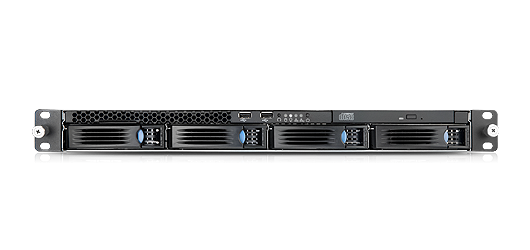

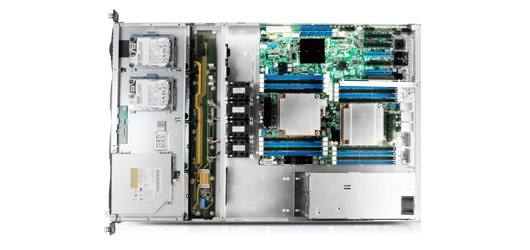

RM13604

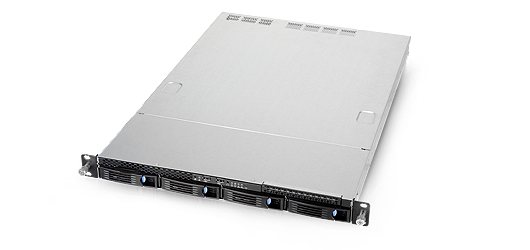

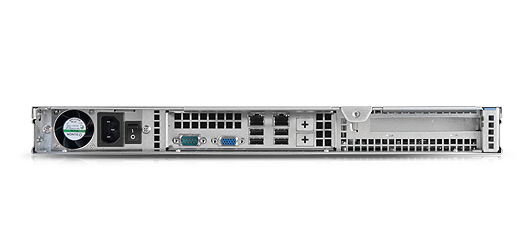

1U 入門運算與儲存伺服器機殼
支援四顆3.5"熱插拔SAS/SATA硬碟，具有多處專利設計的免工具安裝。水平式背板、防迴流設計與智慧風扇控制，使得它可以操作在較高的環溫，是節能的最佳選擇。
比較
特點與利益
- 免工具安裝2.5"硬碟、擴充卡架與風扇
- 具智慧風扇控制的水平安裝6Gb/s熱插拔背板
- 支援4埠 12Gb/s 或 6Gb/s SATA 背板
- 具防震設計的中置風扇
- 3.5"硬碟拖盤可支援3.5"硬碟及2.5"硬碟/固態硬碟
- 前置訊息標籤，方便伺服器管理
- 規格
- 下載
- 選配件
- 相容列表
-
主機板尺寸 SSI EEB (12" x 13") 外觀尺寸 (深 x 寬 x 高) 666.6 x 430.0 x 43.5 (mm)
26.24" x 16.93" x 1.71"儲存媒體插槽 Slim ODD：1
3.5" Hot-swap：4
Internal 2.5"：2
電源供應器 1U Single or 1+1 Redundant 前置指示燈 1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x System Alarm前置控制 1 x Power On/Off
1 x System Reset
2 x USB2.0/USB3.0 (option)系統安全裝置 N/A 風扇 Middle: 4 x 40 mm, T=28 mm (Up to T=56mm ) (Up to 6 ) 擴充槽 1 x Full Height & Half Length 硬碟熱插拔背板 3.5" 4-port 12Gbps, SATA 7pin 淨重 6.8 kg/14.98 lb 毛重 9.0 kg/19.82 lb 面板 N/A 材積 2.04 裝櫃數量(單包) 20': 450, 40':930, 40'H:1050 -
類別 規格敘述 版本 大小 下載 Datasheet RM13604 Datahseet V1.2 1.2 MB
Firmware Intel S2600CW SDR for SKU RM13604T2-CW X00 7.3 KB
User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane (80H10313601A0), Rev. A0 V1.0 416.0 KB
User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
-

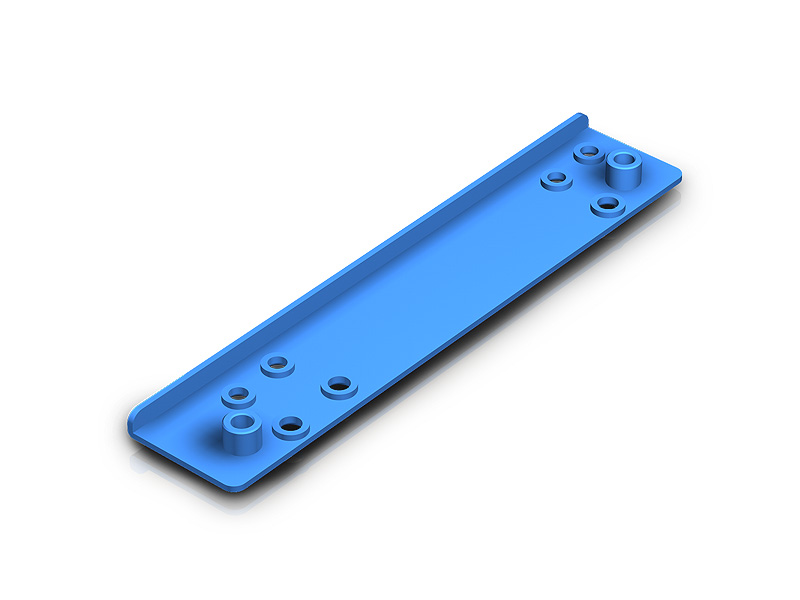

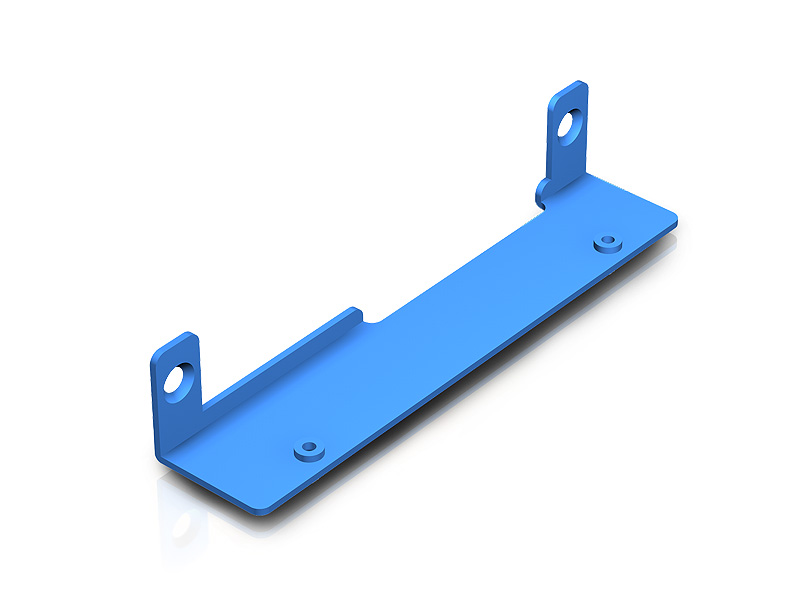

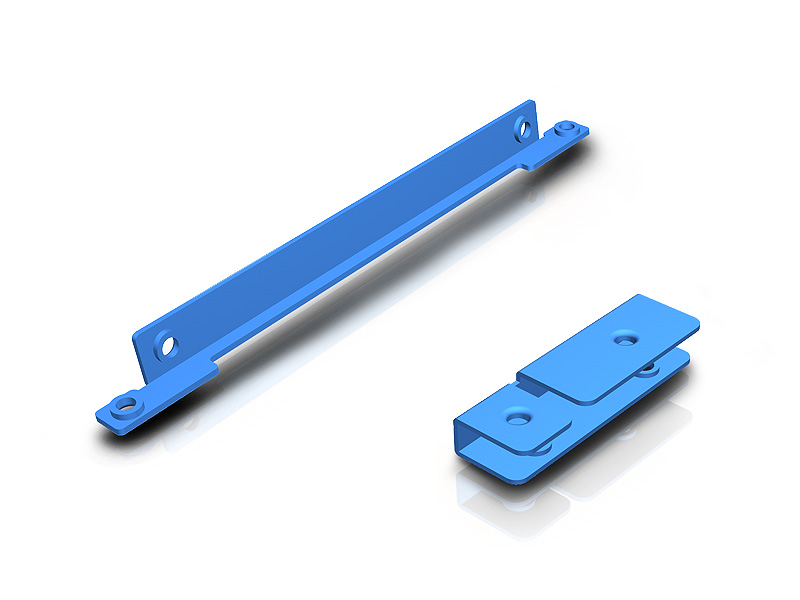

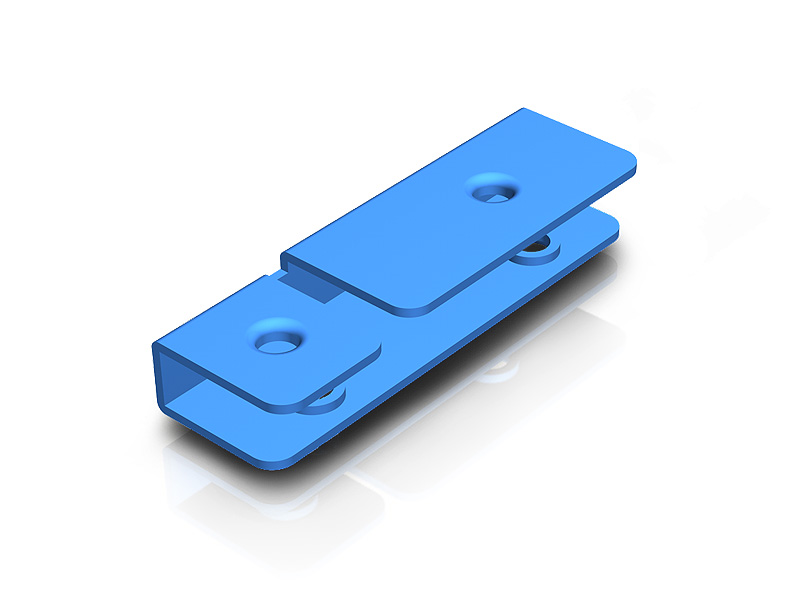

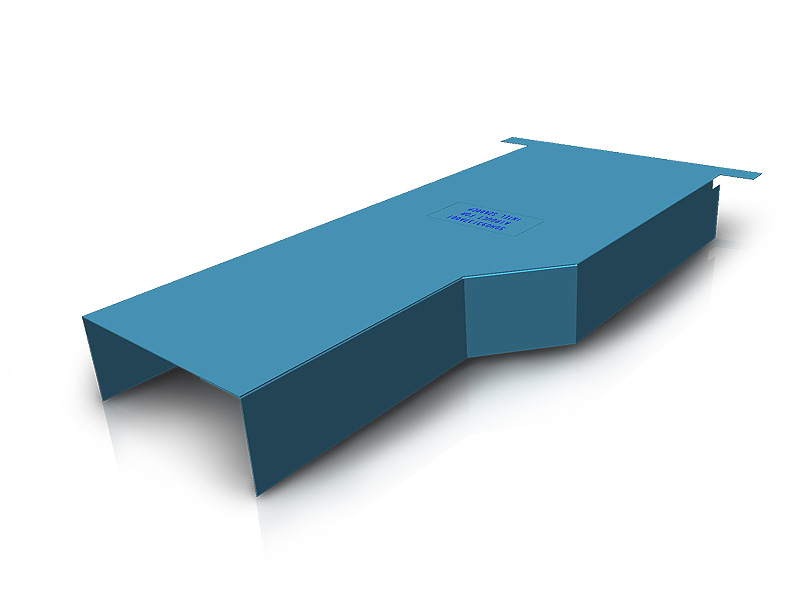

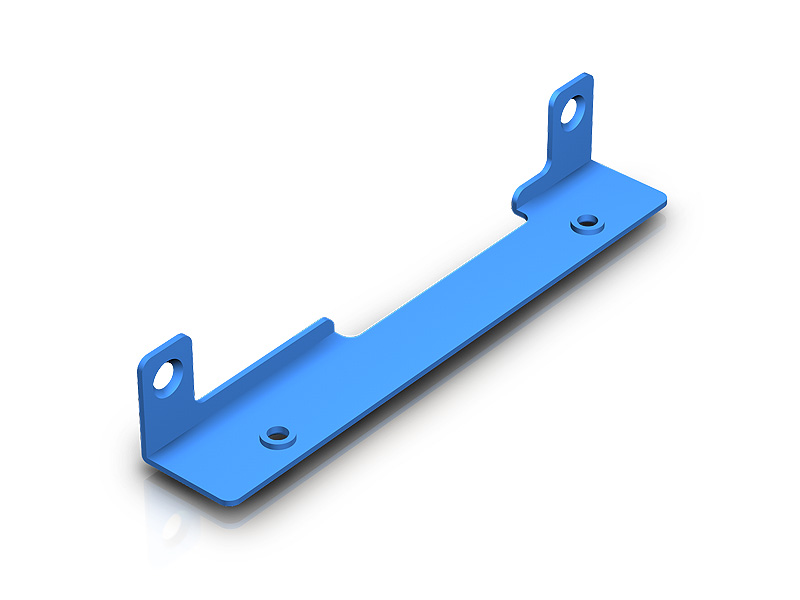

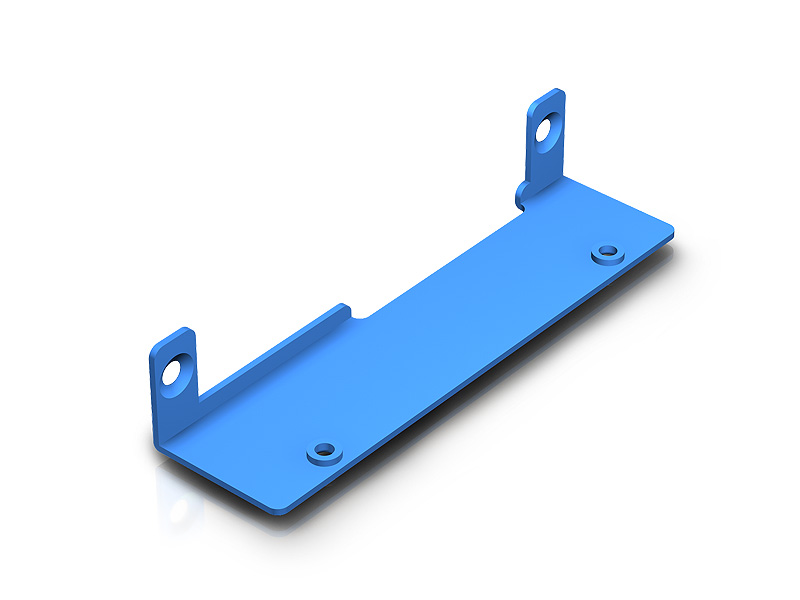

產品類別 料號 規格敘述 支援 Air Duct 50H093137A001 Air Duct, PVC, For Intel S2600CP Bracket 84H312410-070 Bracket, PSU, 1U, For P1H-5400VP/P1H-5500V Bracket 84H313610-005 Bracket, PSU, 1U, For YH-8651BA11R Bracket 84H313610-007 Bracket, PSU, 1U, For AcBel FS9029-7H1G Bracket 84H313610-012 Bracket, PSU, 1U, For M1U2-5650V4H Bracket 84H313710-002 Bracket, PSU, 1U, For FSP500-701UP Bracket 84H313710-007 Bracket, PSU, 1U, For FSP460-701UH Cable 26H12323601A0 Cable, mini-SAS(Host) to 4x SATA, w/Sideband, 600mm

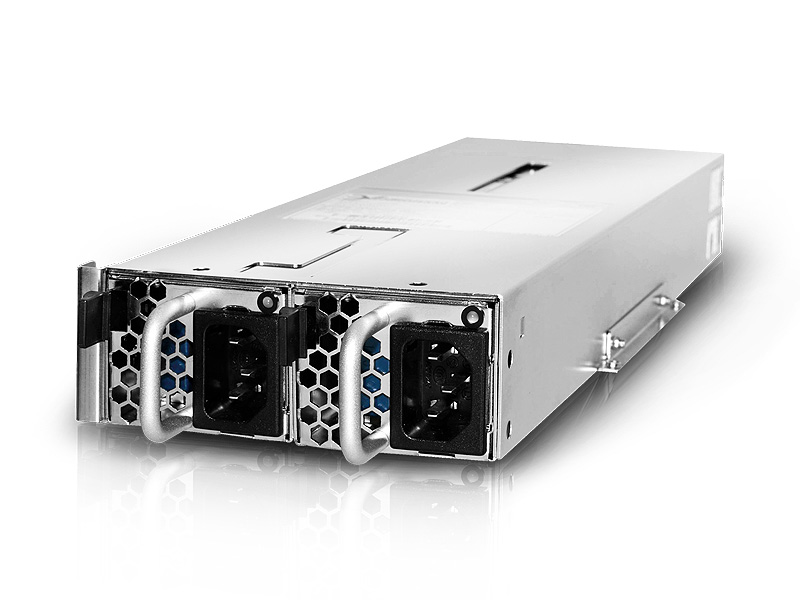

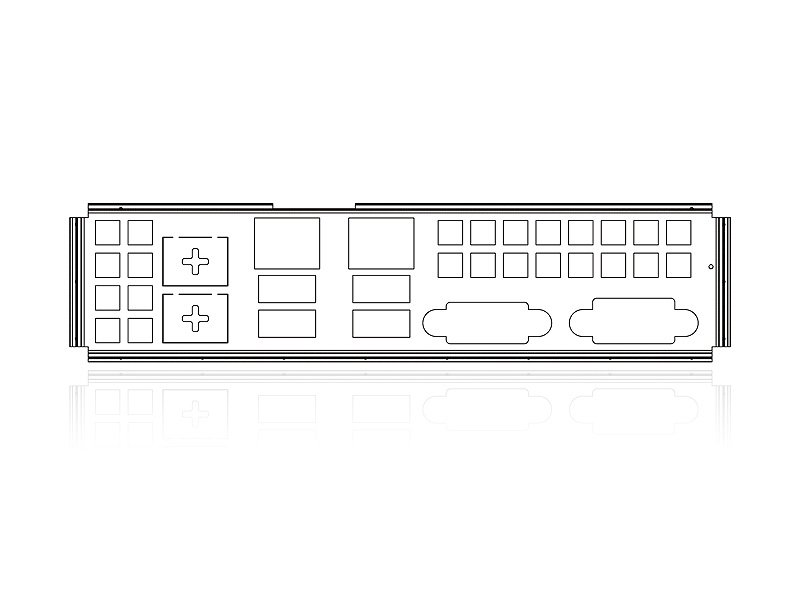

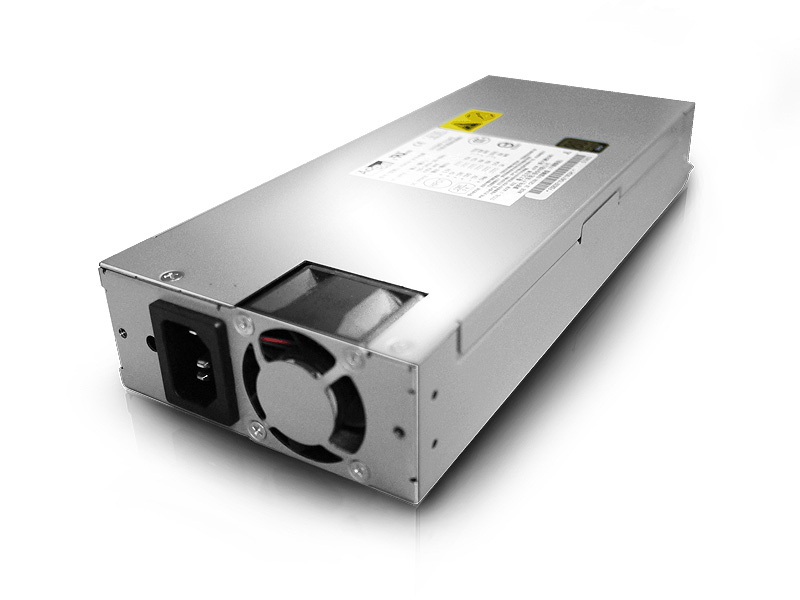

I/O Shield 84H313610-022 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH I/O Shield 84H313710-009 1U, For Intel S2600CP/S2600CO I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS Power Supply 32H1050001101 PSU, 500W, 1U Single, Acbel FS9029-7H1G, 80+ Gold Power Supply 32H2065002202 PSU, 650W, 1+1 Redundant, YH-8651BA11R, PMBus 1.1 Riser Card 80H09313702A0 1-slot, PCI-e x16, Short Version Riser Card 80H09313703A1 1-slot, PCI-e x8, Short Version Slide Rail 84H311610-082 Slide Rail, 26", Tool-less Slide Rail 84H311710-095 Slide Rail, 26" Click Part. No# to view item picture Support
