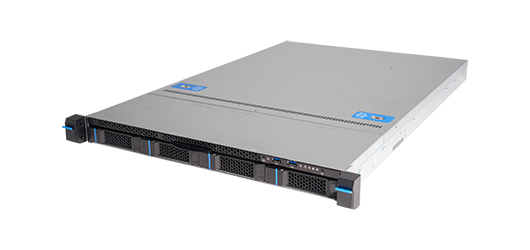

RM13304MR
1U 通用存儲伺服器機箱
支持雙薄型轉接卡和單 PSU,可冷插拔以解決存儲和計算應用程序。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益

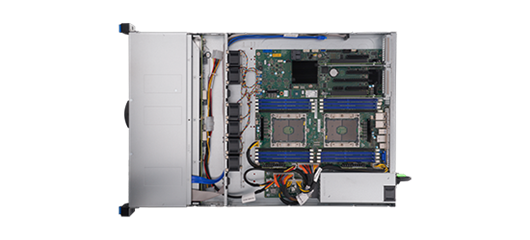

  • Rackmount 1U support EEB ( 12" x 13") board form factor and used for shadow core dual processor
  • Two PCIe Gen3 x16 add-in card slot and low profile on slot 2 & 6.
  • 4 Bays 3.5" hot-swappable storage support SAS/SATA HDD, internal 2 x2.5" HDD and 1 x Slim ODD support
  • 800W single cold pluggable power supply
  • 26" slide rail support
  • Specification
  • Download
  • Accessory
  • Compatibility
  • 主機板尺寸 SSI EEB (12” x 13”)
    外觀尺寸 (深 x 寬 x 高) 661.3 x 438.5 x 43.5 (mm)
    儲存媒體插槽 External: 4 x 3.5" HDD, Hot swap:

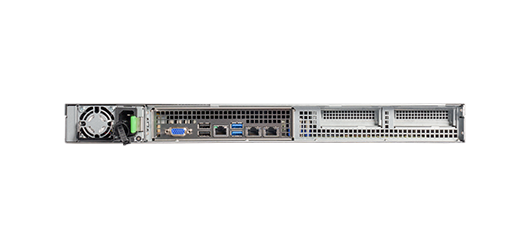

    電源供應器 1U Single CRPS with PDB, 800W (80+, Platinum)

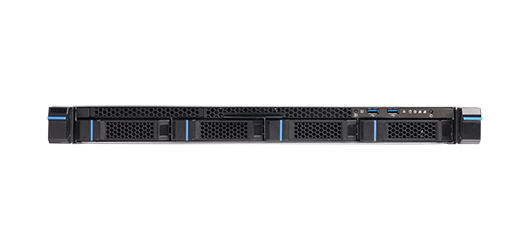

    前置指示燈 1 x Power Status, 2 x LAN Activity,
    1 x HDD Activity, 1 x System Alarm
    前置控制 1 x Power On/Off, 1 x System Reset, 2 x USB3.0
    系統安全裝置 Intrusion Switch & Security Bezel (Option)
    風扇 6 x 40mm (T:28mm), 23000 RPM, PWM, Hot-swap
    2 x Dummy Cover, 1 x Air Duct (Option)
    擴充槽 2 x PCIe x16 Riser Card, Supports Low Profile (*Slot 2 & 6)
    硬碟熱插拔背板 4-port 12Gb/s SAS/SATA
  • 類別 規格敘述 版本 大小 下載
    Datasheet Datasheet RM13304MR v1.0 507.0 KB
