RM13304 MIO
1U 4 Bay 多 I/O 存儲伺服器機箱

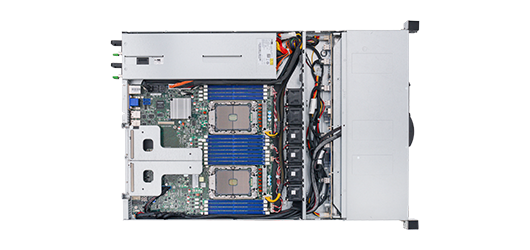

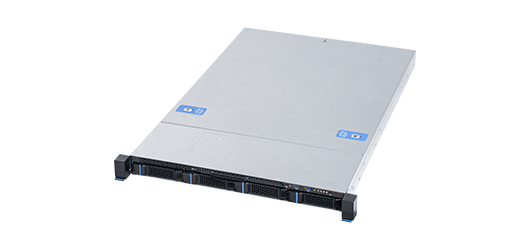

1U 存儲伺服器機箱配置 4 x 3.5" Combo Bay 熱插拔 HDD,高達 EATX M/B,具有多 I/O 吞吐量支持,適用於雲高性能計算和資料存儲備份應用。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • Supports EEB (12" x 13") board form factor and uses spread core with a dual processor for well thermal performance

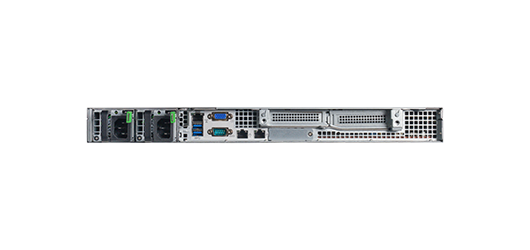

  • Supports two HHHL PCIe x16 Gen 4 added-in card slots and rear access panel for multiple I/O throughput cloud data streaming
  • 1+1 Slim Redundant 750W power supply for system reliability
  • Versatile front storage configuration supported for data storage backup

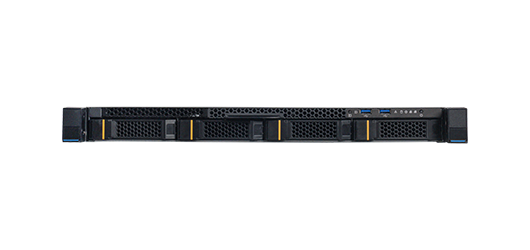

  • -4 x 3.5” Combo Bay (SAS/SATA/NVME Gen 4 ) hot-swappable HDD, internal 2 x 2.5“ HDD, and 1 x Slim ODD device

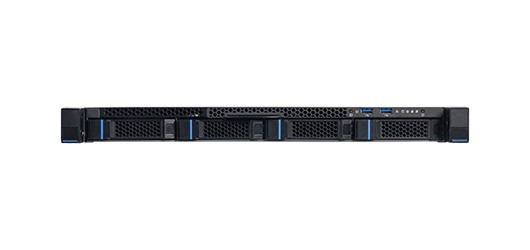

  • -4 x 3.5” Bay (SAS/SATA) hot swappable HDD, internal 2 x 2.5” HDD, and 1 x slim ODD device
  • Sliding rail supported for easy maintenance
  • Specifications
  • Download
  • Accessory
  • Compatibility
  • Order information
  • 主機板尺寸 Intel M20NTPSB (12” x 13.1"), Tyan 7126 (12" x 13“)
    外觀尺寸 (深 x 寬 x 高) 660mm x 438.5 mm x 43.4mm ; 26’’ x 17.6’’ x 1.7’’
    電源供應器 1U Slim Redundant (1+1), 750W (80+ Platinum)
    前置指示燈 1 x Power Status ,2 x Lan Activity, 1 x UID , 1 x System Alarm,1 x HDD Status
    前置控制 1 x Power On/Off, 1 x UID , 2 x USB 3.0
    風扇 6 x 40mm (T:28mm) ,23000 RPM, PWM w/ 2 x Dummy Cover , 1 x Air Baffle
    擴充槽 Dual riser by butterfly bracket
    1 x Low Profile and Half Length(Intel # M20NTP1URISER1 or Tyan # M7126R16 1F , 1 x PCIe 4.0 x16 supported)
    1 x Low Profile and Half Length(Intel # M20NTP1URISER2 or Tyan # M7126L16 1F , 1 x PCIe 4.0 x16 supported)
    硬碟熱插拔背板 SKU1: 4Bay (12Gbps SAS/SATA)
    SKU2: 4Combo Bay (12Gbps SAS / SATA / Gen 4 NVME )
    淨重 10.2kg
    毛重 12.7kg
    材積 840*595*170mm (3.001 ft3)
    裝櫃數量(單包) 20’=240pcs(w/ Pallet)
    40’=440pcs(w/ Pallet)
  • 類別 規格敘述 版本 大小 下載
    Datasheet RM13304MIO datasheet v1.0 658.6 KB
  • 產品類別 料號 規格敘述 支援

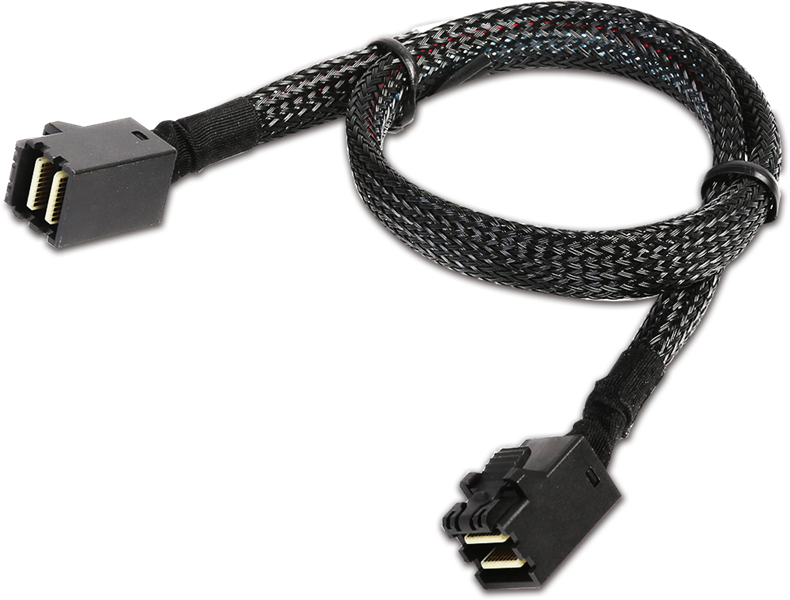

    Cable
    126-30000-0136A0
    Slim SAS 4i to 4i cable
    CMA

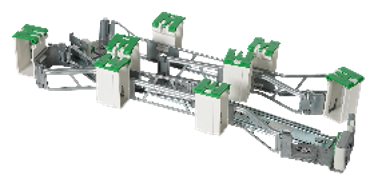

    384-CMA00002S0A0

    CMA Kit

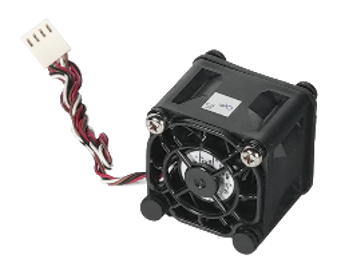

    Fan
    384-FAN00221B0A0

    23000 RPM 4028 Fan(w/ finger guard , rivet)

    HDD cable
    126-14512-3027A0

    HDD Cable:miniSAS-HD 750mm

    PSU module
    132-X0000-0001A0

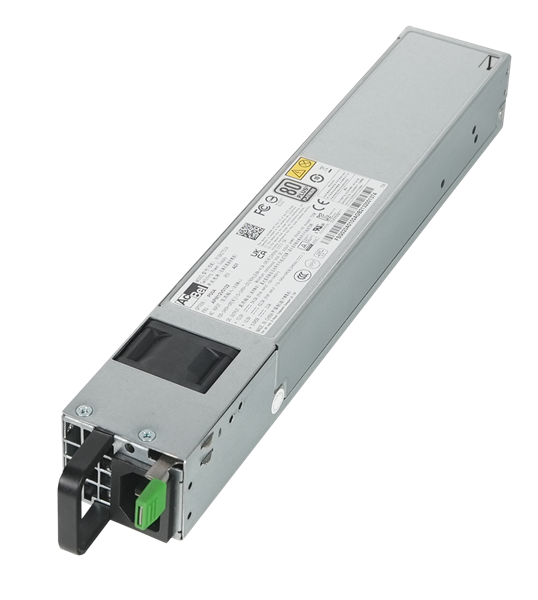

    750W Slim PSU module

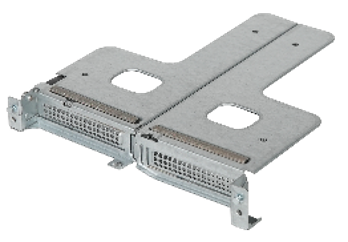

    Riser Card Retention
    384-MEC02438B0A0

    Riser Card Retention(w/o riser card)

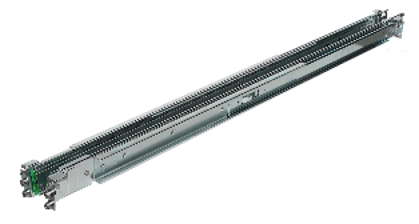

    Slide Rail
    384-RAL00024S0A0
    Click Part. No# to view item picture
  • 訂購碼
    RM13304-M3-RP8-MR
    RM13304-N4-RP8-MR
