RB251 Series
2U高運算效能準伺服器
RB251系列支援第三代Intel Xeon可擴充系列處理器，最多可配備24個記憶體插槽，針對企業及雲端應用，滿足高效運算需求。
比較
特點與利益
- Intel® Server Board M50CYP2SBSTD
- 3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189
- High performance SAS/SATA/NVMe Gen 4 storage, up to 24 x 2.5” or 12 x 3.5” HDD
- Support for up to 8 PCIe 4.0 slots: 6 x full-height, 2 x half-height
- 1+1 redundant CRPS, 2000W
- Flexible ethernet with support for OCP 3.0 module per server
- Higher memory capacity, up to 12TB memory, 32 DIMMs per system

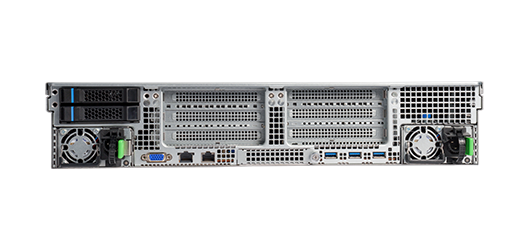

- 2-Bay 2.5" hot-swap HDD or 2x PCIe low profile in the rear
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
機殼高度 2U 主機板 Intel M50CYP2SBSTD (Coyote Pass) 處理器 3rd Gen Intel Xeon Scalable Product Family, up to 270W
Dual Socket-P4 LGA4189處理器插槽 Dual Socket-P4 LGA4189 晶片組 C621A 記憶體類型 Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM 記憶體容量 Up to 12TB Memory 最大記憶體插槽 32 DIMMs (16 per CPU), 8 Channels 處理器散熱器 2U Passive with Air Duct (or 1U Passive with Air Duct - GPGPU Required) I/O模組 OCP 3.0 外觀尺寸 (深x 寬 x 高) 770 x 438 x 87.0 mm;
30.3” x 17.24” x 3.4”儲存媒體插槽 Rear Storage:：
- 2 x Internal Fixed Mount 2.5” SSDs (* Power Cable Option)：
- 2-Bay 2.5” HDD Hot Swappable, Supporting 7mm SSD or 15mm NVMe (Option)：
* NVMe module must be option with cooling fan kit (2pcs)：
* Shared PCIe low profi le space, need to remove riser card w/ bracket：
2.5” SKUs:：

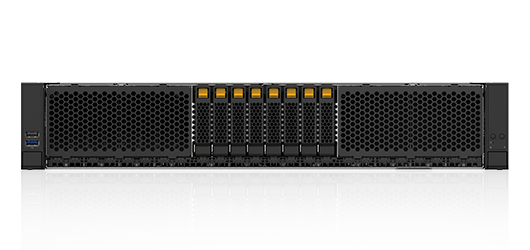

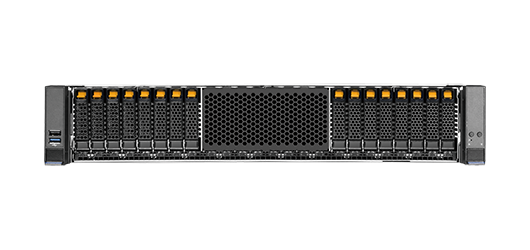

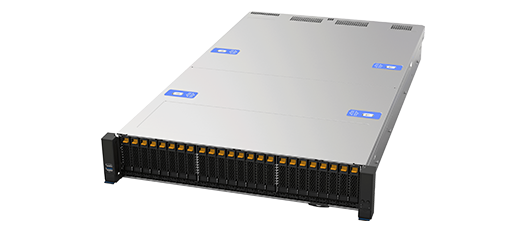

- 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 16 or 24-Bay, Optional)：

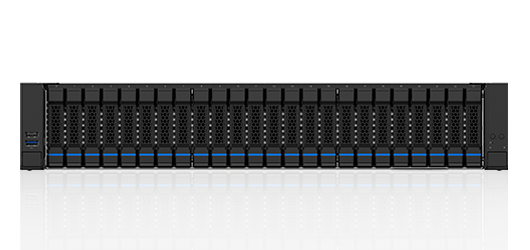

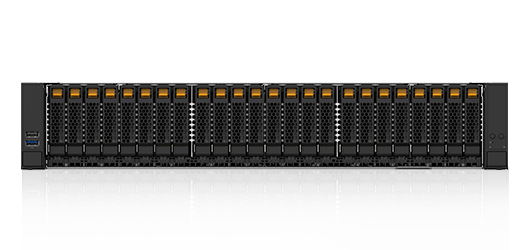

- 24 x 2.5” tool-less, Hot-swap; Supports SAS/SATA：

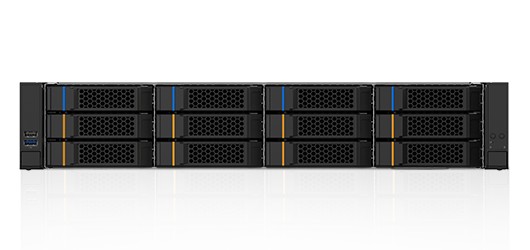

3.5” SKUs:：
- 8 x 3.5” Tool-less, Hot-swap; Supports SAS/SATA：

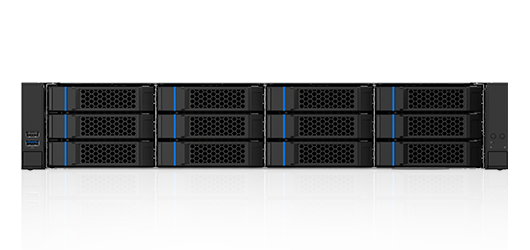

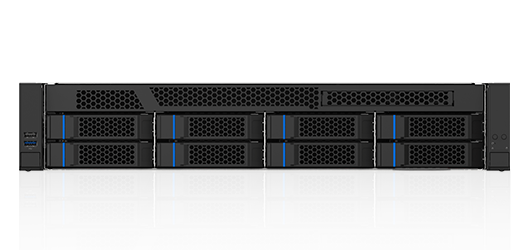

- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA：
Ethernet OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional) 電源供應器 2000W 1+1 CRPS, 80+ Platinum 序列阜 1 x RJ45 Serial Port A Video Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory 前置指示燈 1 x System Status, 1 x HDD Activity USB Rear: 3 x USB 3.0
Front: 1 x USB 3.0, 1 x USB 2.0前置控制 1 x Power On/Off, 1 x System Reset, 1 x ID Button,
1 x USB 3.0, 1 x USB 2.0系統安全裝置 Intrusion Switch and Security Bezel with Key Lock (Optional) 風扇 6 x 60mm Middle Hot-swap System Fan, PWM, 23000 RPM 擴充槽 Support for up to 8-slot PCIe 4.0: 6 x Full-height and 2 x Half-height
Riser 1 (CPU#0): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER1STD
Riser 2 (CPU#1): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER2STD
Riser 3 (CPU#1): 2-slot PCIe 4.0
- 2 x PCIe 4.0 x16 (x8 lanes), LPHL
* P/N# Intel CYP2URISER3STD
Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)硬碟熱插拔背板 Support for up to 8-slot PCIe 4.0: 6 x Full-height and 2 x Half-height
Riser 1 (CPU#0): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER1STD
Riser 2 (CPU#1): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER2STD
Riser 3 (CPU#1): 2-slot PCIe 4.0
- 2 x PCIe 4.0 x16 (x8 lanes), LPHL
* P/N# Intel CYP2URISER3STD
* With option 2-Bay 2.5” HDD module, riser card w/ bracket needs to be removed.
Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)淨重 23.1 KG/PCS 毛重 32.5 KG/PCS -
