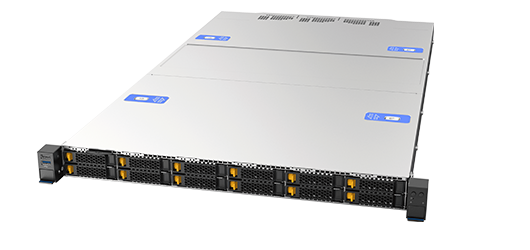

RB151 Series

1U高運算效能準伺服器

RB151系列支援第三代Intel Xeon 可擴充系列處理器，最多可配備12個記憶體插槽，針對企業及雲端應用，滿足高效運算需求。

比較

清除執行

快速搜尋

搜尋

比較

特點與利益

Intel® Server Board M50CYP2SBSTD
3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189
High performance SAS/SATA/NVMe Gen 4 storage, up to 12 x 2.5” or 4 x 3.5” HDD
Support for up to 3 low profile, half length PCIe 4.0 cards

1+1 redundant CRPS, 1600W
Flexible ethernet with support for OCP 3.0 module per server
Higher memory capacity, up to 12TB memory, 32 DIMMs per system

Specification
Download
Accessory
Compatibility
Order Information

機殼高度	1U
主機板	Intel M50CYP2SBSTD (Coyote Pass)
處理器	3rd Gen Intel Xeon Scalable Product Family, up to 205W Dual Socket-P4 LGA4189
處理器插槽	Dual Socket-P4 LGA4189
晶片組	C621A
記憶體類型	Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM
記憶體容量	Up to 12TB Memory
最大記憶體插槽	32 DIMMs (16 per CPU), 8 Channels
處理器散熱器	1U Passive
I/O模組	OCP 3.0
Ethernet	OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional)
序列阜	1 x RJ45 Serial Port A
Video	Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory
USB	Rear: 3 x USB 3.0 Front: 1 x USB 3.0, 1 x USB 2.0
擴充槽	Up to 3-slot PCIe 4.0: 3 x Low-Profi le and Half-Length Riser 1 (CPU#0) - 1 x PCIe 4.0 x16 (LPHL) * P/N# Intel CYP1URISER1STD Interposer Riser (CPU#1) - 1 x PCIe 4.0 x8 (LPHL) * P/N# Intel CYP1URISER2KIT Riser 2 (CPU#1) - 1 x PCIe 4.0 x16 (LPHL) * P/N# Intel CYP1URISER2KIT Riser 3 (CPU1): NVMe Gen4 Expansion Slot - 2 x PCIe SlimSAS x8 support up to four NVMe SSDs in the front drive bay through a backplane. * P/N# Intel CYPRISER3RTM (Optional) Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)
