RB14604

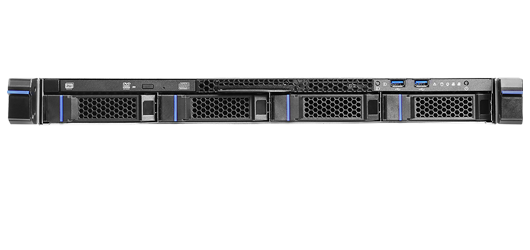

1U 單插槽企業和雲端應用級伺服器機箱
最新的1U服務器，採用Intel® Xeon® E-2300和第10代Intel® Pentium®系列處理器，旨在成為主流需求的主要工作服務器。
比較
特點與利益

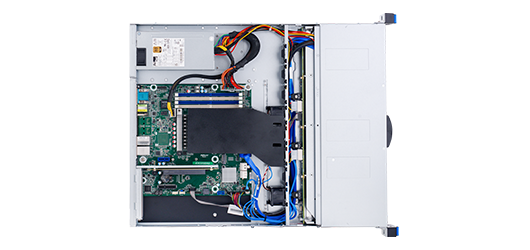

- ASRock® Server Board E3C252D4U
- Supports M/B size up to Micro-ATX (9.6" x 9.6")
- Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors, Single Socket H5 (LGA1200)
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1U single 400W (80+ Platinum)
- 1 x PCIe 4.0 x16 , FHHL
- Intel® C252 (6 SATA 6Gb/s; RAID 0/1/5/10) : 5 SATA 7-pin, 1 SATA DOM or 1 M.2
- Specification
- Download
- Accessory
- Compatibility
-
機殼高度 1U 主機板 Micro-ATX(9.6" x 9.6") ASRock E3C252D4U 處理器 Intel Xeon E Processor (Single LGA1151), up to 95W TDP 處理器插槽 Single Socket H5 (LGA1200) 晶片組 Intel® C252 記憶體類型 4 DIMM slots (2DPC) support DDR4 288-pin ECC/non-ECC UDIMM
(up to 32G-Max. Capacity per DIMM)記憶體容量 4 DIMM slots (2DPC) 記憶體電壓 1.2V 處理器散熱器 90 x 90 x 33.9(mm) , w/SCREW*4 , CU/AI 主機板尺寸 9.6" x 9.6" 外觀尺寸 (深x 寬 x 高) 547.6 x 438.5 x 43.5 (mm) ; 21.56" x 17.26" x 1.71"
儲存媒體插槽 3.5" Hot-swap：4

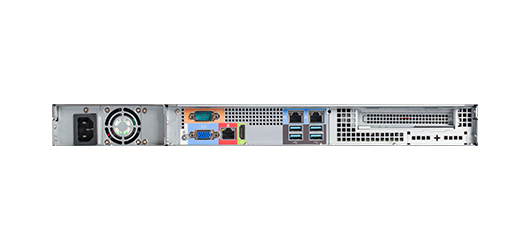

Ethernet 4 x 1GbE Base-T RJ45
1 x MGNT電源供應器 1U single 400W (80+ Platinum)
序列阜 1 x ASPEED IPMI2.0 Compliant AST 2500 BMC
前置指示燈 1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x System Alarm, 1 x HDD Status USB 2 x USB3.1 Gen1 前置控制 1 x Power On/Off, 1 x System Reset, 2 x USB3.1 Gen1 風扇 4 x FAN,40*40*28(mm) ,14500RPM 擴充槽 1 x Full Height and Half Length (PCIe 4.0 x16 supported)
硬碟熱插拔背板 3.5" 4-port 12 Gb/s, SAS/SATA 淨重 14.0 Kg 毛重 26.5 KG/PCS -
類別 規格敘述 版本 大小 下載 Certification RB14604 CB V1.0 113.3 KB
Certification RB14604 CE V1.0 347.2 KB
Certification RB14604 FCC V1.0 25.9 KB
Certification RB14604 UL V1.0 174.8 KB
Datasheet RB14604 Datasheet V1.0 259.2 KB
User Manual User manual V1.3 1.6 MB
-
產品類別 料號 規格敘述 支援 Backplane 380-14610-3000A2 3.5" 4-port 12Gbps SAS/SATA Backplane Cable 126-14612-3007A1 SATA Cable, 650mm Cable 126-14612-3008A1 SATA Cable, 280mm Cable 126-14612-3009A1 SATA Cable, 400mm Cable 126-14612-3010A1 SATA Cable, 500mm Cable 126-E0000-0010A0 DISPLAY CABLE,18P/4P TO 10P/20P/4P,W/I2C,680MM,FOR ASROCK MB

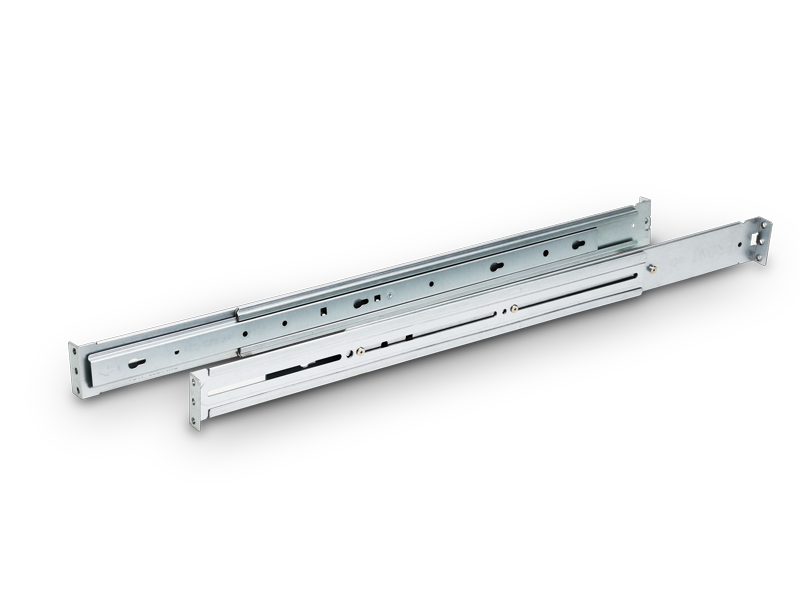

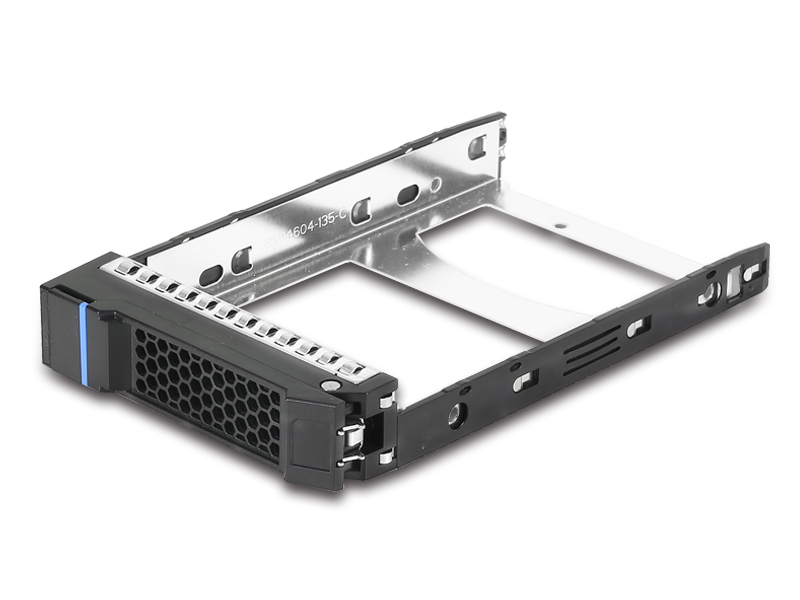

Cable 126-E0000-0011A0 CABLE,SGPIO,8P TO 10P,450MM,RB14604e003,REV.A0,JR3N04519,IDC TYPE Cable 26H03313601A0 CABLE,USB 3.0 REV.A0,RM13604e05,INTERNAL 20P TO TYPE A PLUG,750MM Fan 130-04028-3100A0 40x28mm System Fan HDD Tray 384-14602-3124A0 3.5" HDD TRAY,Panel BK, Screw-on Heat Sink 166-14603-E000A0 CPU Heatsink PCBA 380-14610-3000A2 AS'Y PCB,SAS,12G,4 PORT,RM14604b005,REV.A2,W/ANTI-STATIC BAG Power Supply 132-10400-0700A3 PSU,SINGLE,400W,FULL RANGE,P20+4:235MM/P8:280MM,W/BRACKET,ACTIVE PFC,FSE001-7HAG,RM14604e023,REV.A3,ACBEL Riser Card 380-14609-3000B0 PCI-e x16 Riser Card Slide Rail 384-14303-3102A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,8BOX/16CTN/PALLET Slide Rail 384-14303-3103A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,8BOX/16CTN/PALLET Click Part. No# to view item picture Support
