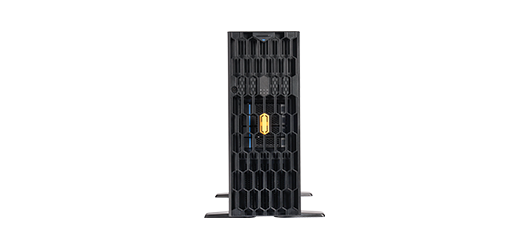

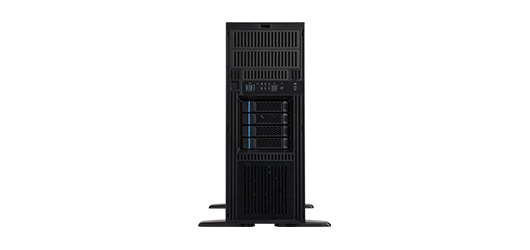

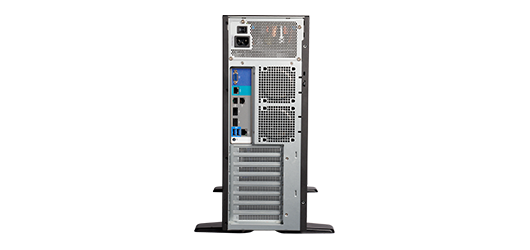

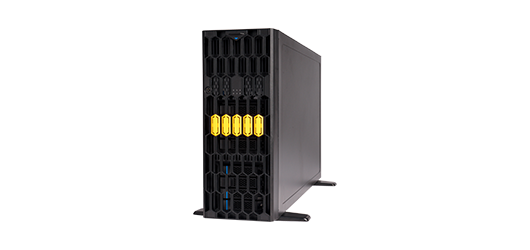

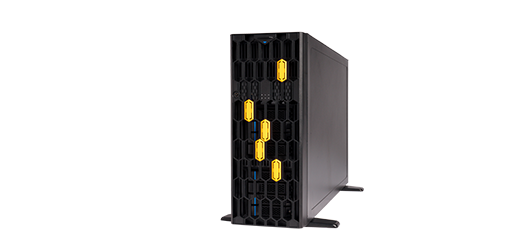

SR115LCooling

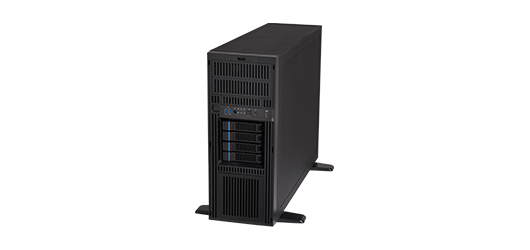

4U Tower / Rackable Workstation Server Chassis With Liquid Cooling
SR115LCooling is the workstation server to fulfill minor to mid-sized enterprises' workload demands. An optional 12cm liquid cooling module* can improve the CPU's thermal solution.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B up to E-ATX (12” x 13”).
  • Supports 12Gb/s Mini-SAS HD Expander.
  • Eight PCIe slots support more I/O applications, including double-width GPU card.

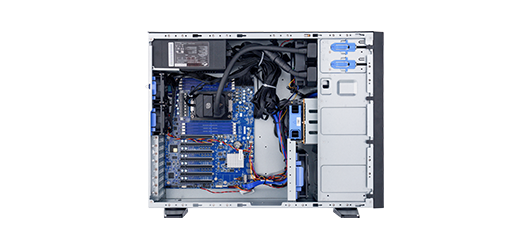

  • For SR115 LCooling, offer another 12cm close loop liquid cooling solution for CPU cooling to replace traditional air cooling solutions with better thermal and acoustic performance.
  • *Due to Chenbro SR115 being an L3 tower server, in the SR115 cooling model, the 12cm liquid cooling module will be shipped separately as a spare part.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor EEB (12" x 13") ; ATX (12" x 9.6") ; Micro ATX (9.6” x 9.6”)
    For single socket CPUCompatible CPU:
    •Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
    •AMD: AM4 / TR4 / sTRX4 / SP3 / sWRX8 / AM5
    Dimensions (D x W x H) 602.6 x 175.0 x 438.0 (mm); 23.7" x 6.89" x 17.24"(With bezel)
    Drive Bay Internal 3.5"：1
    External 3.5 HDD hot-swap module with 80mm fan, 4500RPM：4
    Internal 3.5 HDD cage with 80mm fan, 4500RPM (option)：4
    Storage Backplane 12Gb/s miniSASHD
    PSU Form Factor Single ATX PSU, with liquid cooling module
    Indicator 1 x Power Status, 1 x HDD Activity, 2x LAN Activity
    Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo, 1 x Type C (Option)

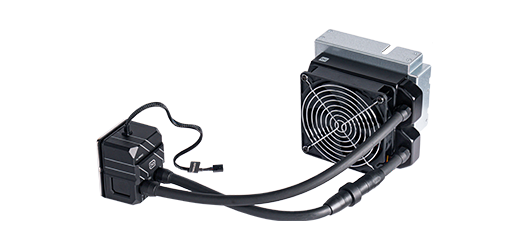

    Cooling Fan Liquid cooling module for CPU cooling
    D34 Pump: Speed 2600RPM
    Radiator: Full Copper 120mm Radiator
    Air cooling:
    •Middle Top: 1 x 120 (T=25mm), PWM, 2700RPM, for liquid cooling radiator
    •Middle Down: 1 x 120mm (T=25mm), PWM, 2600RPM (Option fan for GPU)
    •Rear: 2 x 80mm (T=25mm), PWM, 4500RPM
    System Security Intrusion Switch; Key Lock on the front door
    Expansion Slot Opening 8 x Full Height
    Gross Weight 21.32KG
    (12cm Liquid Cooling module*(384-FAN00296S0A0): 3.52 KG)
    Cubic Feet 7.456
    (12cm Liquid Cooling module*(384-FAN00296S0A0): 0.765)
    Container Loading 20' FCL: 126 pcs / 40' FCL: 252 pcs
    (12cm Liquid Cooling module*(384-FAN00296S0A0):20' FCL: 924 pcs / 40' FCL: 1848 pcs)
  • Category Description Revision Size Download
    Datasheet SR115LCooling Datasheet v1.0 365.8 KB
  • Category Part. No# Description Support
    Fan
    384-FAN00296S0A0    		 384-FAN00296S0A0For SR115 DLC*
    *Due to Chenbro SR115 being an L3 tower server, in the SR115 cooling model, the 12cm liquid cooling module will be shipped separately as a spare part.
    Click Part. No# to view item picture
  • Order Code
    384-FAN00296S0A0
