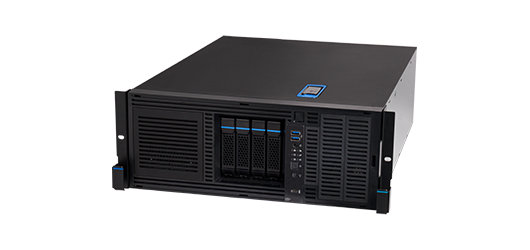

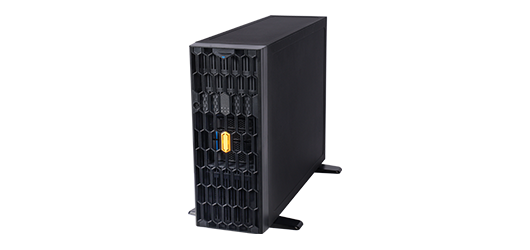

SR115

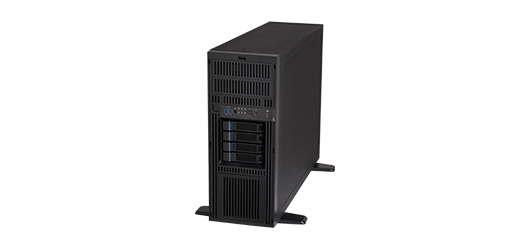

4U Mainstream Workstation Rackable Tower Server Chassis
SR115 is the general-purpose server as a workstation to fulfill small to mid-size enterprises' low to high workloads demands. Its flexible workstation deployment can support more applications.
Compare
Features & Benefits

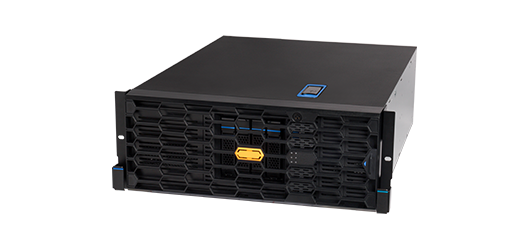

- 4U tower and rackable supports rack kit option: ear handle, slide rail, and CMA

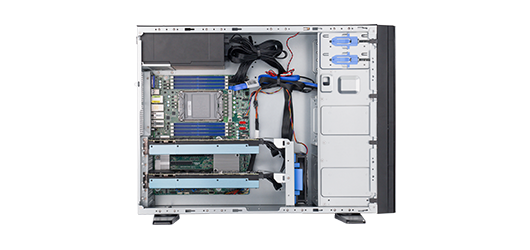

- Eight PCIe slots support more I/O applications, including double-width GPU card

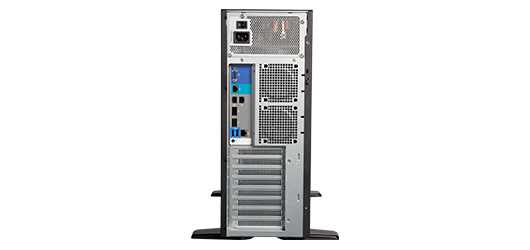

- Flexible PSU support PS2 or CRPS
- Multi-Storage: Internal or external storage kit support 2.5” or 3.5” HDD
- Security bezel and user-friendly toolless side cover
- Coverage server and workstation applications
- Lower acoustic
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
M/B Form Factor EEB (12" x 13") ; ATX (12" x 9.6") ; Micro ATX (9.6” x 9.6”)
Dimensions (D x W x H) 581.9 x 175.0 x 438.0 (mm) ; 23" x 6.89" x 17.24" (bezel not included)
Drive Bay External: 2 x 5.25” and 1 x 3.5”：
Storage: Option, max to 2pcs：
4-Bay internal HDD cage with 80mm fan, 4500RPM：
4-Bay external HDD hot-swap module with 80mm fan, 4500RPM：
Storage Backplane 12Gb/s miniSAS-HD, option
PSU Form Factor Single ATX PSU

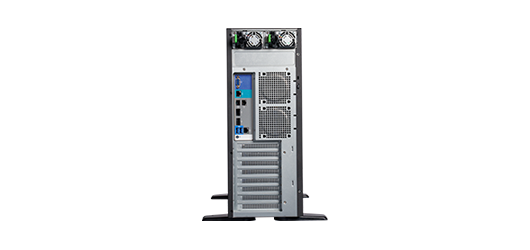

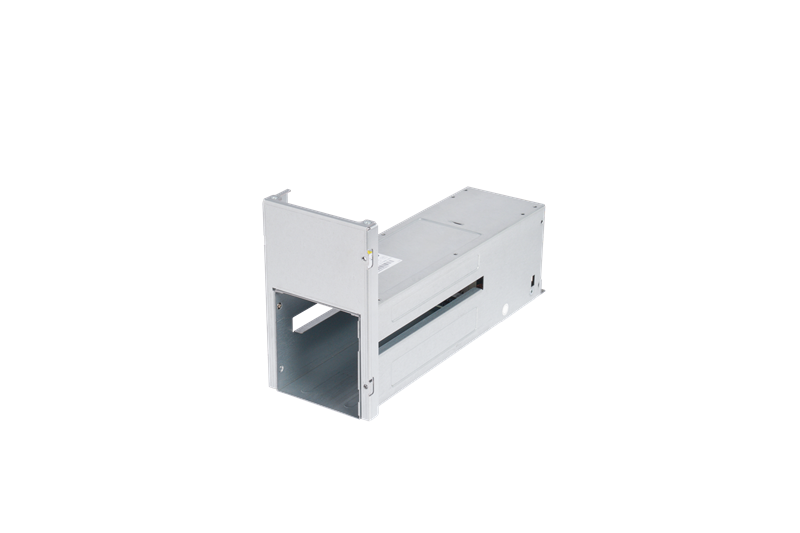

Redundant CRPS 1+1 (* 1200W support 2 x GPU)
Indicator 1 x Power Status, 1 x HDD Activity, 2x LAN Activity
Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo, 1 x Type C (Option)
Cooling Fan 2x 80mm (T=25mm), PWM, 4500RPM, rear, option 1x 120mm (T=25mm), PWM, 2600RPM, middle, option
System Security Intrusion Switch; Key Lock on the front door
Expansion Slot Opening 8 x Full Height
Net Weight 17.55KG
Gross Weight 21.32KG
Cubic Feet 6.934
Container Loading 20' FCL: 126 pcs / 40' FCL: 252 pcs
-
Category Description Revision Size Download Datasheet SR115 Datasheet v.1.2 v1.2 781.9 KB
-
Category Part. No# Description Support 5.25” to 3.5” Kit SK41101H01-10879 5.25” to 3.5” Kit: 1 x 5.25" Bay to 1 x Internal 3.5" HDD Bay, 48pcs/carton
SK41101H01*10879

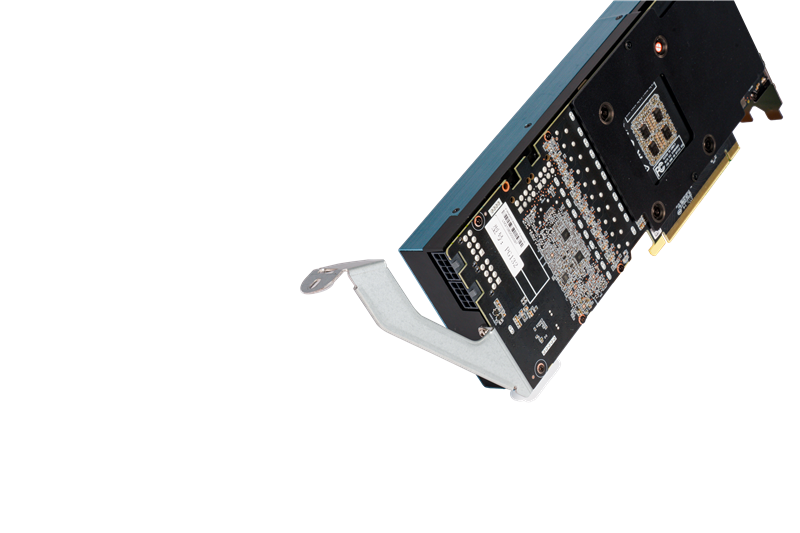

Bracket 384-MEC01161B0A0 GPU card fix bracket
Cable 126-11311-2001A0 Display cable for SMC, 900mm CMA 84H349010-006 Cable Management Arm (CMA) CPU & Fan support Bracket in the middle 384-MEC01160B0A0 GPU & Fan support bracket in the middle

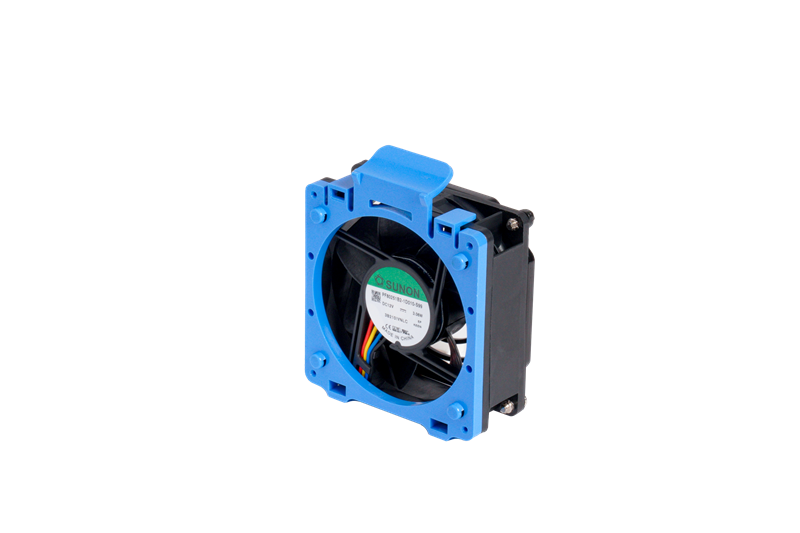

Fan 384-FAN00114B0A0 80mm (T=25mm), 4500 RPM fan kit for rear (max to 2 pcs)

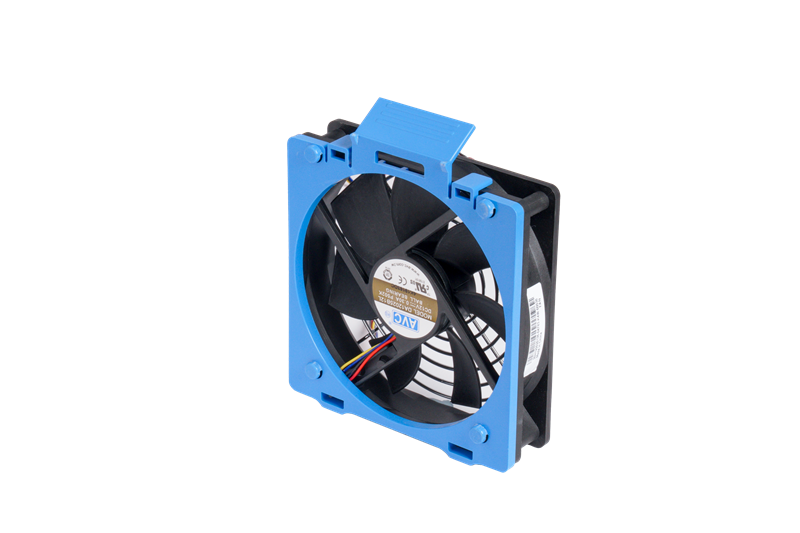

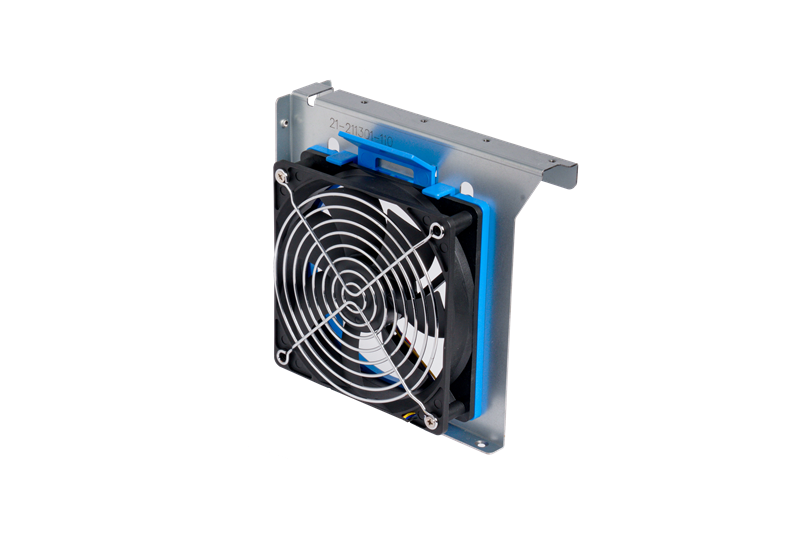

Fan 384-FAN00118B0A0 120mm (T=25mm), 2600 RPM fan kit for middle HDD Cage 384-MIX00411B0A0 Internal 4-Bay HDD cage with fan w/ fan： 384-MIX00411B0A0HDD Module 384-PCB000001BA0 4-Bay HDD hot-swap module， toolless HDD TRAY
w/o fan：384-PCB000001BA0
HDD Module 384-PCB00045B0A0 4-Bay HDD hot swap module，lock screw HDD TRAY
w/o fan：384-PCB00045B0A0
HDD Module 384-PCB00046B0A0 4-Bay HDD hot swap module， toolless HDD TRAY
w/ fan： 384-PCB00046B0A0
HDD Module 384-PCB00047B0A0 4-Bay HDD hot swap module，lock screw HDD TRAY
w/ fan： 384-PCB00047B0A0

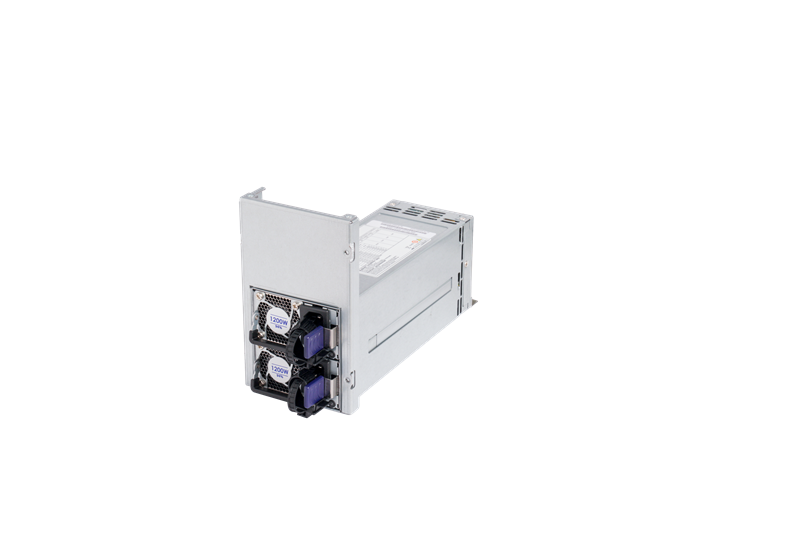

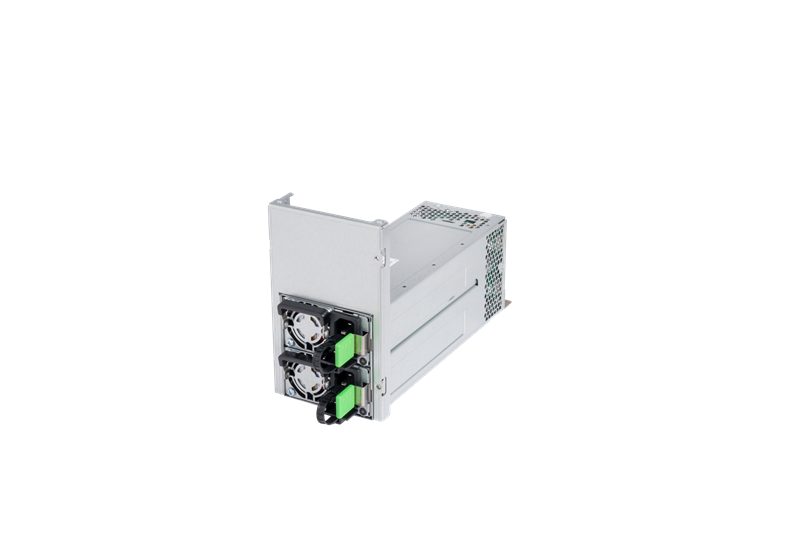

HDD Module SK32801H01-15188 SK32801 8 Bay 2.5” SAS/SATA hot-swap module Power Supply 384-PSU00016B0A0 FSP 1200W 1+1 module with power cable and bracket, 210mm Power Supply 384-PSU00017B0A0 FSP 800W 1+1 module with power cable and bracket, 210mm Power Supply 384-PSU00018B0A0 Acbel 1200W 1+1 module with power cable and bracket, 220mmPower Supply 384-PSU00019B0A0 Acbel 800W 1+1 module with power cable and bracket, 220mm Power Supply 384-PSU00020B0A0 Acbel 1200W 1+1 module with power cable and bracket, 265mm
Rack Handle 384-MEC000327BA0 Rack handles (a set, left and right), 50 sets/carton Click Part. No# to view item picture Support -
Order Code SR1156901 01*929020 SR1156901 01*929022 SR1156901 01*929025 SR1156901 01*929179 Part Category Part No. Qty. Description
