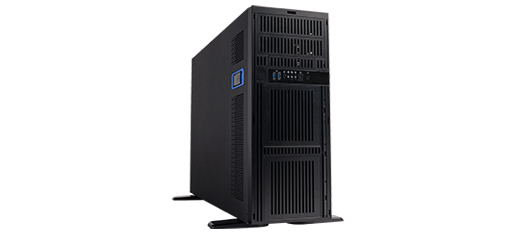

SR113
4U Rackable Tower Server Chassis
Equipped with a multi-drive cage design option and effective thermal performance for maximized 5 GPGPU configurations, it is the ideal workstation for bringing AI to the edge.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

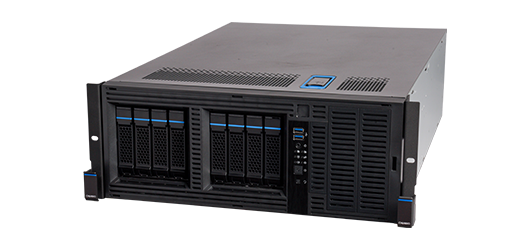

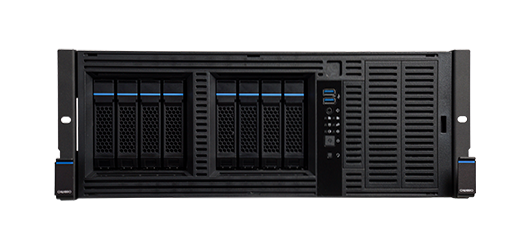

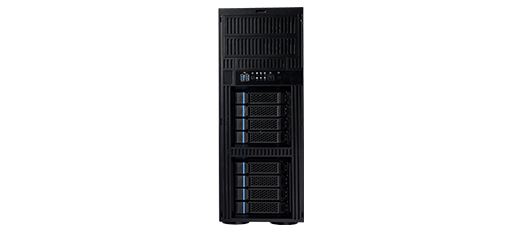

  • Perfectly fitted as a rackmount or a standalone system
  • Supports a maximum of 5 double-width GPGPU cards
  • Card retainer design to secure GPGPU card transportation
  • Supports a maximum of 8-bay 3.5” SAS/SATA and 8-bay 2.5” SAS/SATA
  • Flexible thermal solution option for various configurations
  • Supports 19" rack installation via optional kit
  • Supports CRPS / ATX PSU (EEB SKU)
  • Links with Chenbro’s reference motherboard program
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

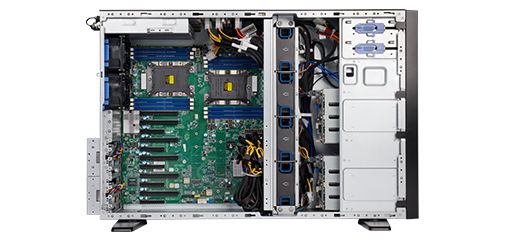

  • M/B Form Factor Proprietary (15.12” x 13.2”): SMC X12DPG/X11DPG
    Proprietary (14.23” x 13.24”): Tyan S7105
    SSI EEB (12” x 13”): 8-slot SKU Only
    Dimensions (D x W x H) 680.0 x 175.0 x 438.0 mm
    26.77" x 6.89" x 17.24"
    Drive Bay External: 2 x 5.25” and 1 x 3.5”：
    Hot-swap: 2 x 4-bay 3.5” SAS/SATA Hot-swap Module：
    Storage Backplane 12Gb/s, Mini-SAS HD
    PSU Form Factor Redundant CRPS 1+1, 1200W / 2000W (80+, Platinum)
    Single PSU (PS/2 form factor) for 8-slot SKU Only
    Indicator 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 1 x System Alarm
    Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB 3.0, 1 x Audio Combo

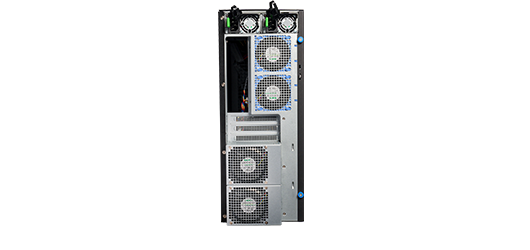

    Cooling Fan Middle (Default): 4 x 80 (mm), PWM, 11000 RPM, Hot-Swap
    Rear CPU Fan Module for Internal: 2 x 80 (mm), PWM, 8200 RPM, Fixed (Option)
    Rear GPU Hot-swap Fan for External: 2 x 80 (mm), PWM, 11000 RPM, Hot-Swap (Option)
    System Security Intrusion Switch; Key Lock on Front Door (Option)
    Expansion Slot Opening 11 x Full Height and Full Length (Up to Double Width 5-GPU Support)
    8 x Full Height and Full Length (Up to Double Width 4-GPU Support, EEB Only)
    *Card Retainer: Optional
    Net Weight 25 KG/PCS
    Gross Weight 26 KG/CTN
    Cubic Feet 5.77
    Container Loading 20' FCL: 96 PCS / 40’ FCL: 192 PCS/ 40'H: 224 PCS
  • Category Description Revision Size Download
    Datasheet SR113 Datasheet v1.3 v1.3 1.6 MB
  • Category Part. No# Description Support

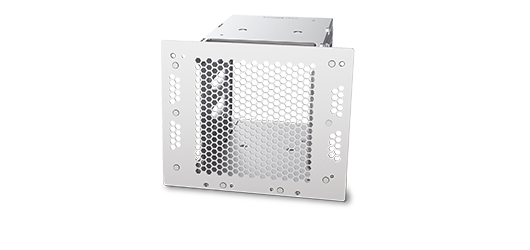

    HDD Cage
    384-MEC01129B0A0

    AS'Y COMPONENT,SR11369,HDD CAGE,BULK,6PCS/CTN,SR11369q005A00,INTERNAL 3.5" HDD
    HDD Module
    384-PCB000001BA0

    4-Bay HDD hot-swap module， toolless HDD TRAY

    w/o fan：384-PCB000001BA0
    Rack Handle
    384-MEC000327BA0    		 Rack handles (a set, left and right), 50 sets/carton
    Slide Rail
    384-RAL00001BA0    		 Slide rail kit can support CMA - P2P: 26" to 36.7", Traveling Distance 28.5", tool-less
    Click Part. No# to view item picture
  • Order Code
    SR11369H01*15554 : SR113 with 2000W 1+1, 5-GPUs SKU
    SR11369H01*15639 : SR113 with 2000W 1+1, 4-GPUs SKU
