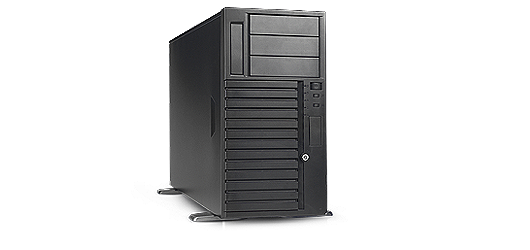

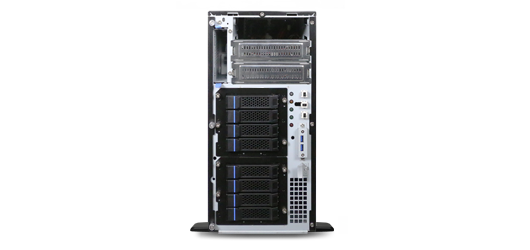

SR107 Plus
High Data Security SSI EEB Tower Server Chassis
Offers a scalable performance chassis solution with expanded storage options.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports up to 12" x 13" M/B
  • Supports two removable 4-bay 3.5" HDD Hot-swap and internal cages
  • 3.5" HDD Hot-swap cage with 12Gb/s Mini-SAS HD or SAS/SATA backplane
  • Hot-swap cage with four patented tool-less 3.5" HDD trays
  • 3.5" Internal HDD cage with patented anti-vibration technologies
  • Supports up to 3 FH/FL GPU cards
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock for unauthorized access prevention
  • Supports rack installation by slide rails
  • Supports single PS/2 and 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • M/B Form Factor SSI EEB (12" x 13")
    Dimensions (D x W x H) 620.0 x 220.0 x 425.0 (mm)
    24.40" x 8.66" x 16.73" (w/o bezel)
    Drive Bay 3.5" Internal (Option):8
    3.5" Hot-swap:8
    External 3.5":1
    External 5.25":3
    Storage Backplane 3.5" 4-port 12Gbps, Mini-SAS HD
    3.5" 4-port 12Gbps, SAS/SATA (Option)
    PSU Form Factor PS/2 or N+1 Redundant or 1+1 CRPS
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x Alarm Mute
    2 x USB2.0/USB3.0 (Option)
    Cooling Fan Middle: 120 x 25 (2)
    Rear: 120 x 25 (1)
    System Security Intrusion Switch
    Key Lock
    Kensington Slot
    Expansion Slot Opening 7 x Full Height (6 x Full Length + 1 x Half Length)
    Net Weight 18.0 kg
    Gross Weight 22.5 kg
    Cubic Feet 5.53
    Container Loading 20ʼ: 140
    40ʼ: 280
    40'H: 336 (Single Packing)
  • Category Description Revision Size Download
    Datasheet SR107 Plus Datasheet V1.1 V.1.1 3.7 MB
    User Manual SR107-Plus_User Manual V1.1 2.0 MB
  • Category Part. No# Description Support
    Bracket
    384-MEC00389B0A0
    Bracket AS'Y COMPONENT,SR10769,BRACKET,BULK,FOR ACBEL CRPS PSU,W/SCREW PACKING,50PCS/CTN
    Bracket
    84H210710-035
    Bracket, Rackmount Handle, Black, 2pcs/set
    Bracket
    84H210710-103

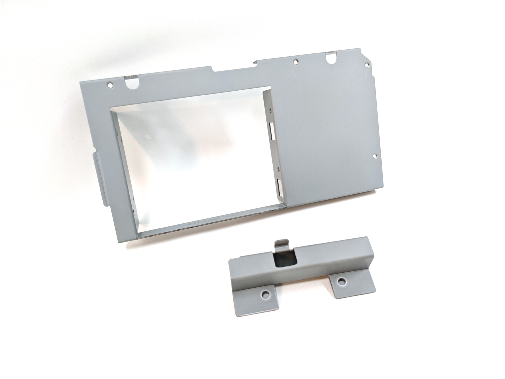

    Power Bracket for SR107, 2pcs/set
    HDD Cage
    384-10701-2100A0

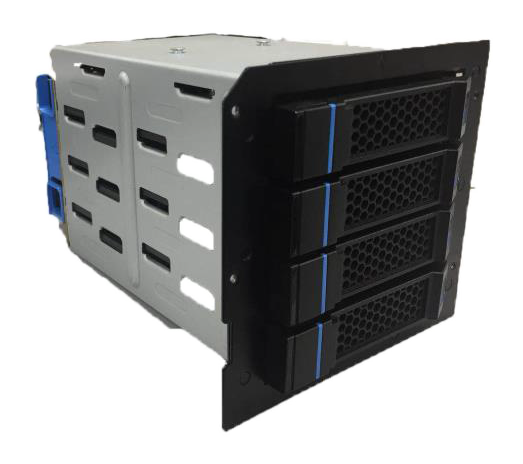

    3.5" HDD cage, Hot-swap, w/ 4-port 12Gbps mini-SAS HD BP, Tool-less Tray
    HDD Cage
    384-10701-2101A0

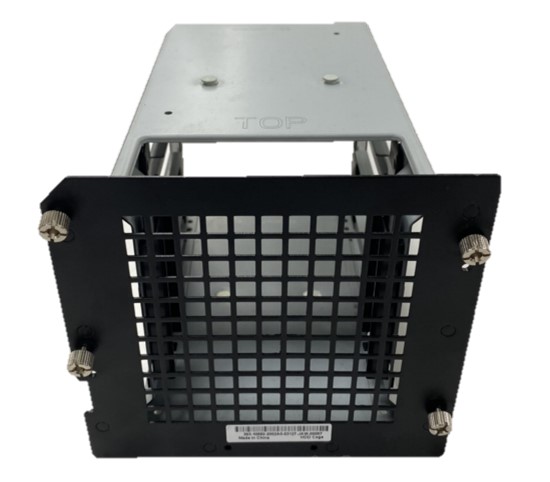

    3.5" HDD cage,  Internal, w/ Anti-vibration Rubber
    HDD Cage
    384-10701-2104A0
    3.5" HDD cage, Hot-swap, w/ 4-port 12Gbps SAS/SATA BP, Tool-less Tray
    HDD Cage
    84H210710-069

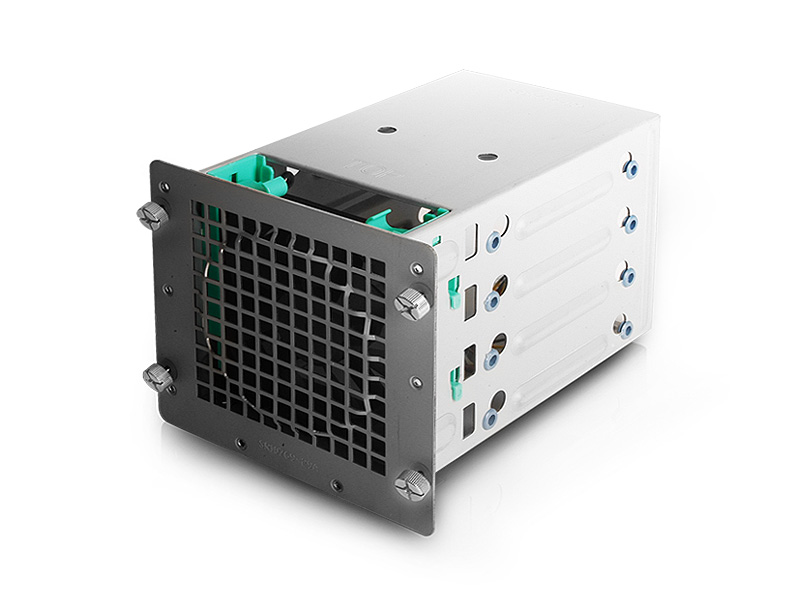

    HDD cage, 4x 3.5" Non-Hotswap, w/92mm fan
    HDD Cage
    84H210710-104

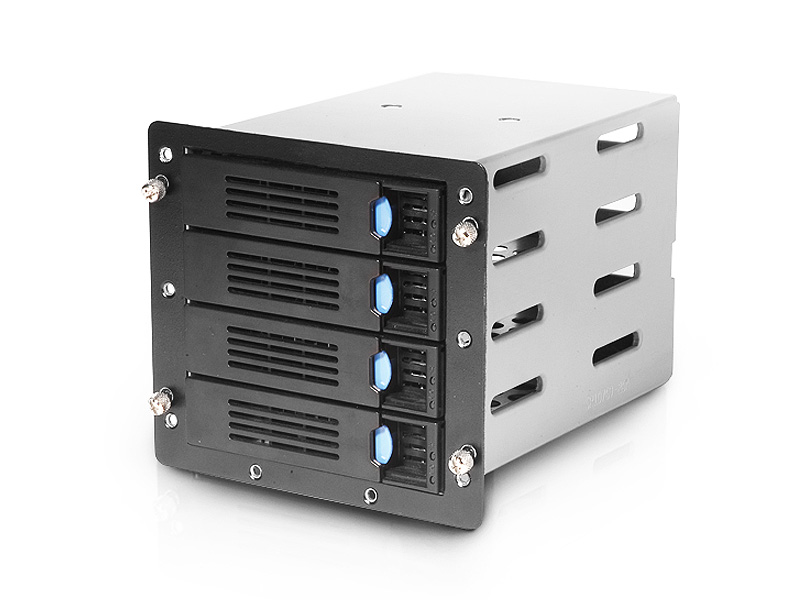

    4-bay, 3.5" Hot-swap, w/4-port 12Gbps mini-SAS HD Backplane, SR107/108
    HDD Tray
    384-14602-3143A0
    HDD Tray, 3.5" Screw Type, for New Cage 384-10501-2101A0 (Screws for 2.5" HDD Included)
    Power Supply
    132-20500-0500A0
    PSU, 500W, 1+1 Redundant, w/Bracket, FSP500-50RAB
    Slide Rail
    84H210710-024
    Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107
    Click Part. No# to view item picture
