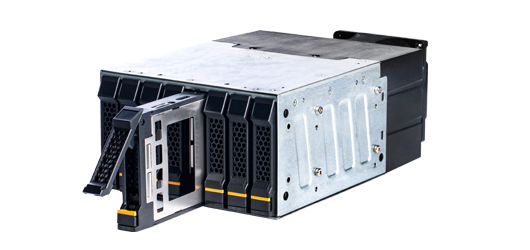

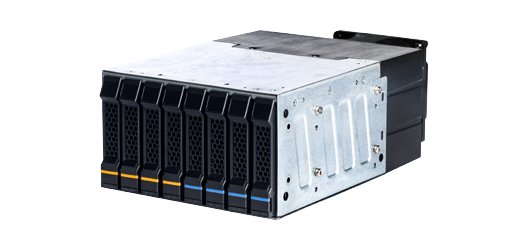

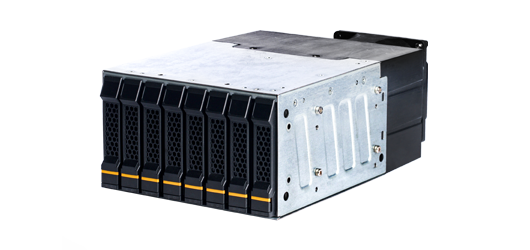

SK62801

8-bay 2.5’’HDD Hot-Swap with PCIE 3.0 or 5.0 Backplane

SK62801 is designed with standard mounting holes for converting 2 x 5.25’’ drive bays into 8 x 2.5’’ NVMe/ SATA hot-swap hard drive bays.

Compare

Clear GO

Quick Search

Compare

Features & Benefits

Support three types of backplanes: Gen3/4T4S/Gen5, enabling compatibility with different motherboards to cater to a broader range of application scenarios.
Suggest using Chenbro tower server SR113 and SR115, easy to install

Order Code	SK62801
Dimensions (D x W x H)	250.7mm x 146mm x 84.1mm; 9.87" x 5.75" x 3.31"

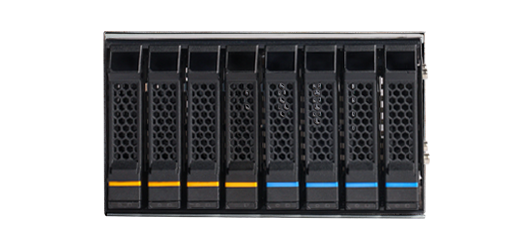

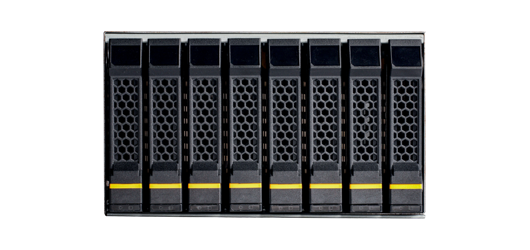

Drive Bay	8 x 2.5" HDD Tray

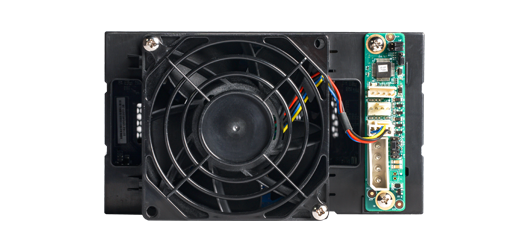

Cooling Fan	80 x 38 (1)
Material	SGCC
Net Weight	1.35 kg
Backplane	SK62801 (NVME N8 Gen3): 8Gbps NVME Gen3 SK62801 (4T4S Gen3): 4T4S 8G NVME Gen3 + 12G SAS/SATA SK62801 (NVME N8 Gen5): 32Gbps NVMe Gen 5
Connector (To Drive)	SK62801 (NVME N8 Gen3): 8 x SFF 8639 (SAS 68P) SK62801 (4T4S Gen3): 4 x SFF 8639 (SAS 68P)/ 4 x SFF 8680 (SAS 29P) SK62801 (NVME N8 Gen5): 8 x SFF 8639 (SAS 68P)
Connector (To Host)	SK62801 (NVME N8 Gen3): 8 x SFF 8621 (OCulink4i) SK62801 (4T4S Gen3):4 x SFF 8621 (OCulink4i)/ 2 x SFF 8643 (Mini SAS HD 4i) SK62801 (NVME N8 Gen5): 8 x SFF-TA-1016 (MCIO 4i)
Package Cotents	SK62801 (NVME N8 Gen3): 1 x SK628, 1 x Power extend Cable, 1x Screw PKG SK62801 (4T4S Gen3): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG SK62801 (NVME N8 Gen5): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG
Cable Option	Due to the variation in MB connector type, it will not include a cable option

Category	Description	Revision	Size	Download
Datasheet	Datasheet	v1.0	288.9 KB
