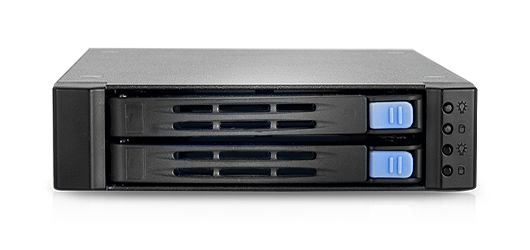

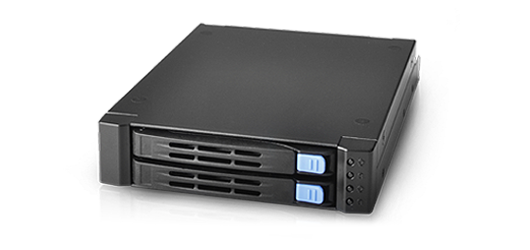

SK51201
2-bay 2.5" HDD/SSD Enclosure with 12Gb/s SAS & SATA Backplane
SK51201 is in 3.5" FDD form factory compatible for two hot-swap 2.5" SATA HDDs. It is mechanically well designed with great EMI performance and also equipped with HDD failure and activity LEDs.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Fits chassis with slim 3.5" drive bay
  • Compatibile with 2.5" SATA HDD or SSD thickness under 9.5mm
  • Supports HDD activity and failure indicators on front panel
  • Supports inrush current control for HDD hot-swapping
  • Reserved space for HDD ID label on front panel of HDD carrier
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Order Code SK51201T3
    Dimensions (D x W x H) 142.8 x 101.6 x 25.4 (mm)
    5.62" x 4.00" x 1.00"
    Drive Bay 2 x 2.5" Hot-swap HDD/SSD Tray
    Indicator 1 x Power Status
    1 x HDD Status
    1 x System Alarm
    Front Control N/A
    Cooling Fan N/A
    Material SGCC (Black Coating)
    Net Weight 0.34 kg

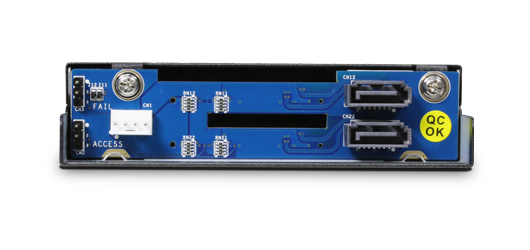

    Backplane 12Gbps SAS/SATA
    Connector (To Drive) 2 x SFF8680
    Connector (To Host) 2 x SATA 7pin
    Package Cotents 1 x SK51201
    2 x 700 mm SATA Cable
    1 x 700 mm Signal Cable
  • Category Description Revision Size Download
    Datasheet 2.5'' HDD Storage Kit Datasheet V1.1 265.7 KB
    User Manual SK51201 Installation Guide with 3Gb/s SATA/SAS Backplane V1.0 205.1 KB
    User Manual 6Gb/s 2-port SATA/SAS BP(80H10551202A0) for SK51201 V1.1 246.6 KB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Supported Drives Fan
    SK51201T3 1 x 3.5" 12Gb/s SAS / SATA 2 x 2.5" HDD / SSD N/A
