SK51102

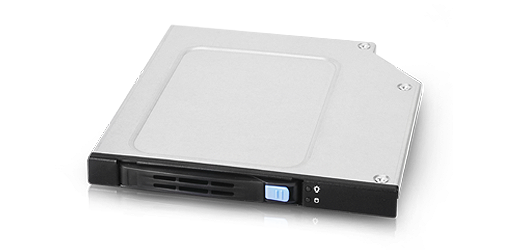

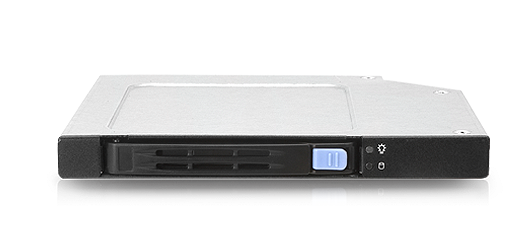

1-bay 2.5" HDD/SSD Enclosure with 12Gb/s SAS & SATA Backplane
SK51102 is in slim ODD form factor, compatible for one hot-swap 2.5" SATA HDD/SSD. It is mechanically well designed with great EMI performance and also equipped with hard drive failure and access LED indication.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Fits chassis with slim ODD bay
  • Compatible with 2.5" SATA HDD or SSD thickness under 9.5mm
  • Supports HDD activity and failure indicators on front panel
  • Supports inrush current control for HDD hot-swapping
  • Reserved space for HDD ID label on front panel of HDD carrier
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Order Code SK51102T3
    Dimensions (D x W x H) 129.4 x 128.0 x 12.7 (mm)
    5.09" x 5.04" x 0.50"
    Drive Bay 1 x 2.5" Hot-swap HDD/SSD Tray
    Indicator 1 x Power Status
    1 x HDD Status
    System Security N/A
    Front Control N/A
    Cooling Fan N/A
    Material SGCC
    Net Weight 0.23 kg

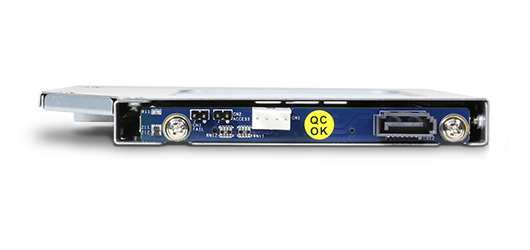

    Backplane 12Gbps SAS/SATA
    Connector (To Drive) 1 x SFF8680
    Connector (To Host) 1 x SATA 7pin
    Package Cotents 1 x SK51102
    1 x 700 mm SATA Cable
    1 x 700 mm Signal Cable
  • Category Description Revision Size Download
    Datasheet 2.5'' HDD Storage Kit Datasheet V1.1 265.7 KB
    User Manual SK51102 Installation Guide with 3Gbps SATA Backplane V1.0 205.7 KB
    User Manual 6Gb/s 1-port 2.5" SATA Backplane(80H10551102A0) for SK51102 V1.1 560.5 KB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Supported Drives Fan
    SK51102T2 1x Slim ODD Bay 6Gb/s SATA 1 x 2.5" HDD/SSD N/A
