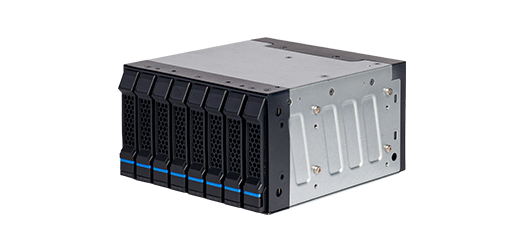

8-bay 2.5’’ HDD Hot-Swap with 12Gbps SAS/SATA Backplane
SK32801 is designed with standard standard mounting holes for converting 2 x 5.25’’ drive bays into 8 x 2.5’’ SATA hot-swap hard drive bays.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with two 5.25" drive bays

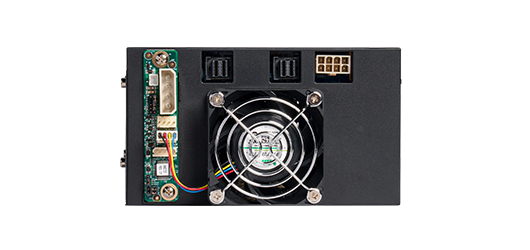

  • Back-mounted 60mm fan to deliver optimized cooling performance
  • HDD failure and activity indicators on each hot-swap drive carrier
  • Supports inrush current control for drive hot-swapping
  • Alternative HDD activity and failure single input sources
  • Built-in temperature sensor and overheat warning system
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Order Code SK32801T3
    Dimensions (D x W x H) 187.75 x 146.0 x 84.1 (mm) ;7.39" x 5.75" x 3.31"
    Drive Bay 8 x 2.5" HDD Tray
    Cooling Fan 60 x 25 (1)
    Material SGCC
    Net Weight 1.23 kg
    Backplane 12Gbps SAS/SATA
    Connector (To Drive) 8 x SFF8630
    Connector (To Host) 2 x miniSAS HD
    Cable Option Mini SAS HD to MINI SAS HD, 550MM
    Package Content 1 x SK328
    1 x Power extend Cable
    1 x Screw PKG
  • Category Description Revision Size Download
    Datasheet SK32801 Datasheet V1.0 1.4 MB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Supported Drives Fan
    SK32801 2 x 5.25” 8-Port 12Gb/s Mini SAS HD 8 x 2.5'' 60mm
