SK31101

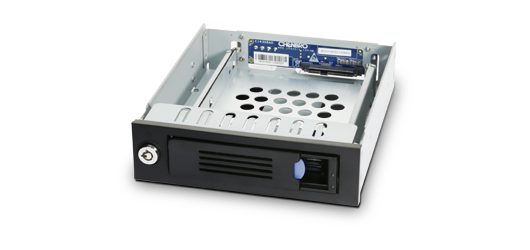

1-bay 3.5" HDD Enclosure with 12Gb/s SAS & SATA Backplane
SK31101 is designed with standard mounting holes for converting 1 x 5.25" drive bay into 1 x 3.5" SATA hot-swap drive bay.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Fits chassis with one 5.25" drive bay
  • Top opening to deliver HDD cooling through system fans

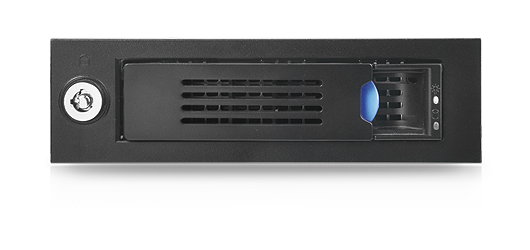

  • HDD failure and activity indicators on the hot-swap drive carrier
  • Supports inrush current control for drive hot-swapping
  • Supports HDD failure single input from RAID or Expander card
  • Key lock for HDD security
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Order Code SK31101T3
    Dimensions (D x W x H) 171.0 x 146.0 x 43.0 (mm)
    6.73" x 5.75" x 1.69"
    Drive Bay 1 x 3.5" HDD Tray
    Indicator 1 x Power Status
    1 x HDD Status
    System Security Key Lock
    Front Control N/A
    Cooling Fan N/A
    Material SECC
    Net Weight 0.5 kg

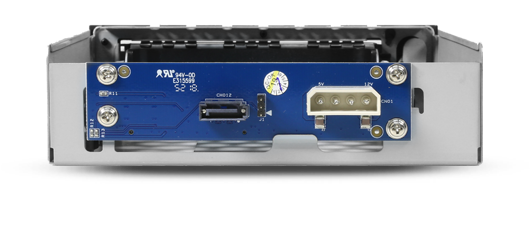

    Backplane 12Gbps SAS/SATA
    Connector (To Drive) 1 x SFF8680
    Connector (To Host) 1 x SATA 7pin
    Package Cotents 1 x SK31101
    1 x 700 mm SATA Cable
    1 x 600 mm Signal Cable
    1 x Key (2pcs/1set)
  • Category Description Revision Size Download
    Datasheet 3.5'' HDD Storage Kit Datasheet V1.1 567.0 KB
    User Manual 12Gb/s 1-port SATA/SAS Backplane, For SK31101 V1.0 879.5 KB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Supported Drives Fan
    SK31101T3 1x 5.25" 12Gb/s SAS& SATA 1x 3.5" N/A
