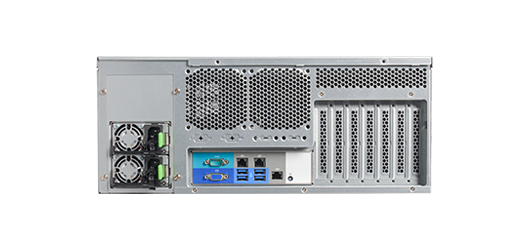

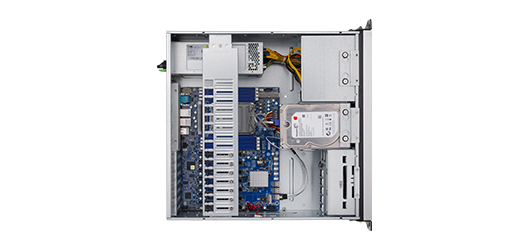

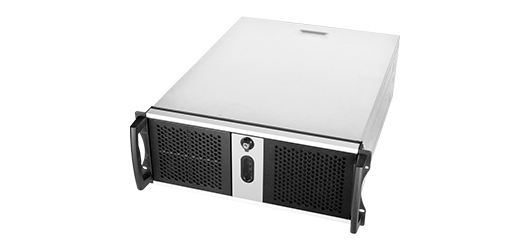

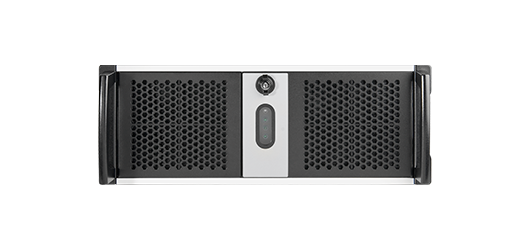

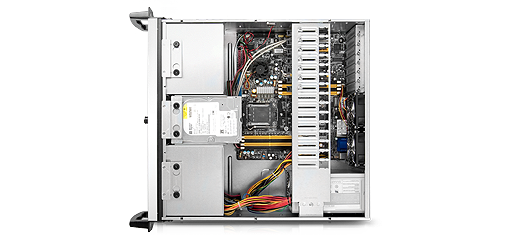

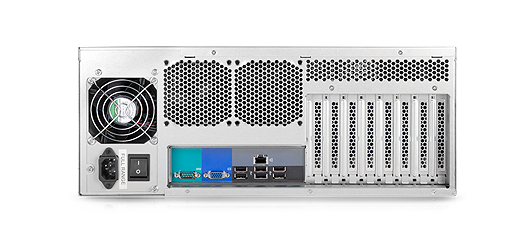

RM42300
4U 17.5" Compact Industrial Server Chassis
With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B up to 12” x 9.6”
  • Available for rackmount and stand-alone installation
  • Dedicated 80 mm fan for HDD cooling
  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Card retainer to hold low profile and full height add-on cards
  • Front 120mm fan with filter for add-on card cooling
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Supports 1-door or 2-door front bezel configuration
  • Supports 1200W (1+1) 2U CRPS module (w/ housing and PDB)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor ATX (12” x 9.6”)
    Dimension (D x W x H) 465.2 x 430.0 x 176.0 (mm)
    18.32” x 16.93” x 6.93”
    Drive Bay External 3.5"：1
    External 5.25"：3
    Internal 3.5"：4
    Slim ODD：1
    Storage Backplane N/A
    PSU Form Factor -PS/2 single
    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    Cooling Fan Front: 1 x 120 mm (T=25 mm), PWM,
    Rear: 2 x 80 mm (T=25 mm) (Option)
    System Security Intrusion Switch (Option)
    Key Lock on Front Door
    Expansion Slot Opening 7 x Full Height
    Net Weight 9.5 kg/20.93 lb
    Gross Weight 12.3 kg/27.09 lb
    Cubic Feet 3.44
    Container Loading (Single Packing) 20': 192 ,
    40': 432 ,
    40'H: 504 (Single + Pallet)
  • Category Description Revision Size Download
    Datasheet RM42300 datasheet v1.4 v1.4 709.5 KB
    Datasheet RM42300 Datasheet V1.3 7.4 MB
    User Manual RM42300 Quick Installation Guide V1.1 443.4 KB
  • Category Part. No# Description Support
    Bezel
    84H341310-004    		 Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel
    84H341310-005    		 Front Bezel, 4U, 2-door, RM41300/RM42300
    Bracket

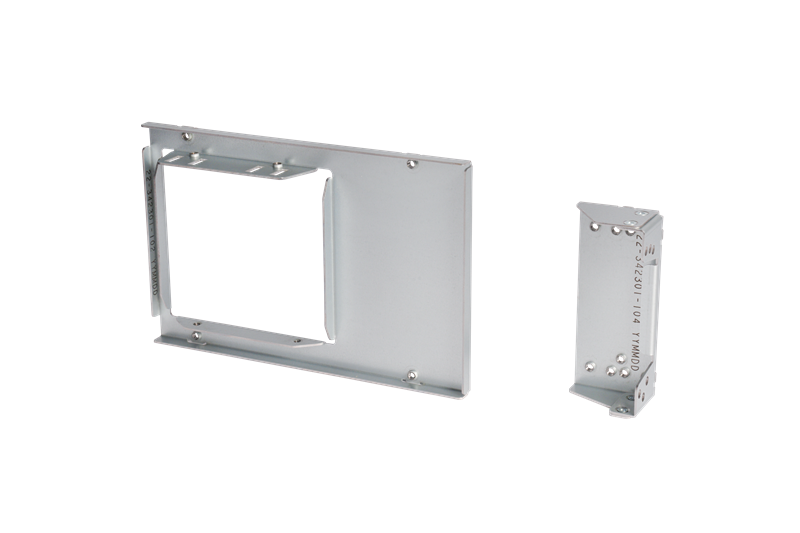

    384-MIX00438B0A0    		 PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    Drive Cage
    84H342310-003    		 Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012    		 Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058    		 80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws
    Fan
    84H342310-004    		 FAN Module, 120x25mm,AVC
    Foot Stand
    84H342210-002    		 Stand alone Kit, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101    		 4pcs/set, w/cabinet ear, for RM41300/RM42300
    PCBA

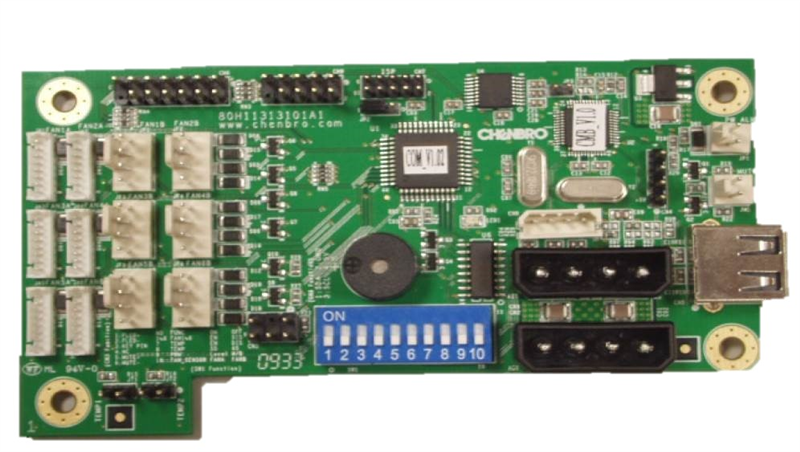

    84H331410-025    		 6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PSU module+bracket
    384-PSU00024B0A0    		 AcBel 800W (1+1) CRPS module w/ bracket
    PSU module+bracket
    384-PSU00028B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 550W FSK011-7HHG
    Rear Window
    84H342310-005    		 Rear window, 15-slot, w/slot brackets, RM41300/RM42300
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
    Click Part. No# to view item picture
