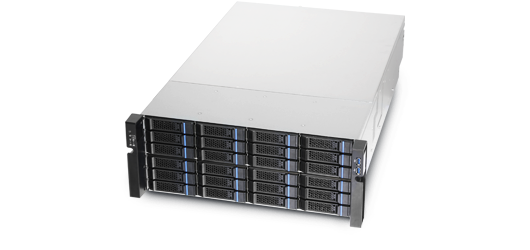

RM41736 Plus
4U Modular Double Access Storage Server Chassis

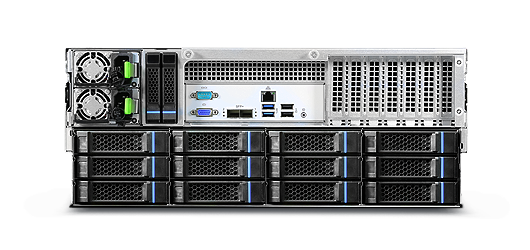

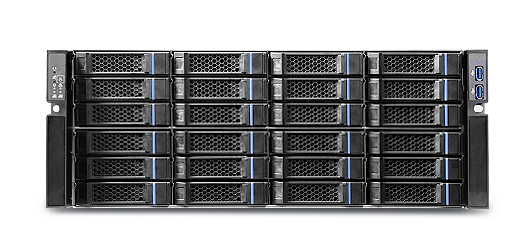

With front and rear installed 2.5"/3.5" HDD trays, RM41736 Plus offers extra high-density HDD in a 4U form factor.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports 36 x 3.5" SAS/SATA with front/rear access of high-density storage server
  • Supports MB size up to SSI EEB (12" x 13")
  • High-speed Data Transmission (HDT): 12Gbps SAS expander IC on backplane.
  • Supports two front access USB3.0 ports
  • Optional rear-mounted OS drives tray: 2-bay 2.5" hot-swap HDD with 12Gbps backplane or 2 x 2.5" internal drive bay.
  • Tool-less design of Top Cover, MB carrier, Slide Rail and HDD tray which supports easy maintenance

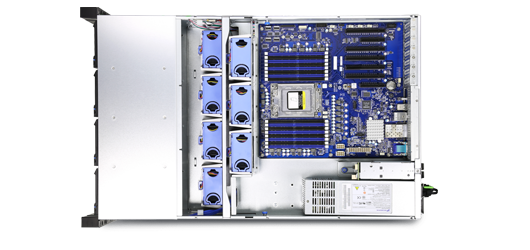

  • Economic power-consumption cooling: 7 x 8038 hot-swap Fan, 7500RPM.
  • High power efficiency: 1+1 CRPS 1200W 80 PLUS Platinum power supply.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor SSI EEB (12" x 13”)
    Dimension (D x W x H) 699.0 x 432.0 x 176.0 (mm)
    27.52” x 17.01” x 6.93”
    Drive Bay 3.5" Hot-swap:36
    2.5" Hot-swap (Option):2
    2.5" Internal (Rear, Option):2
    Storage Backplane Front: 3.5” 24-port 12Gbps, Mini-SAS HD, Expander (1)
    Rear: 3.5" 12-port 12Gbps, Mini-SAS HD, Expander (1)
    PSU Form Factor 1+1 CRPS
    Indicator 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB3.0
    Cooling Fan Middle: 7 x 80 mm (T=38 mm)
    System Security Intrusion Switch
    Expansion Slot Opening 7 x Low Profile
    Net Weight 26.7 kg/58.91 lb
    Gross Weight 31.9 kg/70.31 lb
    Cubic Feet 8.53
    Container Loading (Single Packing) 20': 105, 40': 215, 40'H: 258
  • Category Description Revision Size Download
    Datasheet RM41736 Plus Datasheet V1.0 V.1.0 2.2 MB
    User Manual RM41736 Plus User Manual 3.0 V3.0 2.5 MB
  • Category Part. No# Description Support

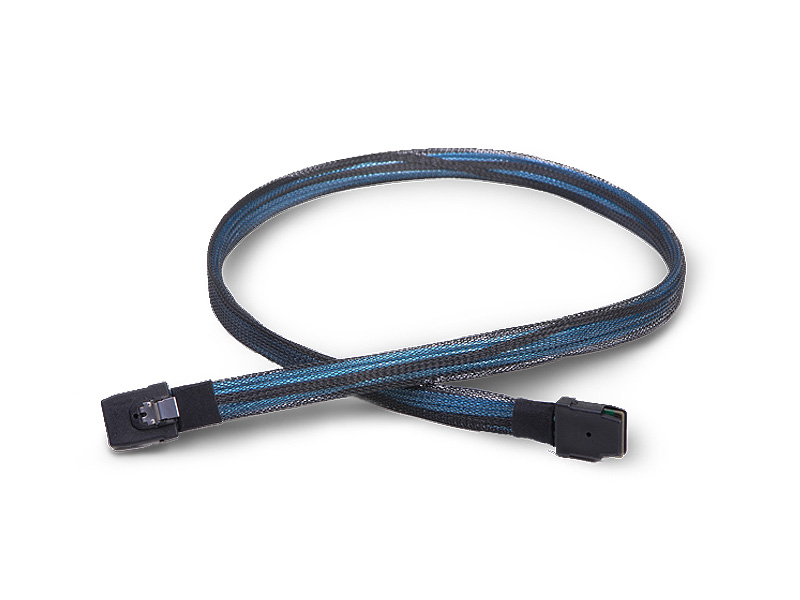

    Cable, Mini-SAS HD, SFF-8087 to SFF-8087, 950mm, For Rear HDD Cage

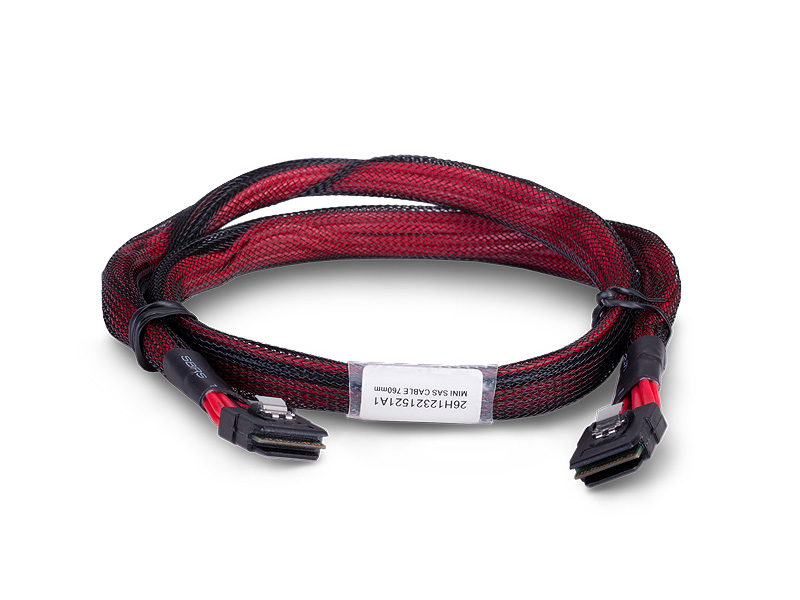

    Cable, mini-SAS, SFF-8087 to SFF-8087, 760mm, For Rear HDD Cage
    HDD Cage
    2-Bay SSD HDD module (Rear), SATA cable *2, Power cable *1
    HDD Cage

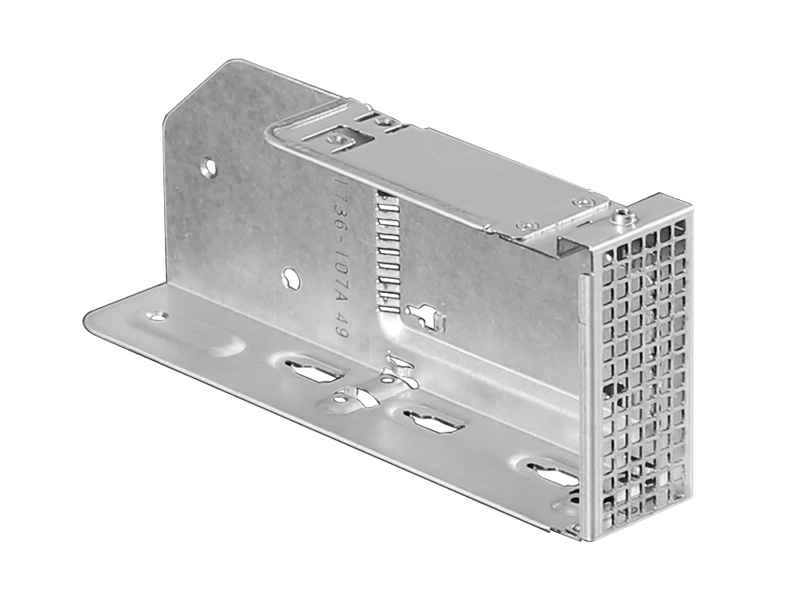

    2-bay 2.5" HDD BKT, Internal
    Power Supply

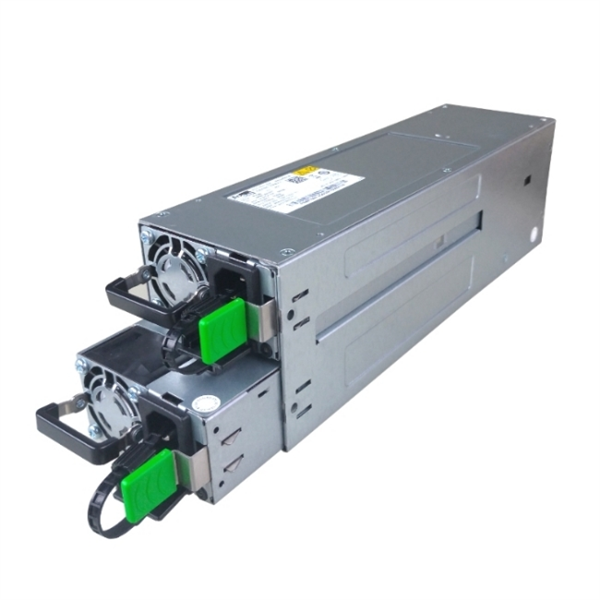

    CRPS 1200W Acbel with PSU BKT

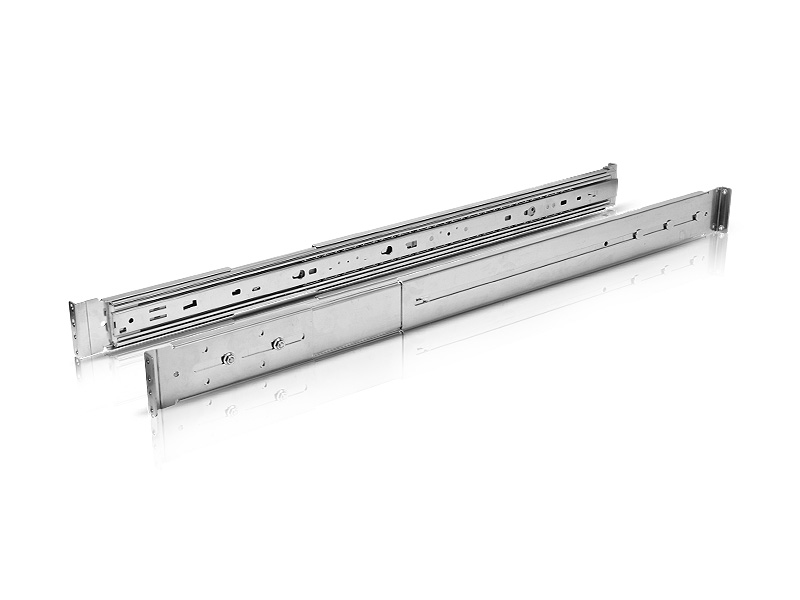

    Slide Rail
    27“, P2P:28.8" to 40.8", Traveling Distance 27.7", Loading Weight 75 Kg, Non Tool-less
    Slide Rail
    27“, P2P:28" to 36", Traveling Distance 29", Loading Weight 75 Kg, Tool-less
