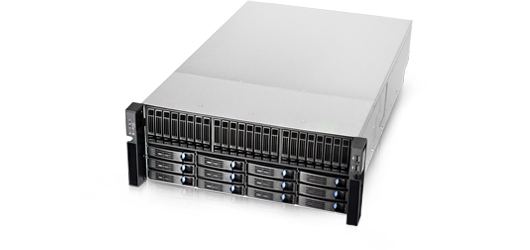

RM417 Series (EOL)
4U Modular Double Access Storage Server Chassis

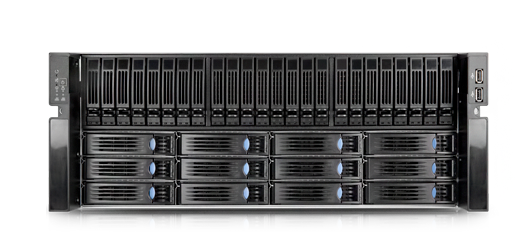

With front and rear installed 2.5"/3.5" HDD cages, it offers extra high density HDD in a 4U form factor.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare

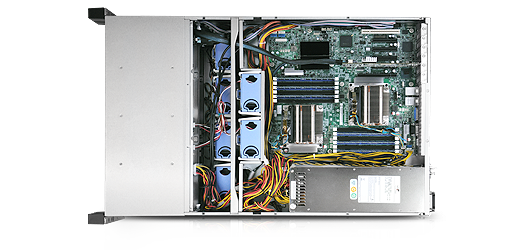

Features & Benefits
  • Supports M/B up to 12” x 13”
  • Modular design on 2.5”, 3.5” HDD cages and M/B tray

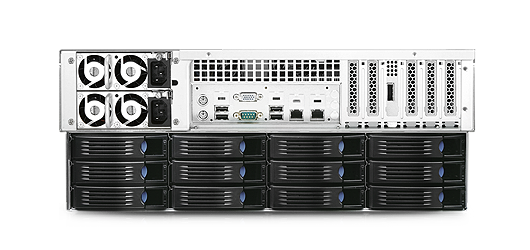

  • Front and rear side HDD cage installation

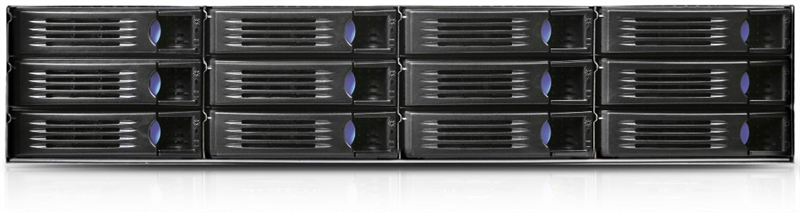

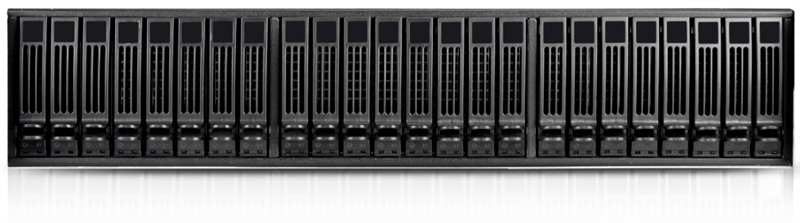

  • Versatile front device configurations via 3 types of modular cages
  • 12Gb/s mini-SAS HD backplane with expander
  • Built-in 6 x 80mm hot-swap PWM fans
  • Optional 2 x 40mm rear fans
  • Sturdy chassis structure through side-folded
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor SSI EEB (12" x 13")
    Dimension (D x W x H) 699.0 x 432.0 x 176.0 (mm)
    27.52” x 17.00” x 6.93”
    Drive Bay RM41736 (3.5" Hot-swap)：36
    RM41772 (2.5" Hot-swap)：72
    Storage Backplane RM41736 : 3.5” 24-port 12Gbps, Mini-SAS HD, Expander (1)
    3.5" 12-port 12Gbps, Mini-SAS HD, Expander (1)
    RM41772 : 2.5” 24-port 12Gbps, Mini-SAS HD, Expander (3)
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Status
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    Cooling Fan Middle : 80 x 38 mm (6) Hot-swap
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 6 x Low Profile
    Net Weight 42.0 Kg / 92.70 lb
    Gross Weight 43.0 Kg / 94.80 lb
    Cubic Feet 8.53
    Container Loading (Single Packing) 20': 105, 40': 215, 40'H: 258
  • Category Description Revision Size Download
    Datasheet RM417 Series Datasheet V1.2 3.5 MB
    Driver 6Gb/s SAS Expander with FW1401/0701, for Windows Server 2003 V1.1 576 Bytes
    Quick Installation Guide (QIG) RM417 Series_QIG V1.1 5.1 MB
    User Manual 6Gb/s 24-port 3.5" Expander Backplane(80H10341801A0), For 24-bay 3.5" Hot-swap HDD Cage V1.0 669.9 KB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10321516A1), For 8-bay 3.5" Hot-swap HDD Cage V1.0 664.7 KB
  • Category Part. No# Description Support
    Bezel

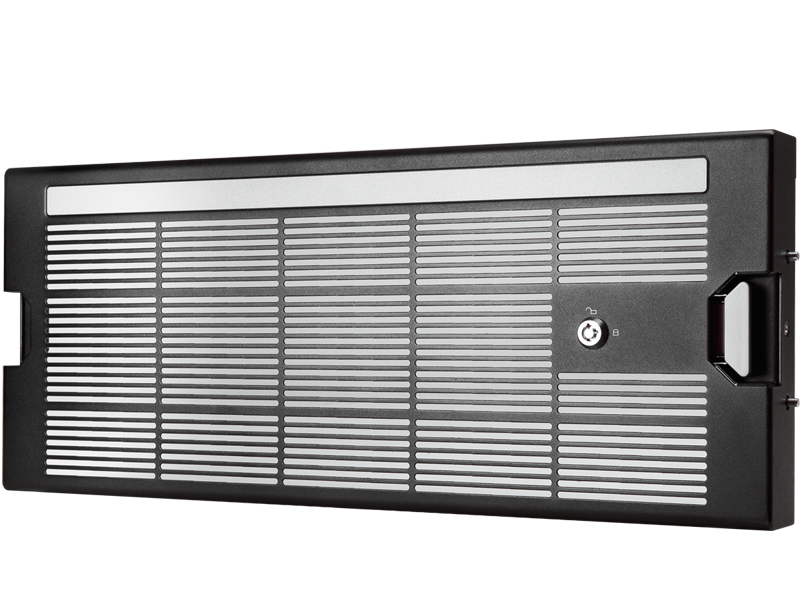

    84H341810-025    		 Front Panel, 4U, RM41824, Metal, Black(CC1012)
    Bracket
    84H341710-003    		 BRACKET, PSU, For R2IS7112A-G
    Bracket
    84H341710-006    		 HDD Bracket, 2 x 2.5", Internal, Tool-less(NCT Part MOQ: 100 pcs)
    Cable
    26H12321521A1    		 Cable, mini-SAS, SFF-8087 to SFF-8087, 760mm, For Rear HDD Cage
    Cable
    26H12323214B1    		 mini-SAS, Internal To External, 650mm
    Fan
    84H321710-010    		 40mm, 3P3C, T28, Ball Bearing, L300mm, SANYO DENKI
    HDD Cage
    384-23501-3100A0    		 2.5" HDD cage, 24-port 12Gb/s EXP mini-SAS HD
    HDD Cage
    84H341810-007    		 HDD CAGE, Slim ODD CAGE
    HDD Cage
    84H341810-035    		 12BAY 3.5" 12port 12Gbps EXP Mini-SAS HD HDD Cage
    Power Supply
    32H2110001101    		 1100W,1+1 Redundant, Acbel R2IS7112A-G, 80+ Gold, PM Bus V1.2
    Slide Rail
    84H341810-002    		 27“, P2P:28.8" to 40.8", Traveling Distance 27.7", Loading Weight 75 Kg, Non Tool-less
    Slide Rail
    84H341810-046    		 27“, P2P:28" to 36", Traveling Distance 29", Loading Weight 75 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code Middle Fan Front HDD Cage Rear HDD Cage PSU Slide Rail
    RM41736E3-RE00G 80x38(6) 24-Bay 3.5", Expander 12-Bay 3.5", Expander 1.4KW RPSU Included
