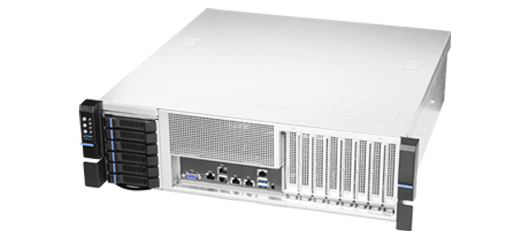

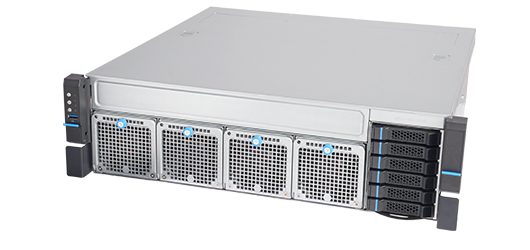

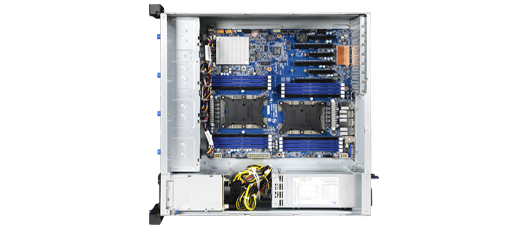

RM352 Series
3U GPGPU Short Depth Edge Computing Server Chassis
3U short depth server chassis is designed for full height expansion and flexible hot swap fan access, delivering unrivaled GPGPU horsepower for central office and base station applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • 450 mm ultra-short chassis fits various environments and is perfect for footprint minimization.
  • Optimized I/O design for machine learning in edge sites offering up to eight full-height PCIe expansion slots for GPU/FPGA accelerator cards.
  • Equipped with latest tool-less design, storage, HDD trays, system fans and PCIe riser brackets for easy upgrades and maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

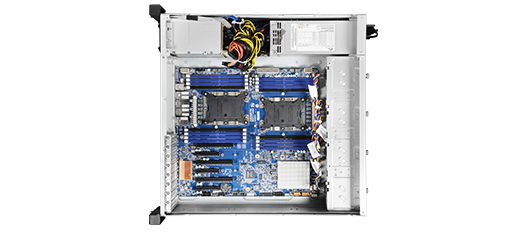

  • MB Form Factor SSI EEB (12” x 13”), CEB (12” x 10.5”), ATX (12” x 9.6”)
    Dimension (D x W x H) 450.0 x 438.0 x 131.0 mm; 17.72” x 17.24” x 5.15”
    Drive Bay RM35206(RIO/FIO):6
    RM35206(RIO/FIO):2
    Storage Backplane 2.5” 6-port 12Gbps SAS/SATA
    2.5” 2-port 12Gbps SAS/SATA
    2.5” 2-port PCIe Gen3 NVMe
    2.5” 2-port PCIe Gen4 NVMe
    PSU Form Factor 2U 1600W 1+1 CRPS
    Indicator 1 x Power Status, 2 x LAN Activity, 1 x UID,
    1 x HDD Status, 1 x System Alarm
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0

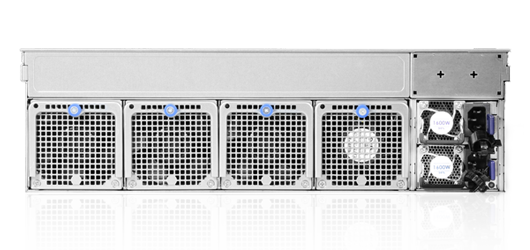

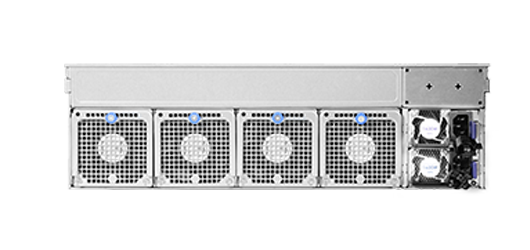

    Cooling Fan Rear : 80 mm(4) , 11000 RPM
    up to T=38 mm, Hot-swap

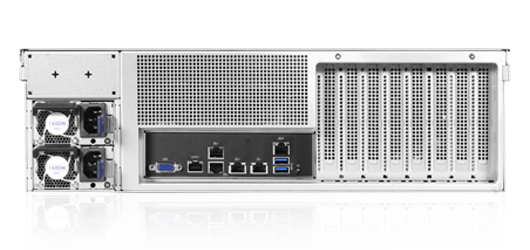

    Expansion Slot Opening 8 x Full Height ( 3 x Double-width GPGPU )
    Net Weight 11.595 KG/PCS
    Gross Weight 15.1 KG/CTN
    Cubic Feet 3.39
    Container Loading (Single Packing) 20' FCL: 154 PCS / 40' FCL: 336 PCS
  • Category Description Revision Size Download
    Datasheet RM352 upgrade Datasheet V1.0 520.6 KB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code
    RM35206 FIO : RM35206H01*15622
    RM35206 RIO : RM35206H01*15623
