RM25324
2U 24-Bay High Density Storage Server Chassis
2U high-density Dual load storage server chassis is designed for computing and storage with 24 x 3.5” side access hot-swap hard drives and ATX motherboard support.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Ultra-dense 2U storage server optimized for warm and cold data tiering

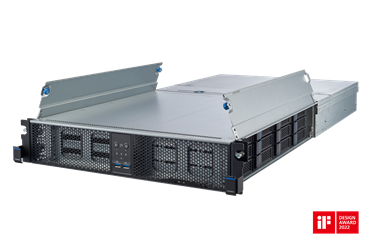

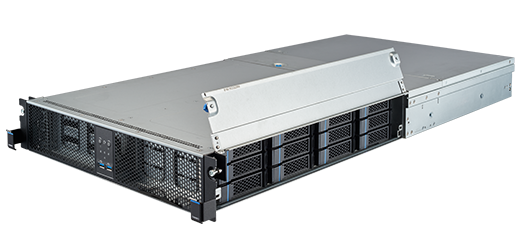

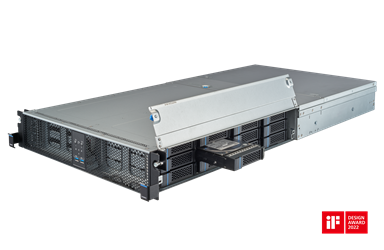

  • Innovative Dual-load design for side access 24 x 3.5” hot-swap HDD
  • 5+1 redundant cooling

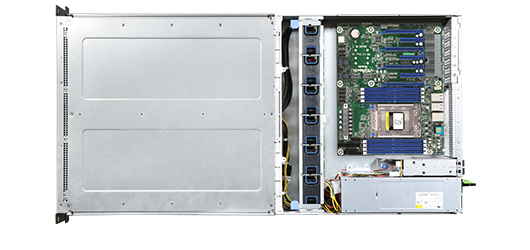

  • Flexible ATX single/dual socket M/B support

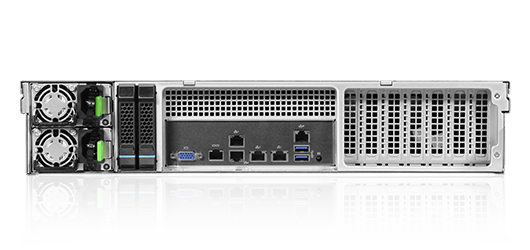

  • Full I/O expansion slot support
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor ATX (12" x 9.6")
    Dimension (D x W x H) 880.0 x 438.0 x 87.0 mm; 34.65” x 17.24” x 3.43”
    Drive Bay 3.5" Hot-swap：24
    2.5" Hot-swap (Option)：2
    Storage Backplane 2 x 3.5” 12-port 12Gbps SAS Expander
    1 x 2.5" 2-port 12Gbps SAS/SATA or NVMe Gen 3 (Option)
    PSU Form Factor 2U Redundant CRPS 1+1, 800W (80+, Platinum)
    Indicator 1 x Power Status, 1 x UID, 2 x LAN Activity
    1 x HDD Status, 2 x HDD Failure, 1 x System Alarm

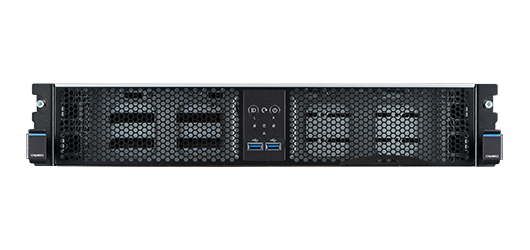

    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
    Cooling Fan Middle: 6 x 60 mm, PWM, 23000 RPM, Hot-swap
    Expansion Slot Opening 7 x Low Profile or 3 x Full Height (Option)
    Net Weight 21 KG/PCS
    Gross Weight 26 KG/CTN
    Cubic Feet 5.60
    Container Loading (Single Packing) 20' FCL: 128 PCS / 40’ FCL: 320 PCS
  • Category Description Revision Size Download
    Datasheet RM25324 Datasheet V1.2 V1.2 1.4 MB
    User Manual RM25324 user manual v1.0 3.2 MB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code
    RM25324H01*15682 : 2U 24-Bay 3.5” Sideloaded Storage with PSU
    RM25324H01*15683 : 2U 24-Bay 3.5” Sideloaded Storage without PSU
