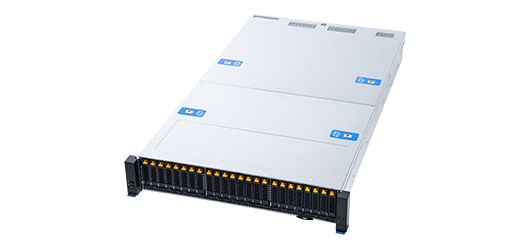

RM251 Series L-shaped
RM251 Series L-Shaped(Genoa platform)
2U High-Performance Computing Server for Enterprise and Cloud Applications
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B size up to 18.8 " x 16.8".
  • 4TH GEN AMD EPYC™Processor, EPYC 9004 series ( support up to TDP 280W) 2-socket server configurations.
  • High-performance SAS/SATA/NVMeGen 4 storage, equipped with 24 port 2.5" (3pcs x 8-port) 16G NVMeGen 4 SSD Backplane or 12 port 3.5" 8 Tri-mode (SAS/SATA/NVMe Gen 4) + 4 SAS/SATA3 Backplane.
  • Easy service tray-less 2.5" HDD (up to 24 bays) / 3.5 HDD trays (up to 12 bays.)
  • Built-in front access USB 2.0 and USB 3.0 ports, VGA supported.

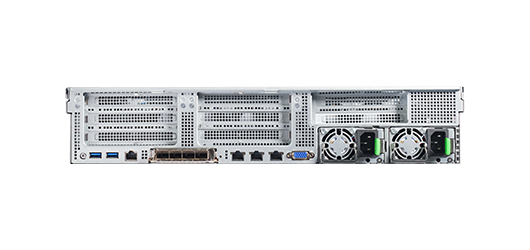

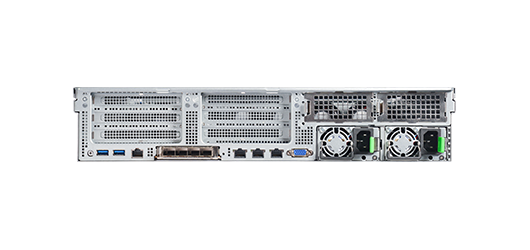

  • Supports 8 FH PCIe slots, up to PCIe 5.0 and OCP 3.0 module.
  • Supports 1+1 redundant CRPS, 2000W.
  • Sliding rail supported for easy maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

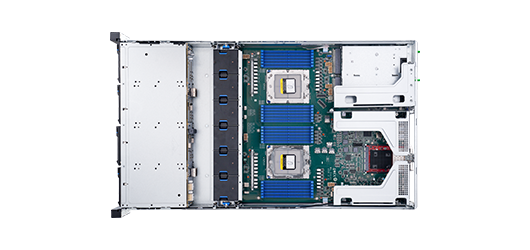

  • MB Form Factor MSI® Server Board S3121 (18.8" x 16.8")
    Dimension (D x W x H) 770.0 x 438.0 x 87.0 mm; 30.3” x 17.24” x 3.4”

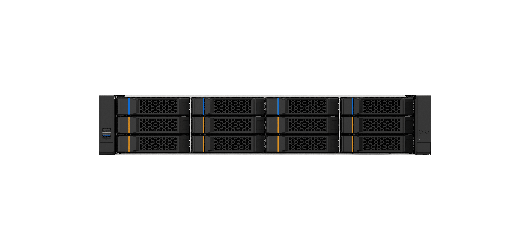

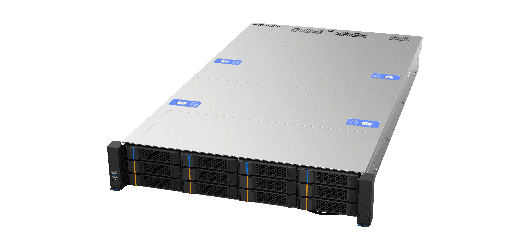

    Drive Bay 3.5" Combo bays, Hot-swap; supports 8 tri-mode + 4 SAS/SATA3：12

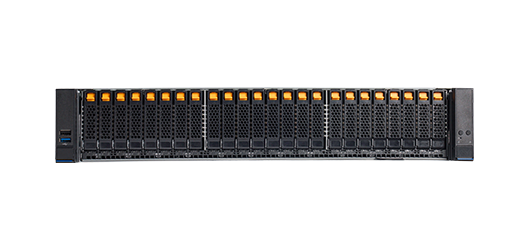

    2.5" Tray-less, Hot-swap; supports NVMe Gen 4：24
    Storage Backplane 2.5" SKU: 3 x 8-port 16 Gb/s NVMe Gen 4 supported
    3.5” SKU: 1 x 12-port ( 8 tri-mode 16 Gb/s <NVME Gen 4/ SAS/ SATA3> + 4 12 Gb/s SAS/SATA3 supported
    PSU Form Factor 1+1 CPRS 2000W (80+ Platinum,) redundant power supply
    Indicator 1 x Power Status, 1 x UID, 1 x HDD Activity, 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0, 1 x USB 2.0
    Cooling Fan 6 x 6038, 23000 RPM, Hot-swap
    System Security N/A
    Expansion Slot Opening 8 x Full-height ( 3 x PCIe5.0 x16 <x16/x8/x8>,3 x PCIe5.0 x16 <x8/x16/x8>, 1 x PCIe5.0 x 16 supported.)
    Net Weight 23.1 KG/PCS
    Gross Weight 32.5 KG/PCS
    Cubic Feet 4.55 ft3
  • Category Description Revision Size Download
    Datasheet RM251 series L-shaped (Genoa platform) Datasheet v1.0 300.5 KB
  • Category Part. No# Description Support
    CMA
    384-23703-3300A0    		 AS'Y COMPONENT, CABLE MANAGEMENT ARM
    Fan
    130-06038-3103A0    		 FAN,60*60*38,23000RPM,PWM,L40MM,6P6C
    Power Supply
    132-42000-0701A0    		 CRPS,2000W,FULL,ACTIVE PFC,R1CA2202B-P00A(62368)
    Slide Rail
    384-15103-3301A0    		 SLIDE RAIL,TRAVEL:820MM,CHASSIS
    Slide rail(two-section)
    384-15103-3300A0

    AS'Y COMPONENT,TRAVEL:560MM,TOOLLESS,NON-AUTO LOCK
    Click Part. No# to view item picture
  • Order Code
    RM2511204-001000
    RM2512406-001000
