RM23812 MIO

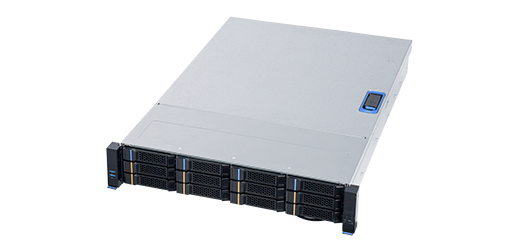

2U 12 Bay Multiple I/O Throughput Storage Server Chassis
2U storage server chassis with 12 x 3.5" Combo Bay HDDs and up to EATX M/B with multiple I/O throughput supports for cloud high-performance computing and data storage backup applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

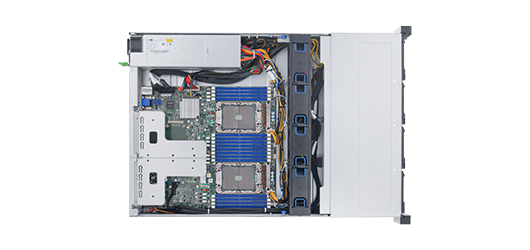

  • Supports EEB (12" x 13") board form factor and uses spread core with a dual processor for well thermal performance.
  • Supports six FHHL PCIe x16 Gen 4 added-in card slots and rear access panel for multiple I/O throughput cloud data streaming.
  • 1+1CRPS 1200W power supply for system reliability.
  • Versatile front storage configuration supported for data storage backup:

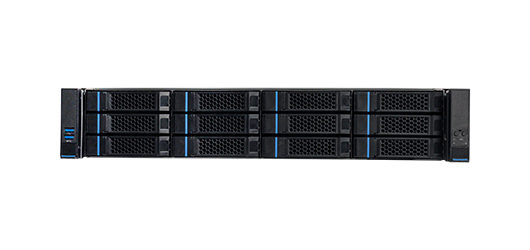

  • -12 x 3.5" Combo Bay (SAS/SATA/NVME Gen. 4 ) hot-swappable HDD,

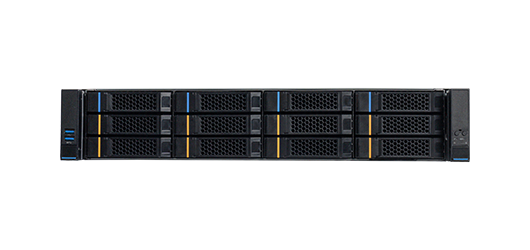

  • -12 x 3.5" Bay (SAS/SATA) expander hot-swappable HDD
  • Sliding rail supported for easy maintenance.
  • Specifications
  • Download
  • Accessory
  • Compatibility
  • Order information
  • MB Form Factor Intel M20NTPSB(12 X 13.1 "), Tyan 7126 12" x 13“)
    Dimension (D x W x H) 660mm x 438mm x 87mm ; 26’’ x 17.6’’ x 3.4’’
    Drive Bay 3.5" Hot-swap：12
    Storage Backplane 12 port 12Gbps SAS/SATA Expander Backplane,
    12 port 8T4S Combo Bay (12Gbps SAS/SATA / Gen 4 NVME )
    PSU Form Factor 2U Redundant CRPS (1+1), 1200W (80+ Platinum)
    Indicator 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Activity, 1 x System Alarm
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
    Cooling

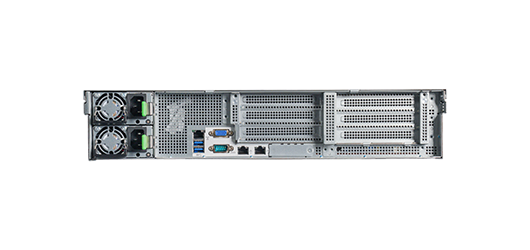

    Rear Expansion Port Dual riser by butterfly bracket
    3 x Full Height and Half Length (Intel # M20NTP2URISER1 or Tyan # M7126T65R32 3F ,1 xPCIe 4.0 x16 & 2 x PCIe 4.0 x8 supported)
    3 x Full Height and Half Length (Intel # M20NTP2URISER2 or Tyan # M7126T65L32 3F , 1 xPCIe 4.0 x16 & 2 x PCIe 4.0 x8 supported)
    Cooling Fan 4 x 80mm (T:38mm),14400 RPM, Hot Swap, PWM w/ 1 x Air Baffle
    Expansion Slot Opening Dual riser by butterfly bracket
    3 x Full Height and Half Length (Intel # M20NTP2URISER1 or Tyan # M7126T65R32 3F ,1 xPCIe 4.0 x16 & 2 x PCIe 4.0 x8 supported)
    3 x Full Height and Half Length (Intel # M20NTP2URISER2 or Tyan # M7126T65L32 3F , 1 xPCIe 4.0 x16 & 2 x PCIe 4.0 x8 supported)
    Net Weight 14.8kg
    Gross Weight 18kg
    Cubic Feet 830*590*190mm (3.28 ft3)
    Container Loading (Single Packing) 20’=220pcs(w/ Pallet)
    40’=460pcs(w/ Pallet)
  • Category Description Revision Size Download
    Datasheet RM23812MIO Datasheet v1.0 680.7 KB
  • Category Part. No# Description Support
    Cable
    126-14512-3021A0    		 Cable, Mini-SAS HD to mini-SAS HD, 850mm
    CMA
    384-CMA00002S0A0

    CMA Kit
    HDD cable
    126-30000-0120A0

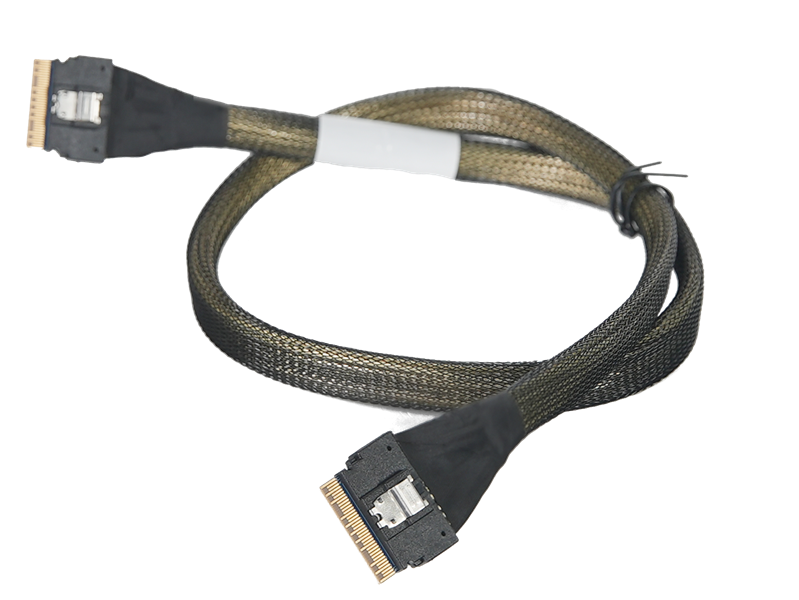

    HDD Cable: SlimSAS (8i to 8i )
    HDD cable
    126-30000-0191A0

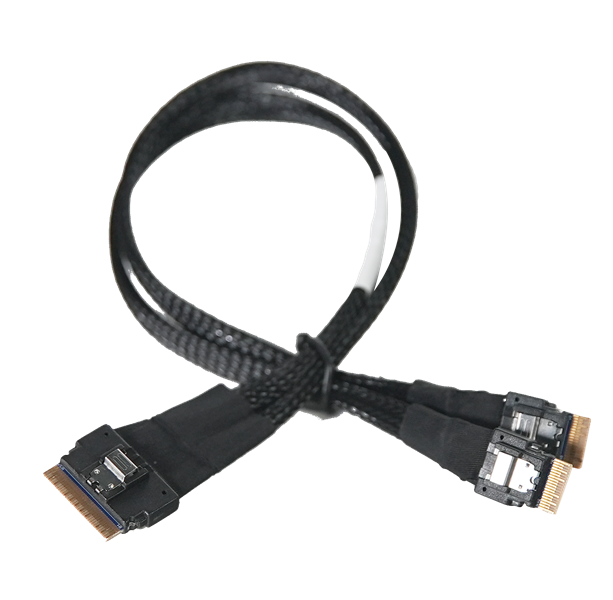

    HDD Cable: SlimSAS(8i to 2 x 4i )
    Power Supply
    132-41200-0700A1    		 1200W Redundant module, 80+ Platinum (Acbel/R1CA2122A)
    Riser Card Retention(w/o riser card)
    384-MEC02474B0A0

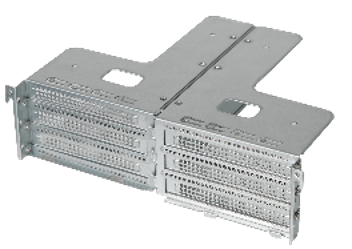

    Riser Card Retention(w/o riser card)
    Slide Rail
    384-RAL00024S0A0
    Click Part. No# to view item picture
  • Order Code
    RM23812-M3-RPC-MR
    RM23812-N4-RPC-MR
