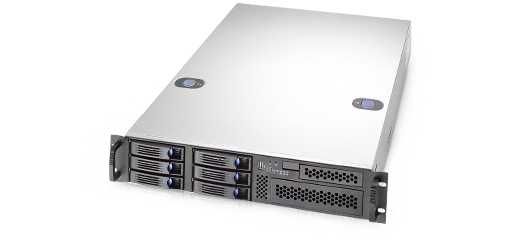

RM21706
2U Industry Standard Server Chassis
Offers expandable storage bays and cooling fans for critical business demand.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

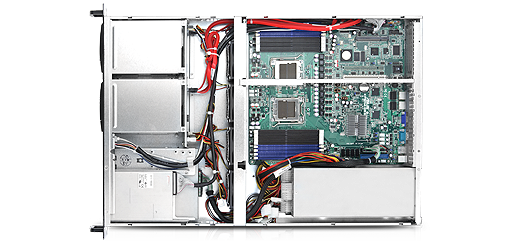

  • Supports M/B up to 12” x 13”
  • Supports 12Gb/s SAS/SATA backplane

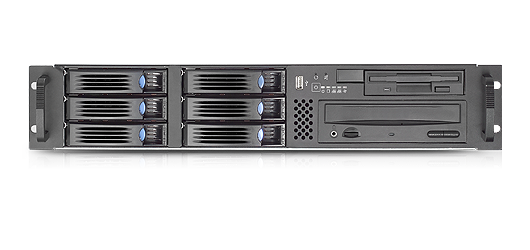

  • Versatile configurations available via exposed 1 x 5.25” and 1 x 3.5” bays
  • Optional 4 x hot-swap fan modules

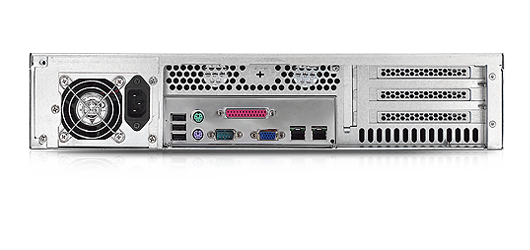

  • Supports 3-slot full height and 6-slot low profile rear windows
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor SSI EEB (12" x 13")
    Dimension (D x W x H) 659.6 x 430.0 x 88.1 (mm), 25.97” x 16.93” x 3.47”
    Drive Bay External 5.25"：1
    External 3.5"：1
    3.5" Hot-swap：6
    Internal 3.5"：1
    Storage Backplane 3.5" 6-port 12Gbps, SATA 7pin
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Status
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x Alarm Mute
    1 x USB2.0
    Cooling Fan Middle: 80 x 32 mm (4)
    Rear: 40 x 28 mm (2), Option
    System Security Intrusion Switch
    Expansion Slot Opening 3 x Full Height or 6 x Low Profile
    Net Weight 9.5 kg/20.93 lb
    Gross Weight 13.4 kg/29.52 lb
    Cubic Feet 4.26
    Container Loading (Single Packing) 20’: 250, 40’: 520, 40’H: 575
  • Category Description Revision Size Download
    Datasheet RM21706 Datasheet V1.2 1014.1 KB
    User Manual 3Gb/s 6-port 3.5" SATA/SAS Backplane(80H103217-004) V1.0 762.7 KB
    User Manual 6Gb/s 6-port 3.5" SATA/SAS Backplane(80H10321712A0), Rev.A0 V1.0 363.4 KB
    User Manual 3Gb/s 6-port 3.5" mini-SAS Backplane(80H10321709A0) V1.0 442.1 KB
    User Manual 6Gb/s 6-port 3.5" mini-SAS Backplane(80H10321711A0), Rev.A0 V1.0 4.5 MB
    User Manual RM21706 Quick Installation Guide V1.1 513.4 KB
  • Category Part. No# Description Support
    Bezel

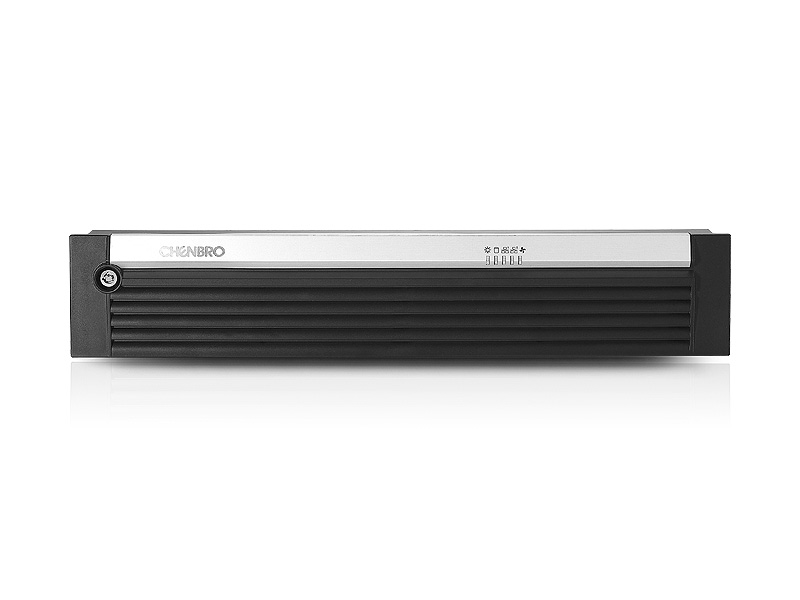

    84H321410-033    		 Front Bezel, 2U, Plastic, SilFox
    Bezel

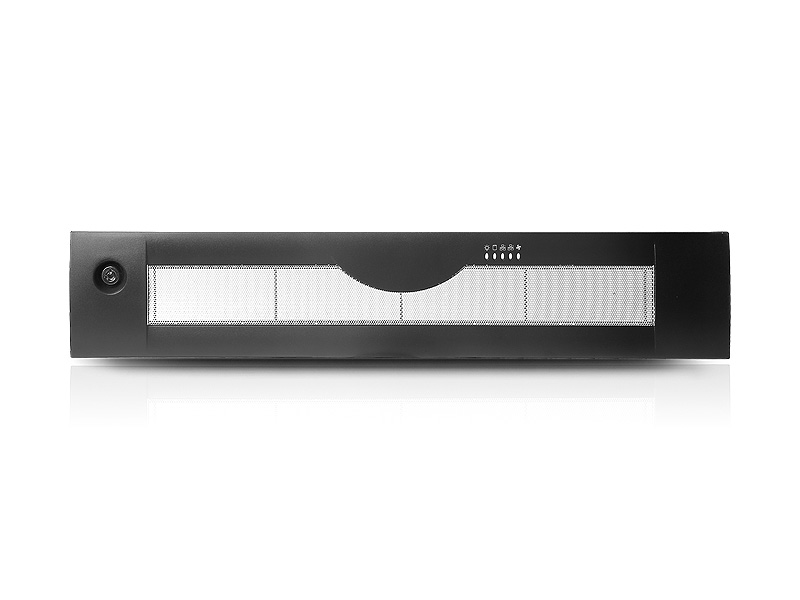

    84H321410-049    		 Front Bezel, 2U, Plastic, w/metal mesh
    Bracket
    84H311110-003    		 Bracket, Extension mounting plate
    Bracket
    84H321710-045    		 PSU Bracket, For R2IS7651A-G/R21S7871A-G
    Fan
    84H321710-010    		 40mm, 3P3C, T28, Ball Bearing, L300mm, SANYO DENKI
    Power Supply
    132-20650-0701C1    		 PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply
    32H151002-002    		 510W P2G-6510P (Chenbro Special)
    Power Supply
    32H2065001101    		 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Rear Window

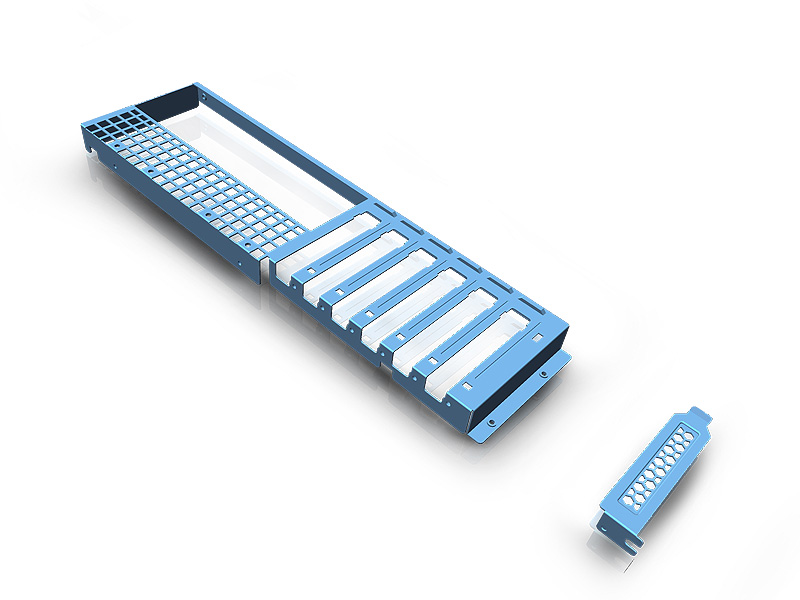

    84H321210-050    		 Rear Window, 6-slot, Low Profile
    Rear Window

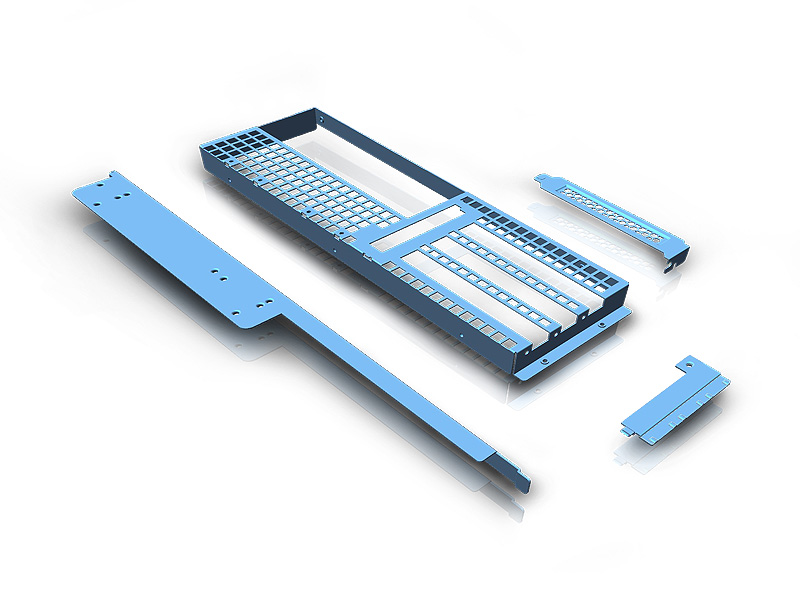

    88H321400-001    		 Rear Window, For Non-hotswap Fan, w/ 1 pc Riser Card Retainer
    Slide Rail
    84H321710-041    		 Slide Rail, 26", Tool-less
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
    Click Part. No# to view item picture
