DS25224

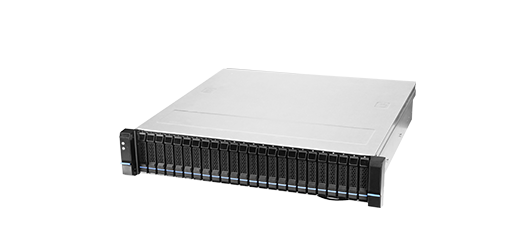

2U Compact JBOD
Supports 2.5" tool-less SAS or SATA drives, with the 12Gbps redundant expanders, it offers optimal reliability for high-density storage in Big Data era.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Small form factor 2U JBOD
  • Super cool HDD working temperature (<50C, during 30C)
  • Supports 3 hot-swap system cooling
  • Supports CRPS 1+1 redundant
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor N/A
    Dimension (D x W x H) 450.0 x 438.0 x 87.0 (mm)
    17.72" x 17.24" x 3.43"

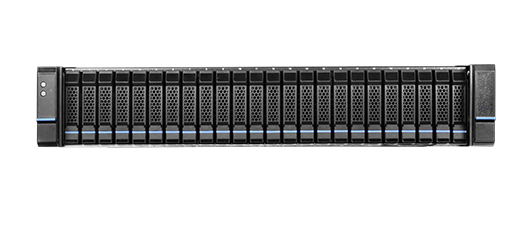

    Drive Bay 2.5" Hot-swap：24
    Storage Backplane 3 x 2.5" 8-port 12Gbps SAS/SATA Dual Path Passive BP
    PSU Form Factor CRPS 1+1, 550W
    Indicator 1 x Power Status
    1 x HDD Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID

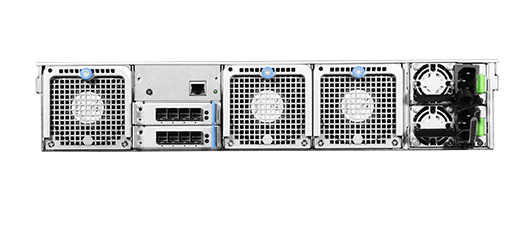

    Cooling Fan Rear: 3 x 80 (mm) (T = 38 mm), PWM, Hot-swap

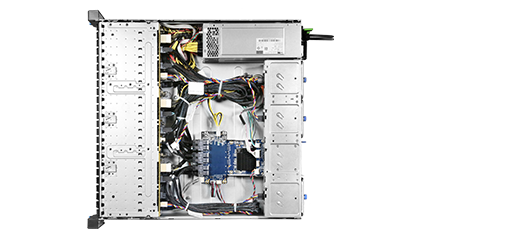

    Expander Controller 2 x 4 x SFF-8644, 40-port redundant expander
    1 x 4 x SFF-8644, 40-port redundant expander (option)
    BMC RJ45 external access BMC Module
    Net Weight 11.8 KG/PCS
    Gross Weight 14.8 KG/CTN
    Cubic Feet 2.8
    Container Loading (Single Packing) 20’ FCL: 208pcs / 40’ FCL: 448pcs
  • Category Description Revision Size Download
    Datasheet DS25224 Data Sheet v1.0 v1.0 1.4 MB
