RM151 Series L-shaped
RM151 Series L-shaped(Genoa platform)
1U High-Performance Computing Server for Enterprise & Cloud Applications
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B size up to 18.8 " x 16.8".

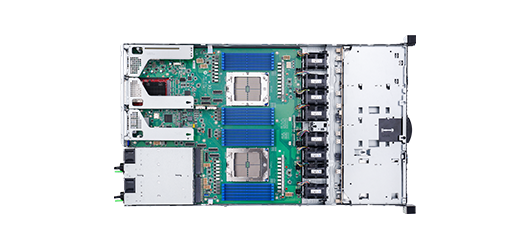

  • 4TH GEN AMD EPYC™Processor, EPYC 9004 series (Genoa), 2-socket server configurations.
  • High-performance SAS/SATA/NVMeGen 4 storage, equipped with 12 port 2.5" (3pcs x 4-port) Backplane, or 4-port 3.5" (1pcs x 4-port) SAS/SATA 3 Backplane.

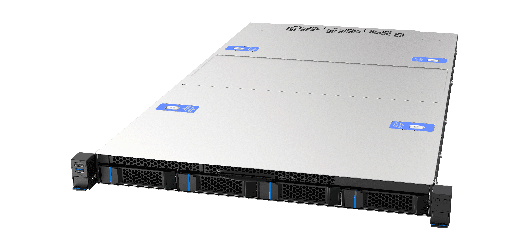

  • Easy service tray-less 2.5" HDD (up to 12 bays) / 3.5 HDD trays (up to 4 bays.)
  • Built-in front access USB 2.0 and USB 3.0 ports.

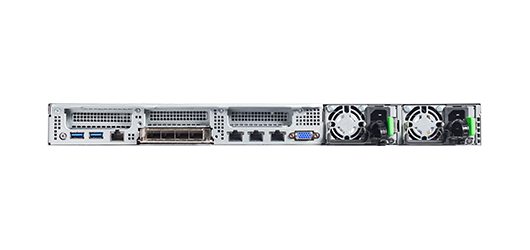

  • Supports 3 HHHL PCIe slots up to PCIe 5.0 and OCP 3.0 module.
  • Supports 1+1 redundant CRPS, 1600W.
  • Sliding rail supported for easy maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor MSI® Server Board S3121 (18.8" x 16.8")
    Dimension (D x W x H) 770 x 438.5 x 43.0 mm; 30.3” x 17.26” x 1.7”

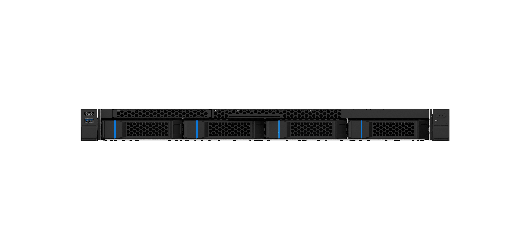

    Drive Bay 3.5" bays, Hot-swap; supports SAS/SATA3:4

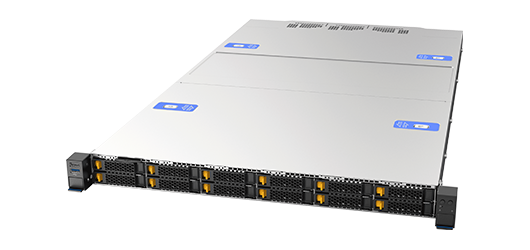

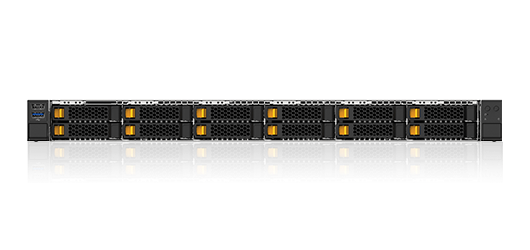

    2.5" Tray-less, Hot-swap; supports NVMe Gen 4:12
    Storage Backplane 2.5" SKU: 3 x 4-port 16 Gb/s NVMe Gen 4 supported
    3.5" SKU: 1 x 4-port 12 Gb/s SAS/SATA3 supported
    PSU Form Factor 1+1 CRPS 1600W (80+ Platinum,) redundant power supply
    Indicator 1 x Power Status, 1 x UID, 1 x HDD Activity, 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0, 1 x USB 2.0
    Cooling Fan 8 x 4056, 23000RPM, Non-hot swap
    System Security N/A
    Expansion Slot Opening 3 x half-height and half-length (1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16 supported.)
    Net Weight 20.25 KG/PCS
    Gross Weight 24.25 KG/PCS
    Cubic Feet 4.55 ft3
  • Category Description Revision Size Download
    Datasheet RM151 Series L-shaped Datasheet v1.0 339.6 KB
  • Category Part. No# Description Support
    CMA
    384-23703-3300A0
    AS'Y COMPONENT, CABLE MANAGEMENT ARM
    Fan
    130-04056-3116A0
    FAN,40*40*56,22900/23200RPM,PWM,L40MM,8P8C
    Power Supply
    132-41600-0701A0
    CRPS,1600W,FULL RANGE,80PLUS(PLATINUM),ACTIVE PFC
    Slide rail(two-section)
    384-15103-3300A0

    AS'Y COMPONENT,TRAVEL:560MM,TOOLLESS,NON-AUTO LOCK

    Click Part. No# to view item picture
  • Order Code
    RM1510403-001000
    RM1511204-001000
