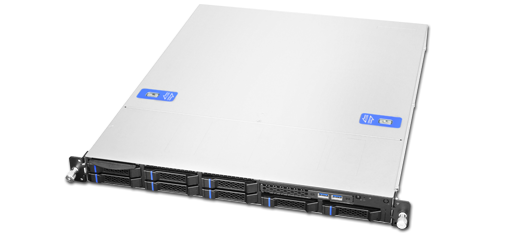

RM14608 (EOL)
1U High Disk I/O Performance Compact Server Chassis
RM14608 features easy maintenance for SMEs. It is equipped with up to 8 tool-less 2.5” HDD trays, built in 12Gb/s hot-swap backplane and supporting slim ODD with tool-less installation.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B size up to 12" x 9.6"
  • Tool-less installation HDD tray 2.5" HDD/SSD
  • 12Gb/s mini-SAS HD backplane with smart fan control
  • Supports fan thickness up to 56 mm
  • Built-in cable and air flow management kit
  • Front access information tag for easy server management
  • Supports Flex ATX PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor ATX(12" x 9.6")
    Dimension (D x W x H) 546.4 x 438.5 x 43.2 (mm) 21.51" x 17.26" x 1.70"
    Drive Bay 2.5" Hot-swap：8
    Slim ODD：1
    Storage Backplane 12Gb/s Mini-SAS HD
    PSU Form Factor Flex ATX
    Indicator 1 x Power Status, 2 x Lan Activity, 1 x HDD Activity, 1 x Fan Failure & Overheat
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 2.0/ USB 3.0
    Cooling Fan Middle: 3 x 40 mm (Up to 4), (Up to T=56 mm) PWM
    System Security N/A
    Expansion Slot Opening 1 x Full Height
    Net Weight 7.5 kg (Chassis Only)
    Gross Weight 10.0 kg
    Cubic Feet 1.84
    Container Loading (Single Packing) 20': 480, 40': 960
  • Category Description Revision Size Download
    Configuration Guide RM14608 Configuration Guide V1.1 543.2 KB
    Product Brief RM14608 Product Brief V1.1 275.9 KB
    Quick Installation Guide (QIG) RM14608 QIG V1.0 3.8 MB
    Technical Product Specification (TPS) RM14608 TPS V1.2 4.2 MB
  • Category Part. No# Description Support
    Air Duct
    50H353149A003    		 PC Transparent, For Intel S1200SPO/ S1200SPL/S1200SPS
    Cable

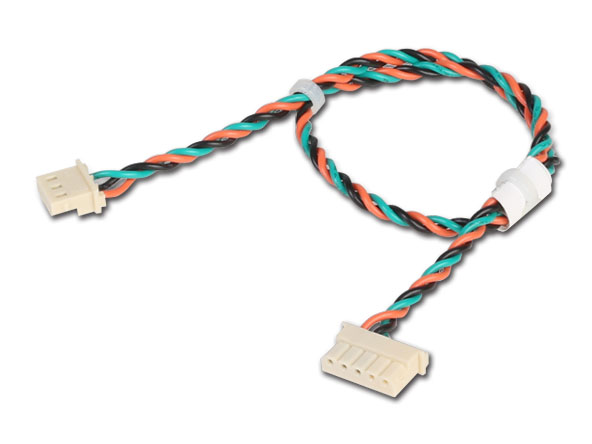

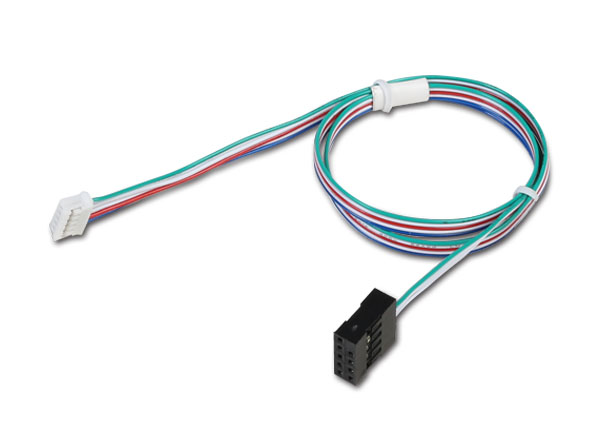

    26H11314603A0    		 SGPIO Signal, 480 mm, For Intel S1200SP
    Cable
    26H11314604A0    		 Backplane to Motherboard, 270 mm, For Intel S1200SP
    Cable

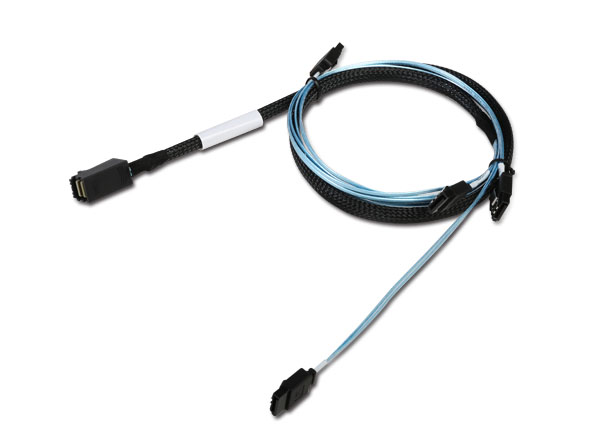

    26H12313601A0    		 Mini-SAS HD to 4*SATA, 600 mm
    Cable

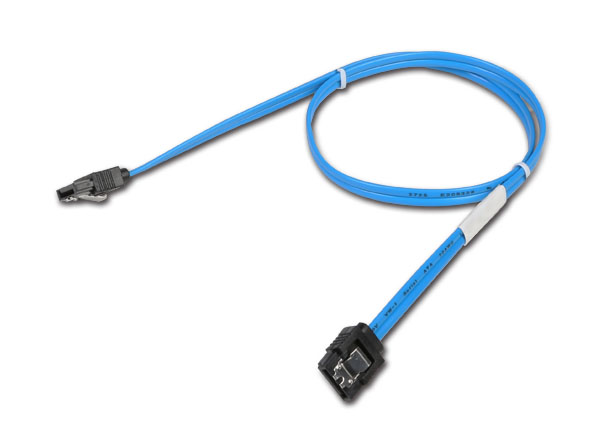

    26H12314601A0    		 SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock
    Cable
    26H12314602A0    		 SATA to SATA, 7-pin, SATAIII, 450 mm, w/lock
    Cable
    26H12314603A0    		 SATA to SATA, 7-pin, SATAIII, 550 mm, w/lock
    Cable
    26H12314604A0    		 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
    Cable
    26H12314607A0    		 Mini-SAS HD (Host) to Mini-SAS HD, 550 mm
    Cable
    26H12314609A0    		 Cable, mini-SAS HD to 4*SATA (Host), 550mm, for Intel S1200SP
    Cable
    84H314310-004    		 Cable, USB3.0, 2 x Type A Port, 750mm, w/mounting Bracket
    Heat Sink
    384-14619-3300A0    		 Heat Sink
    Power Supply

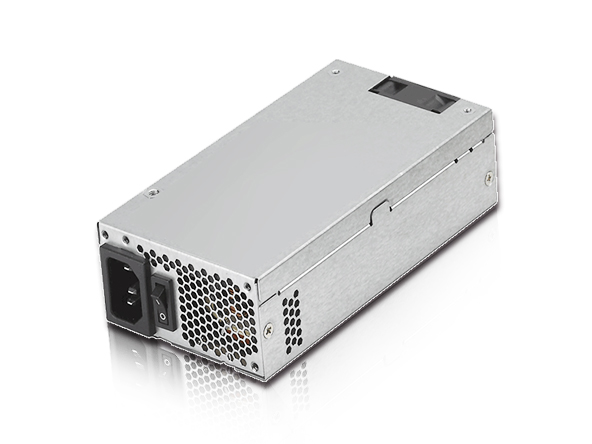

    32H1040000703    		 400W, Single, Flex ATX, 80+ Gold, FSP
    Power Supply
    32H1040001101    		 400W, Single, Flex ATX, 80+ Gold, AcBel
    Rack Handle
    384-14309-3012A0    		 Cabinet Mounting EAR, Plastic Part with Latch, Black/Black, Right
    Riser Card

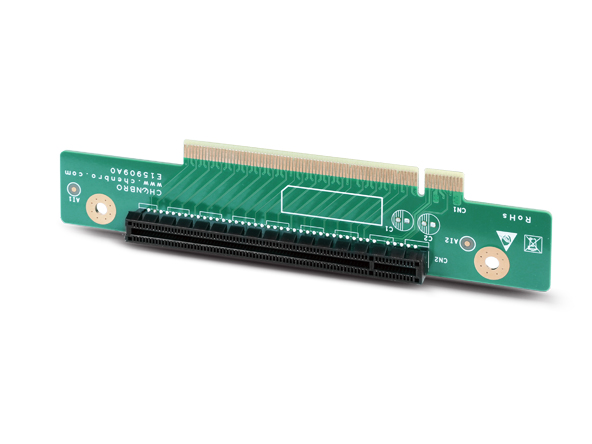

    80H09314601A0    		 PCI-e 16x, Gen 3, Rev. A0
    Slide Rail
    384-14303-3102A0    		 23.2“ Slide Rail, Post to Post: 23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6kg, Non Tool-less
    Slide Rail
    84H314610-003    		 Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code M/B Storage Backplane Middle Fan Rack Handle USB PSU Slide Rail
    RM14608M3-U2 12" x 9.6" 12Gb/s Mini-SAS HD 3 x 4028 Screw-type 2.0 Option Option
    RM14608M3-U3 12" x 9.6" 12Gb/s Mini-SAS HD 3 x 4028 Screw-type 3.0 Option Option
