RM13304 MIO

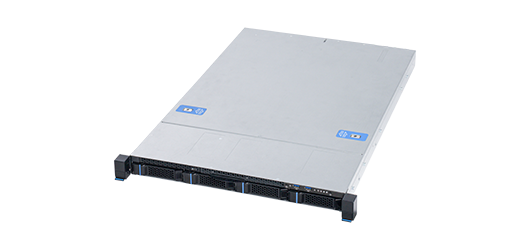

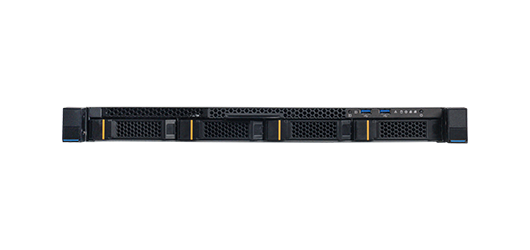

1U 4 Bay Multiple I/O Throughput Storage Server Chassis
1U storage server chassis configures w/ 4 x 3.5" Combo Bay hot-swap HDDs up to EATX M/B with multiple I/O throughput supports for cloud high-performance computing and data storage backup applications.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports EEB (12" x 13") board form factor and uses spread core with a dual processor for well thermal performance
  • Supports two HHHL PCIe x16 Gen 4 added-in card slots and rear access panel for multiple I/O throughput cloud data streaming
  • 1+1 Slim Redundant 750W power supply for system reliability
  • Versatile front storage configuration supported for data storage backup

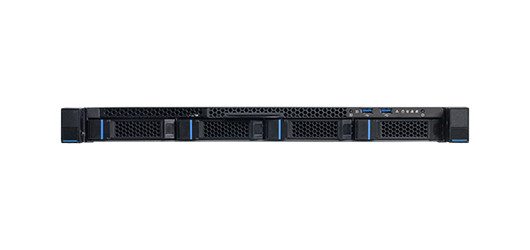

  • -4 x 3.5” Combo Bay (SAS/SATA/NVME Gen 4 ) hot-swappable HDD, internal 2 x 2.5“ HDD, and 1 x Slim ODD device
  • -4 x 3.5” Bay (SAS/SATA) hot swappable HDD, internal 2 x 2.5” HDD, and 1 x slim ODD device
  • Sliding rail supported for easy maintenance
  • Specifications
  • Download
  • Accessory
  • Compatibility
  • Order information
  • MB Form Factor Intel M20NTPSB (12” x 13.1"), Tyan 7126 (12" x 13“)
    Dimension (D x W x H) 660mm x 438.5 mm x 43.4mm ; 26’’ x 17.6’’ x 1.7’’
    Storage Backplane SKU1: 4Bay (12Gbps SAS/SATA)
    SKU2: 4Combo Bay (12Gbps SAS / SATA / Gen 4 NVME )
    PSU Form Factor 1U Slim Redundant (1+1), 750W (80+ Platinum)
    Indicator 1 x Power Status ,2 x Lan Activity, 1 x UID , 1 x System Alarm,1 x HDD Status
    Front Control 1 x Power On/Off, 1 x UID , 2 x USB 3.0
    Cooling Fan 6 x 40mm (T:28mm) ,23000 RPM, PWM w/ 2 x Dummy Cover , 1 x Air Baffle
    Expansion Slot Opening Dual riser by butterfly bracket
    1 x Low Profile and Half Length(Intel # M20NTP1URISER1 or Tyan # M7126R16 1F , 1 x PCIe 4.0 x16 supported)
    1 x Low Profile and Half Length(Intel # M20NTP1URISER2 or Tyan # M7126L16 1F , 1 x PCIe 4.0 x16 supported)
    Net Weight 10.2kg
    Gross Weight 12.7kg
    Cubic Feet 840*595*170mm (3.001 ft3)
    Container Loading (Single Packing) 20’=240pcs(w/ Pallet)
    40’=440pcs(w/ Pallet)
  • Category Description Revision Size Download
    Datasheet RM13304MIO datasheet v1.0 658.6 KB
  • Category Part. No# Description Support
    Slim SAS 4i to 4i cable

    CMA Kit

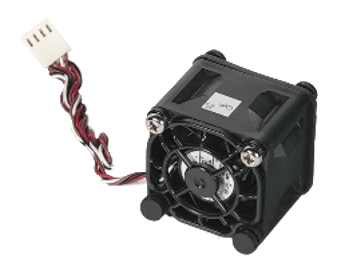

    23000 RPM 4028 Fan(w/ finger guard , rivet)

    HDD cable

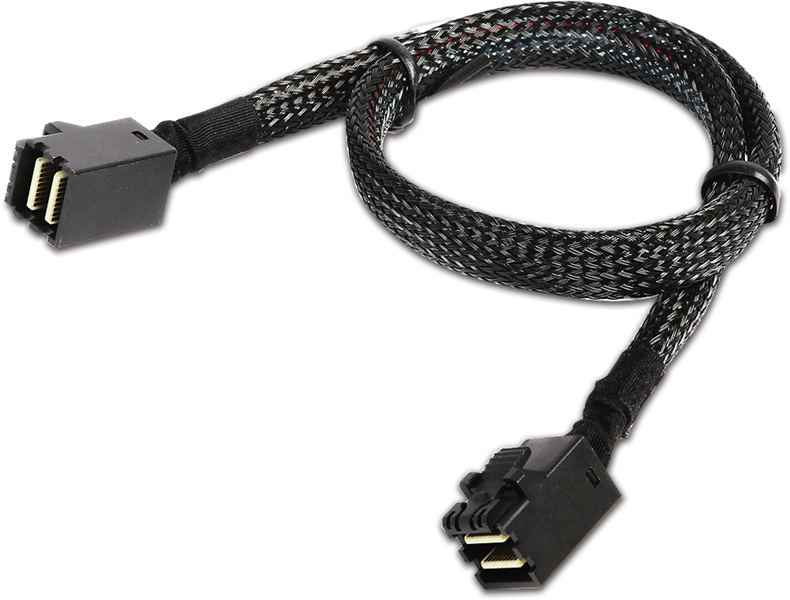

    HDD Cable:miniSAS-HD 750mm

    PSU module

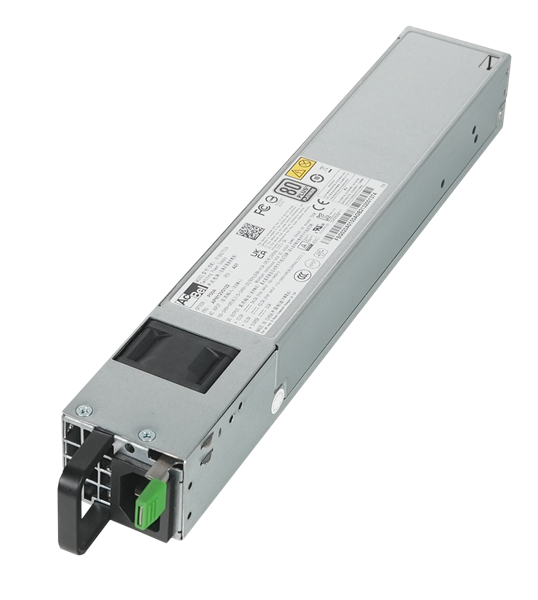

    750W Slim PSU module

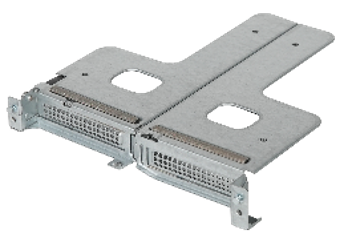

    Riser Card Retention

    Riser Card Retention(w/o riser card)

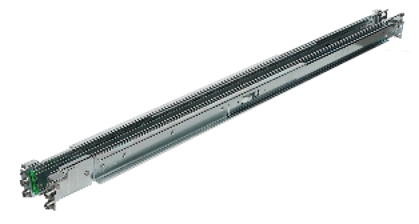

    Slide Rail
    Click Part. No# to view item picture
  • Order Code
