PC719 Series

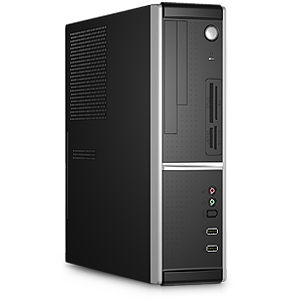

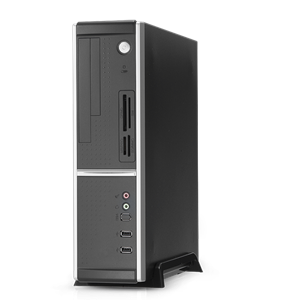

Compact Tower and Desktop Convertible uATX PC Chassis

It is designed for limited space and micro-ATX motherboard in 8-liter figure with providing various options of front bezel.

Compare

Clear GO

Quick Search

Search

Compare

Feature & Benefit
Specification
Download
Accessory
Order Information

- Supports the latest Intel platform thermal requirement
- Excellent thermal performance via air duct and side mounted 60mm fan
- Removable drive cage for easy HDD installation
- Pre-punched motherboard stand-off for quick installation
- Adjustable air duct for different CPU locations
- Built-in washable air filter
- Security provision: Padlock loop, Kensington slot and intrusion switch
- Supports TFX PSU

M/B Form Factor	Micro ATX
Dimensions (Dx Wx H)	300mm x 90mm x 326mm, 11.8" x 3.5" x 12.8"
Drive Bay	Slim ODD：1 Slim FDD：1 Internal 3.5"：1
PSU Form Factor	TFX
Indicator	1 x Power Status 1 x HDD Activity
Front Button	1 x Power On/Off 1 x System Reset 2 x USB 2.0/USB 3.0(option) 1 x Headphone Jack 1 x MIC Phone Jack
System Security	Kensington Slot, Padlock Loop, Intrusion Switch(option)
Cooling Fan	Side: 1 x 60mm(option)
Expansion Slot	4 x Low Profile
Sheet Metal Material	SECC
Metal Thickness	0.6 mm
Net Weight	2.9 Kg
Gross Weight	3.8 Kg
Container Information	20': 1,150, 40': 2,400, 40'H: 2,670

Category	Part. No#	Description	Support
Fan	30H060015-201	Fan(Evercool), 60mm, Sleeve, 3P3C, 400mm
Fan	30H060025-204	60mm, Sleeve, 3P3C, L500mm
FPIO	83H801719-002	USB2.0 x 2+ Audio(HD), w350mm cables
FPIO	83H801719-009	USB3.0 x 2+ Audio(HD), w/350mm cables
Click Part. No# to view item picture
