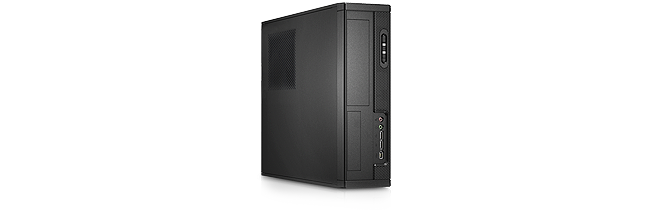

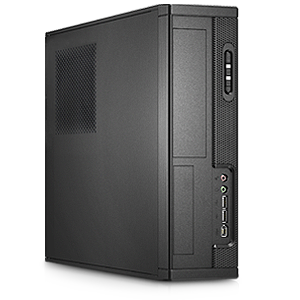

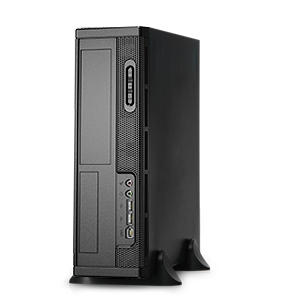

PC711 Series
Cost-effective Slim Desktop / Tower Chassis
It is designed in compact size while featuring advanced thermal technology and supporting uATX motherboard, so it is a good choice for desktop and tower deployment.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
  • Features & Benefits
  • Specification
  • Accessory
  • Download
  • Order Information
    • Intel Haswell platform thermal requirement ready
    • Compatible with Chenbro SK family through 3.5” and 5.25” drive bays
    • Supports side-mounted 80mm exhausted Fans
    • Maximum security - Top cover latch, Intrusion switch, Kensington slot, Padlock loop
    • Supports TFX PSU
  • M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 395mm x 95mm x 325mm, 15.6" x 3.7" x 12.8"
    Drive Bay External 5.25"：1
    External 3.5"：1
    Internal 3.5"：1
    PSU Form Factor TFX
    Indicator 1 x Power Status
    1 x HDD Activity
    Front Button 1 x Power On/Off
    2 x USB 2.0
    1 x System Reset
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fan Front: N/A
    Side: 1 x 80mm(option)
    Expansion Slot 4 x Low Profile
    Sheet Metal Material SECC
    Metal Thickness 0.8 mm
    Net Weight 5.8 Kg
    Gross Weight 8.0 Kg
    Container Information 20': 720, 40': 1,500, 40'H: 1,625
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Category Description Revision Size Download
    Datasheet PC711 Datahseet V1.3 785.6 KB
  • Order Code PSU FPIO FAN Side Venting
    PC71169 Option 2x USB2.0 +Audio(HD) 80mm(Side) Yes
