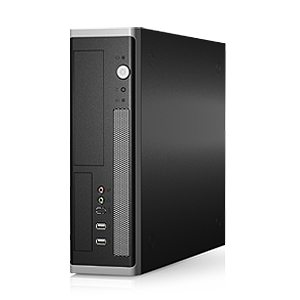

PC710 Series
Tool-less Slim Desktop/Tower PC Chassis
Featuring patented tool-less designs and desktop/Tower convertible, the PC710 is an ideal choice for tender business.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
  • Features & Benefits
  • Specification
  • Accessory
  • Download
  • Order Information
    • Supports the latest Intel platform thermal requirement
    • Patented tool-less drive cage for easy installation
    • Compatible with Chenbro SK family through 3.5” and 5.25” drive bays
    • Supports side-mounted 80mm exhausted Fans
    • Maximum security - Top cover latch, Intrusion switch, Kensington slot, Padlock loop
    • Supports TFX PSU
  • M/B Form Factor 12"x9.6"(micro-ATX)
    Dimensions (Dx Wx H) 395mm x 95mm x 325mm
    15.6" x 3.7" x 12.8"
    Drive Bay External 5.25"：1
    External 3.5"：1
    Internal 3.5"：1
    PSU Form Factor TFX
    Indicator 1 x Power Status
    1 x HDD Activity
    Front Button 1 x Power On/Off
    1 x System Reset
    2 x USB2.0 / USB3.0
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Padlock loop
    Intrusion switch (Option)
    Kensington Slot
    Cooling Fan 1x 80mm (Option)
    Expansion Slot 4, Low Profile
    Sheet Metal Material SECC
    Metal Thickness 0.8 mm
    Net Weight 5.8 Kg
    Gross Weight 8.0 Kg
    Container Information 20': 720
    40': 1500
    40'H: 1625
  • Category Part. No# Description Support
    Click Part. No# to view item picture
  • Category Description Revision Size Download
    Datasheet PC710 Datahseet V1.3 785.6 KB
  • Order Code PSU FPIO FAN Side Venting
    PC71031 Option USB2.0 x 2+ Audio(HD) 80mm(Side) Yes
