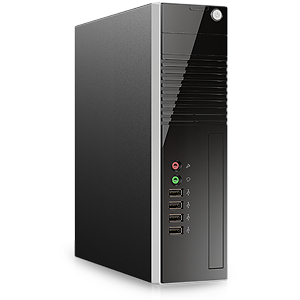

PC783 Series
Ultra Slim Tool-less mini-ITX Desktop/Tower PC Chassis
PC783 is a mini-ITX chassis with the latest Intel platform support. It features tool-less mechanical design and silent thermal solution. Therefore, it will be an ideal solution for office and space-sensitive applications.
PC783 Series
Compare
- Feature & Benefit
- Specification
- Download
- Accessory
- Order Information
-
- Supports the latest Intel Platform thermal requirement
- Supports 60mm front fan installation
- Removable drive cage for easy installation
- Advanced tool-less installation for side cover, 2.5" HDD/SSD, and slim ODD
- Supports 2x USB2.0 and 2x USB3.0 ports
- Security provision: Padlock loop, Kensington slot and intrusion switch
- Stylish rotatable logo pad(PC78339)
- Supports Flex ATX PSU
-
M/B Form Factor Mini-ITX Dimensions (Dx Wx H) 225mm x 75mm x 270mm
8.9" x 3.0" x 10.6"Drive Bay Slim ODD：1
Internal 2.5"：2
PSU Form Factor Flex ATX Indicator 1 x Power Status
1 x HDD ActivityFront Button 1 x Power On/Off
4 x USB2.0/USB3.0 (Option)
1 x Headphone Jack
1 x MIC Phone JackSystem Security Kensington Slot, Padlock Loop, Intrusion Switch (Option) Cooling Fan Front: 1 x 60mm (Option) Expansion Slot N/A Sheet Metal Material SGCC Metal Thickness 0.6mm Net Weight 2.6 Kg Gross Weight 3.3 Kg Container Information 20': 1,032, 40': 2,112, 40'H: 2,464 -
Category Description Revision Size Download Datasheet Datasheet_PC783 V1.3 2.0 MB
-

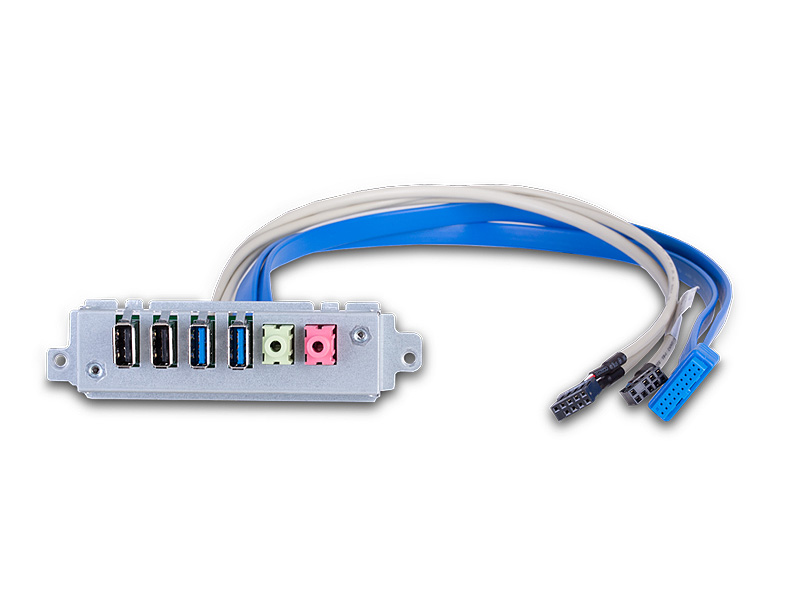

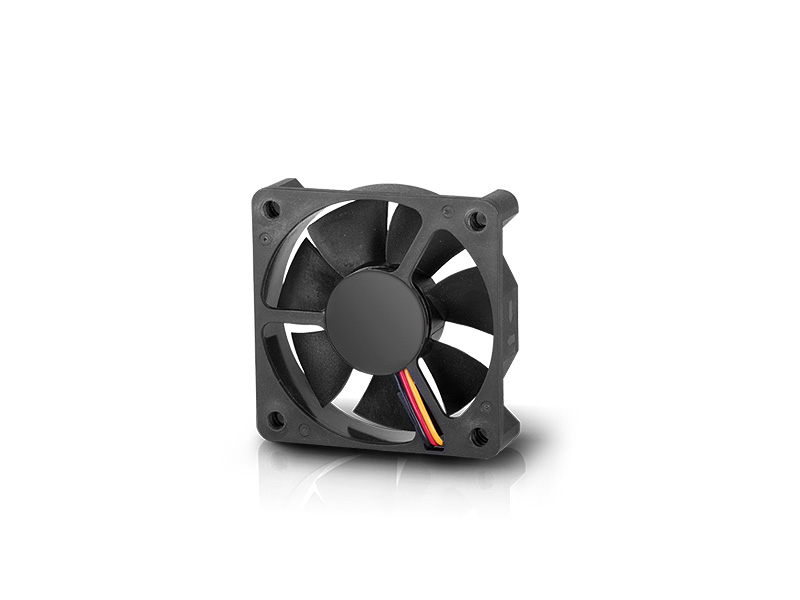

Category Part. No# Description Support Fan 30H060025-204 60mm, Sleeve, 3P3C, L500mm FPIO 83H801783-001 USB3.0 x 2+ USB2.0 x2 + Audio(HD), w/400mm cables FPIO 83H801783-002 USB2.0 x 4+ Audio(HD), w/400mm cables Click Part. No# to view item picture Support -
Order Code PSU FPIO FAN Side Venting 2nd HDD Cage PC78339 250W(Flex-ATX) USB2.0x4+Audio(HD) Option Yes N/A Part Category Part No. Qty. Description
