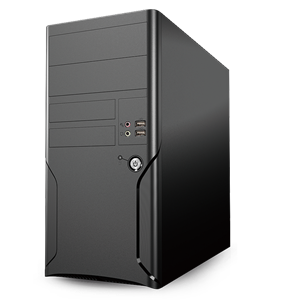

PC314 Series
Sturdy, Light uATX mini-Tower PC Chassis
PC314 is simple in use as it looks. Its deeper chassis depth allows effortless installation on motherboard and system components. It is also very flexible as it supports 3.5" x 3 and 2.5" x 1 HDDs. System integrator can easily assemble a fashionable green model and change its drive bay configuration without breaking their budget.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
  • Feature & Benefit
  • Specification
  • Accessory
  • Download
  • Order Information
    • Supports the latest Intel platform thermal requirement
    • Optimized usage of 0.8mm and 0.5mm metal sheets
    • Stiffened PSU supporting on rear window
    • Supports padlock loop, Kensington slot and intrusion switch
    • Enhanced air flow with hollow metal front panel
    • Supports bottom-mounted one 3.5" and one 2.5" HDD bays
    • Deeper internal space for easy assembly and thermal performance
    • Reusable bay covers for flexible drive bay allocation
    • Supports PS/2 PSU
  • M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 366 x 175 x 360 (mm)
    14.4" x 6.9" x 14.2"
    Drive Bay External 5.25"：2
    External 3.5"：2
    Internal 3.5"：3
    Internal 2.5"：1
    PSU Form Factor PS/2
    Indicator 1 x Power Status
    1 x HDD Activity
    Front Button 1 x Power On/Off
    2 x USB2.0 / USB3.0 (Option)
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Kensington Slot, Padlock Loop, Intrusion Switch (Option)
    Cooling Fan Front: 1 x 80mm or 1 x 92mm
    Rear: 1 x 80mm or 1 x 92mm
    Expansion Slot 4 x Full Height
    Sheet Metal Material SGCC
    Metal Thickness 0.5mm & 0.8mm
    Net Weight 3.3kg
    Gross Weight 4.4kg
    Container Information 20': 508
    40': 1,040
    40'H: 1,150
  • Category Part. No# Description Support
    Fan

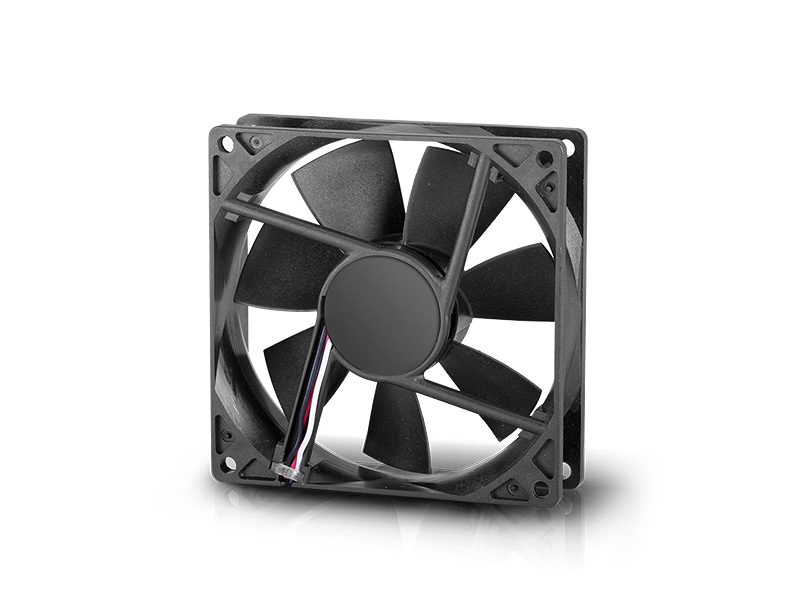

    83H301314-001    		 Fan, 92mm, 3P3C, Sleeve, w/mounting screws
    FPIO

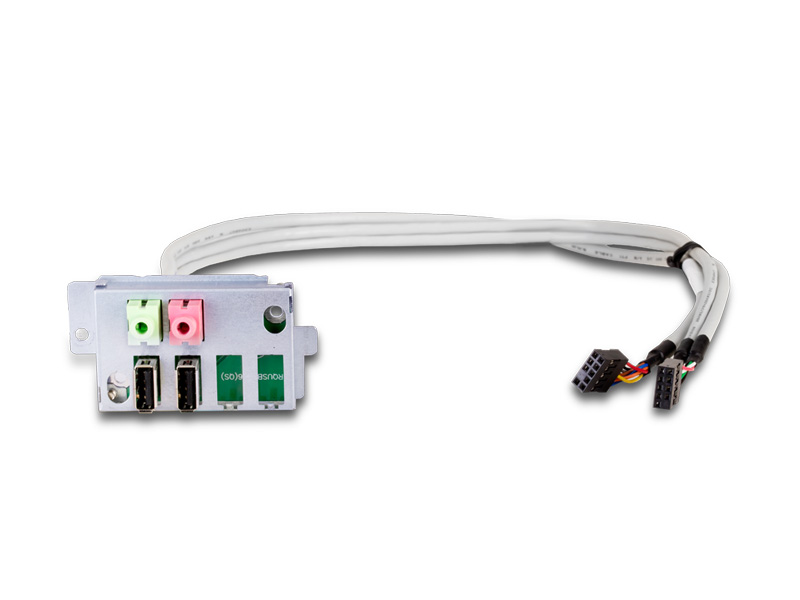

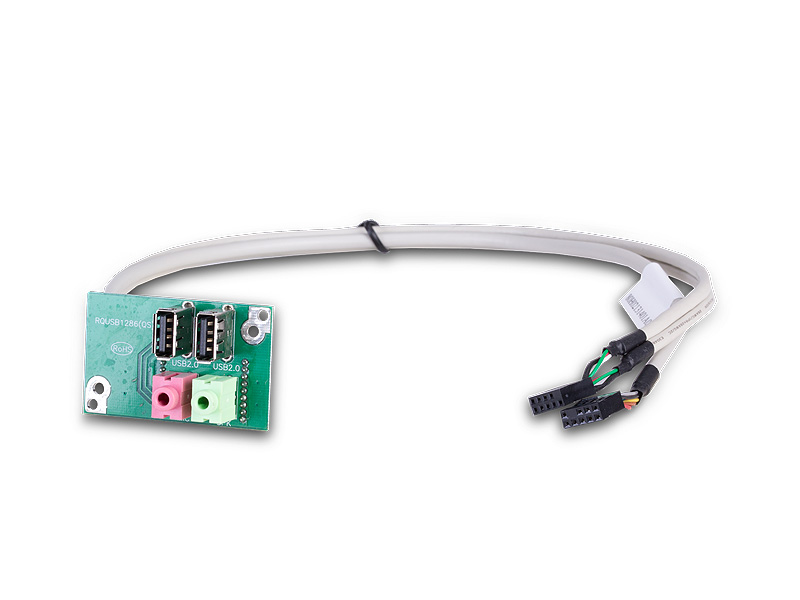

    83H801314-001    		 FPIO, 2x USB2.0+AUDIO(HD)
    FPIO
    83H801314-002    		 FPIO, 2x USB2.0+AUDIO(HD),w/Bracket
    FPIO

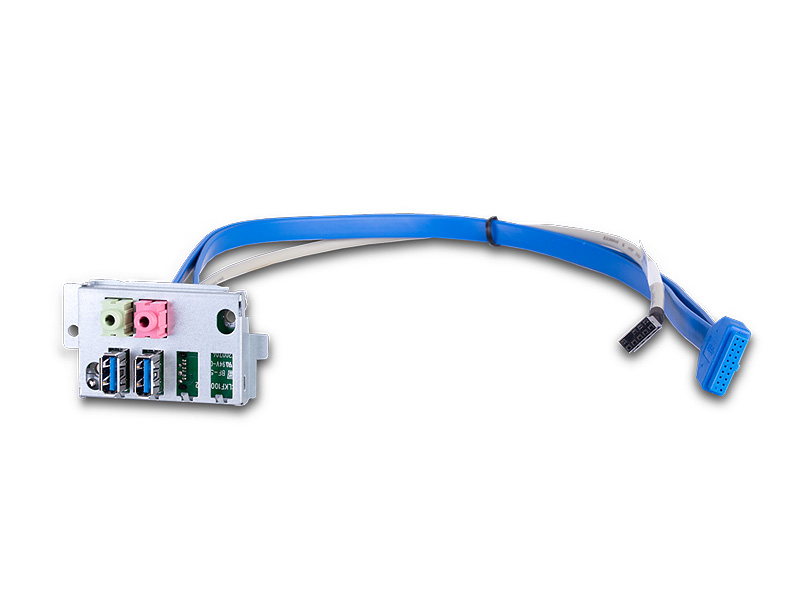

    83H801314-003    		 FPIO, 2x USB3.0+ Audio(HD), w/Bracket, For PC314
    HDD Cage

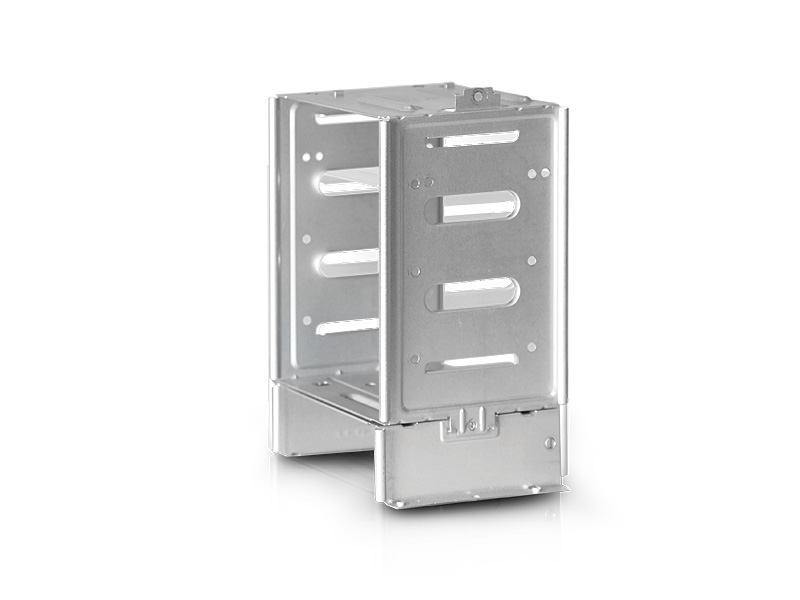

    83H181314-001    		 HDD Cage, 3x3.5", Internal, For PC314xx
    Click Part. No# to view item picture
  • Category Description Revision Size Download
    Datasheet PC314 Datahseet V1.2 4.1 MB
  • Order Code PSU FPIO FAN Side Venting 2nd HDD Cage
    PC31439 Option USB2.0x2+Audio(HD) Option Yes Option
    PC31469 Option USB2.0x2+Audio(HD) Option Yes Option
